Colder Products

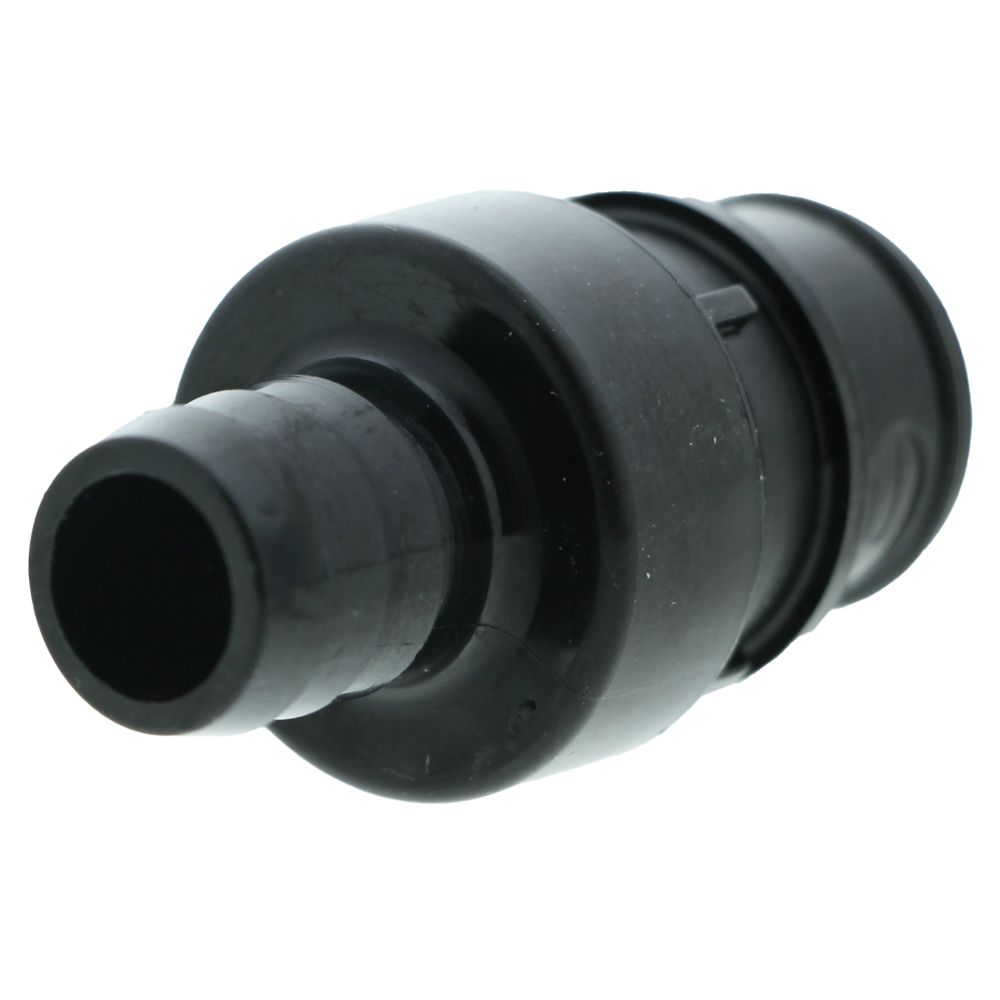

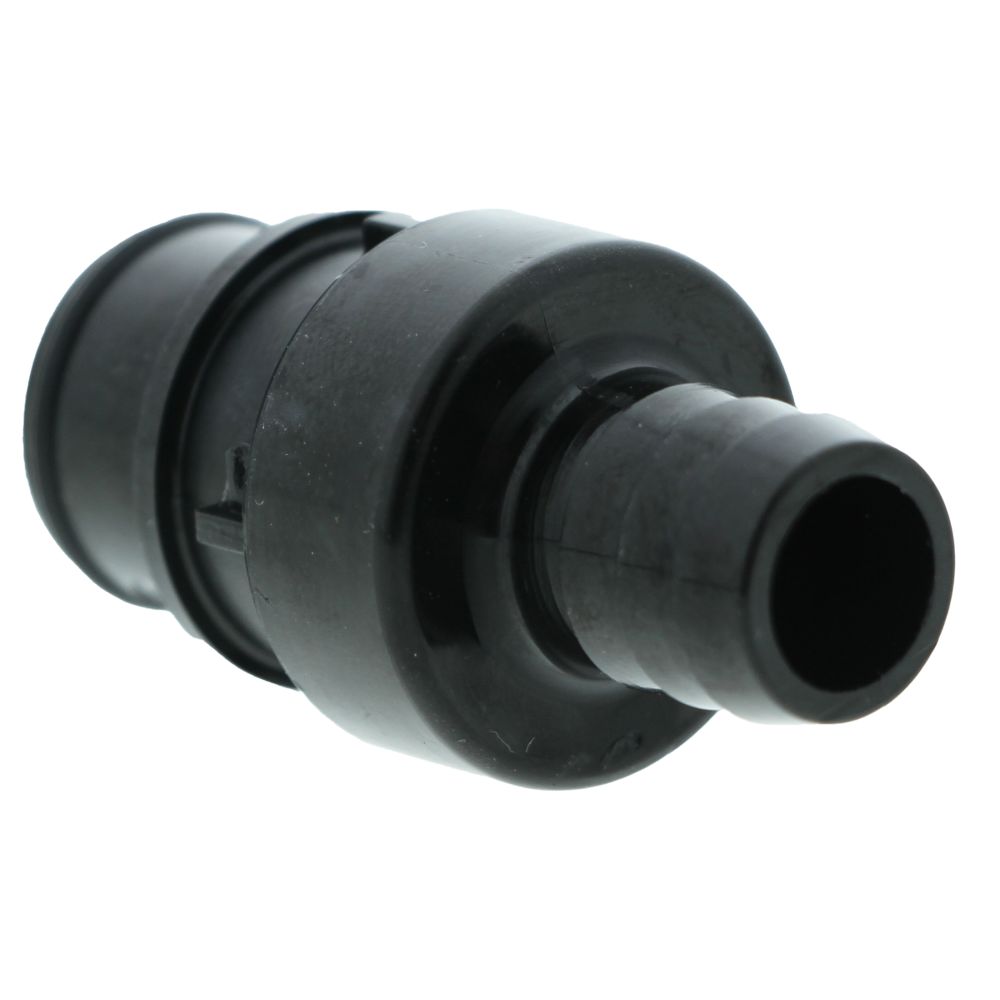

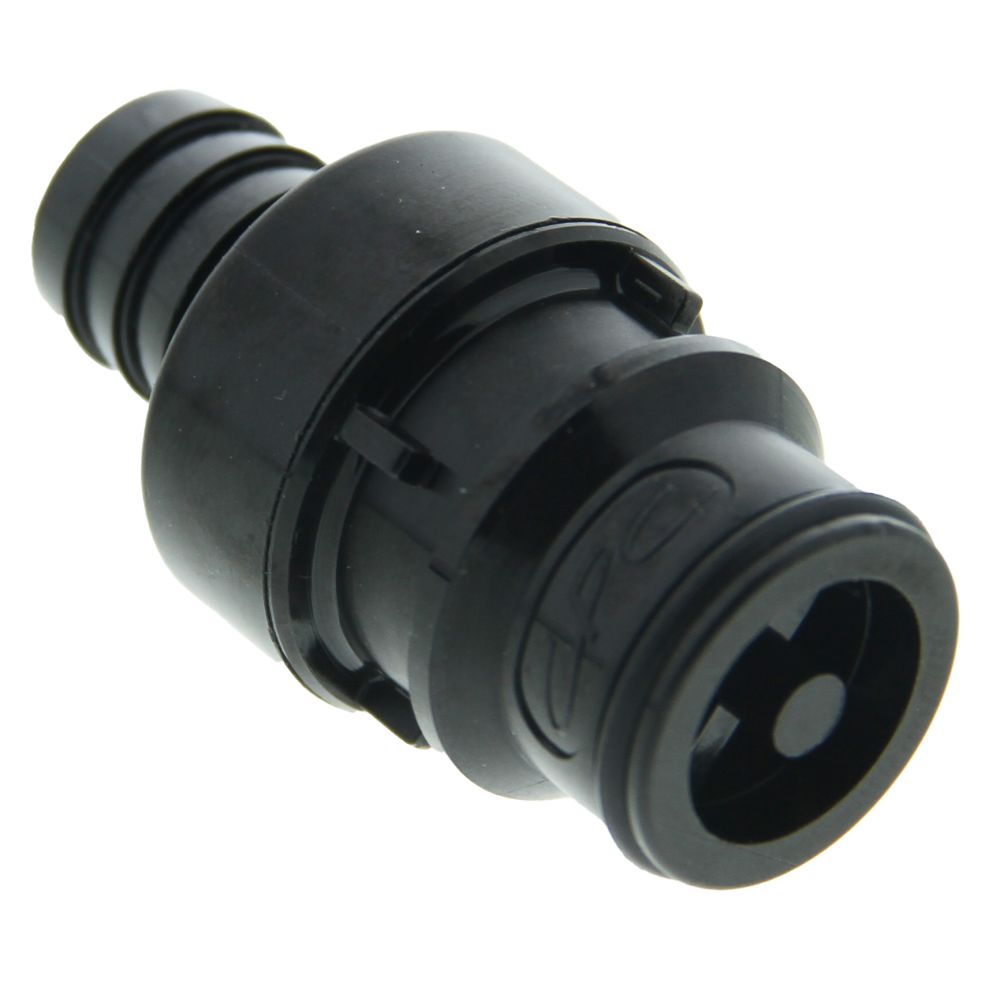

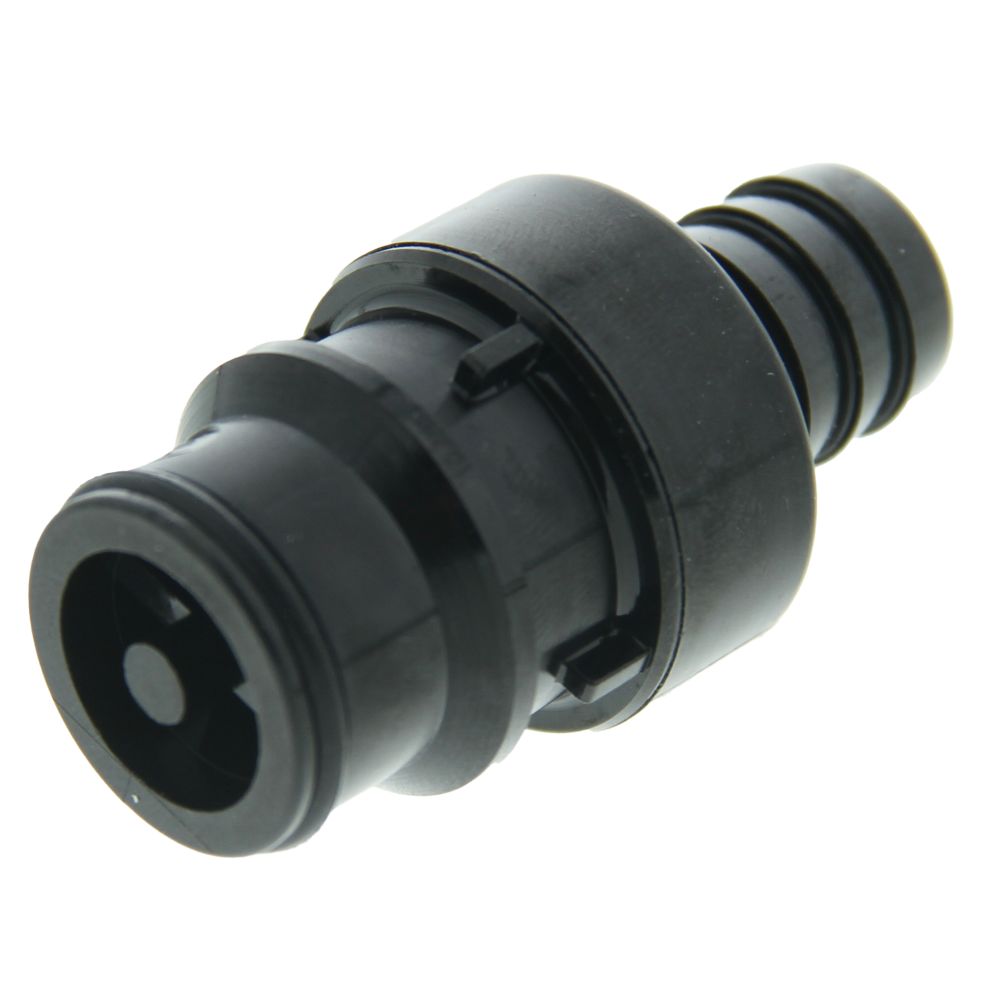

HFC22857 In-Line Hose Barb Coupling Insert 1/2 ID Barb

Part Number: HFC22857

In Stock

out of stock

In Stock

$7.37

The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Material Finish: Molded Gery
  • Color: Black
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 83100) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Barb Size

1/2" ID

Body Material

UV-Resistant Polysulfone

External Springs And Pin

316 Stainless Steel

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

EPDM

Series

HFC57

Spring

316 Stainless Steel

Valve Type

Non-Valved

Color / Finish

Black, Gray

Type

Coupling Insert


HFC22857
