Colder Products

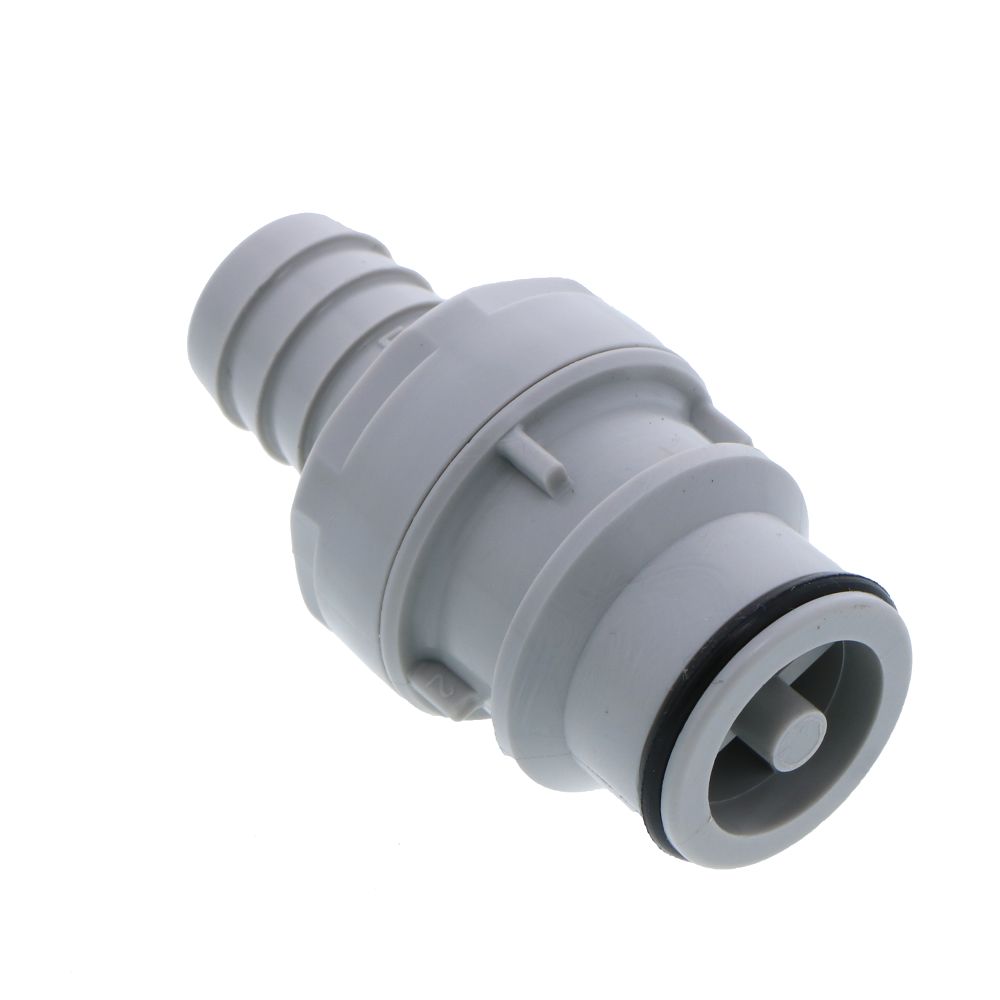

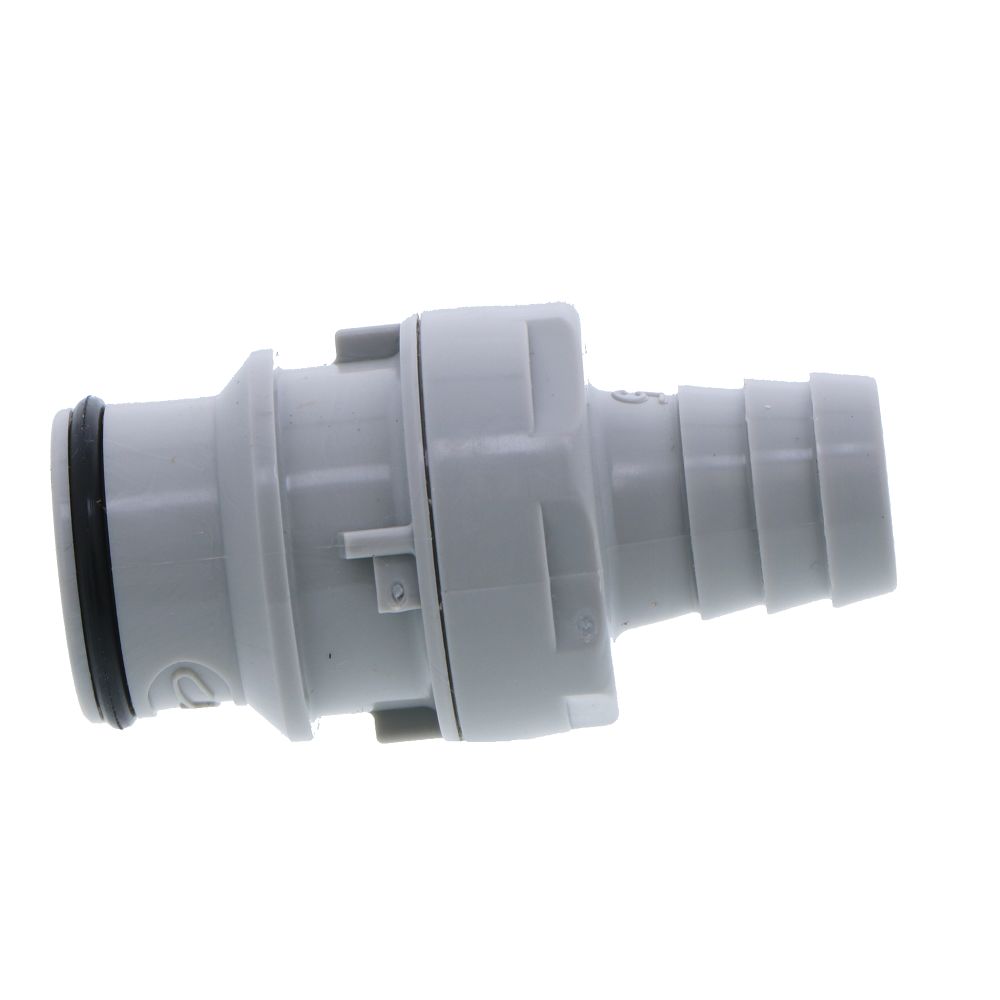

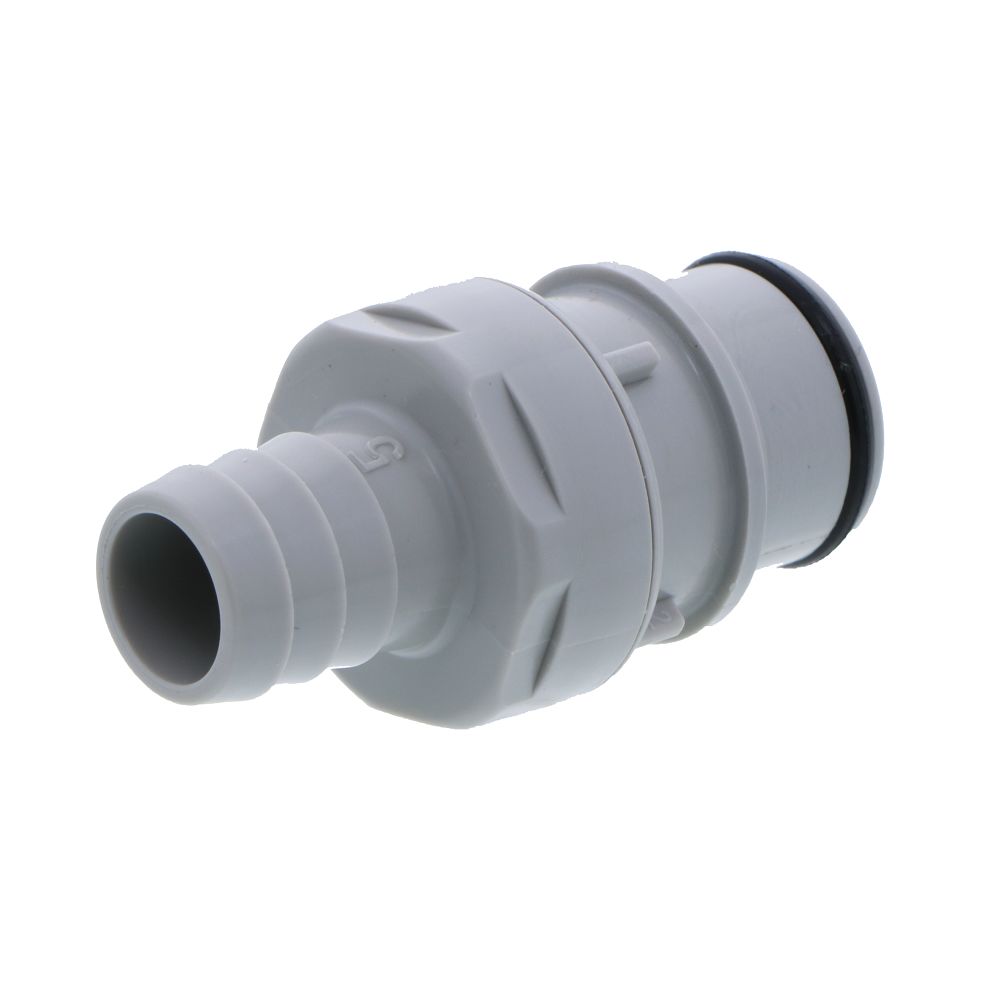

HFC22812 In-Line Hose Barb Coupling Insert 1/2 ID Barb

Part Number: HFC22812

In Stock

out of stock

In Stock

$4.27

The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.
Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units

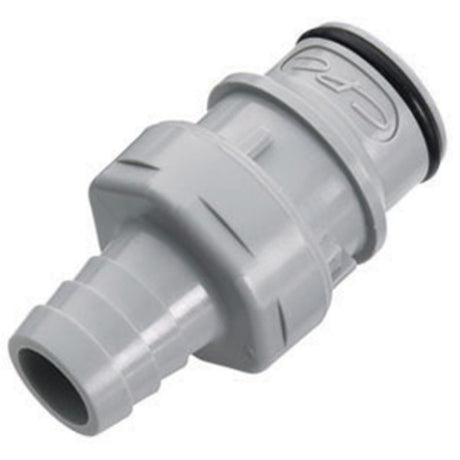

  • NSF Listed Version (Part # 61300) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.1

Details

Series

HFC12

Max Temp (°F)

160

Max Pressure (Psi)

60

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Barb Size

1/2" ID

Application

Water

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray

Mounting Options

Free Floating

Origin

USA

Seal Material

EPDM

Valve Type

Non-Valved


HFC22812




The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.
Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (Part # 61300) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.1

Details

Series

HFC12

Max Temp (°F)

160

Max Pressure (Psi)

60

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Barb Size

1/2" ID

Application

Water

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray

Mounting Options

Free Floating

Origin

USA

Seal Material

EPDM

Valve Type

Non-Valved
