Colder Products

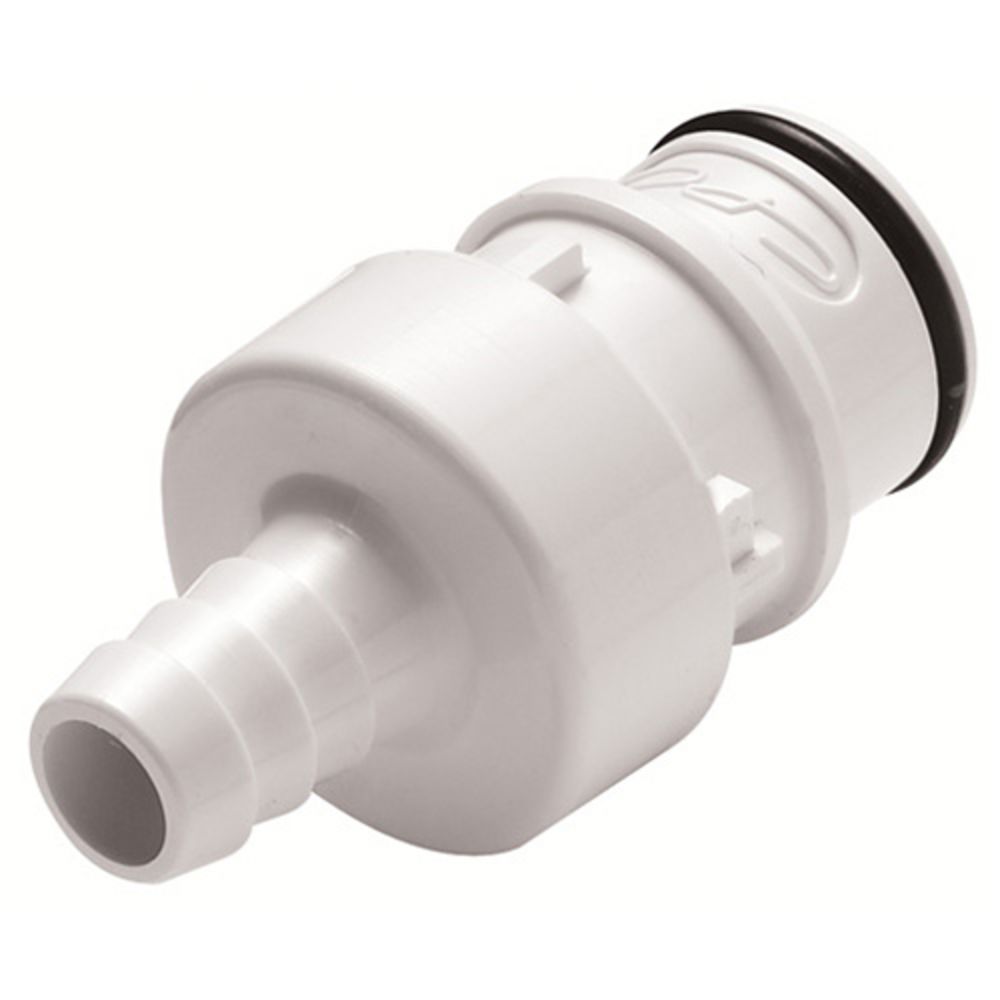

HFC221235 In-Line Hose Barb Coupling Insert 3/4 ID Barb

Part Number: HFC221235

In Stock

out of stock

In Stock

$6.54

The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications
  • Material: Polysulfone
  • Material Finish:Moleded Black
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 89100) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Barb Size

3/4" ID

Body Material

Polysulfone

External Springs And Pin

316 Stainless Steel

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

EPDM

Series

HFC35

Spring

316 Stainless Steel

Valve Type

Non-Valved

Color / Finish

White, Black

Type

Coupling Insert


HFC221235




The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications
  • Material: Polysulfone
  • Material Finish:Moleded Black
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 89100) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Barb Size

3/4" ID

Body Material

Polysulfone

External Springs And Pin

316 Stainless Steel

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

EPDM

Series

HFC35

Spring

316 Stainless Steel

Valve Type

Non-Valved

Color / Finish

White, Black

Type

Coupling Insert

Documentation
HFC221235
