Colder Products

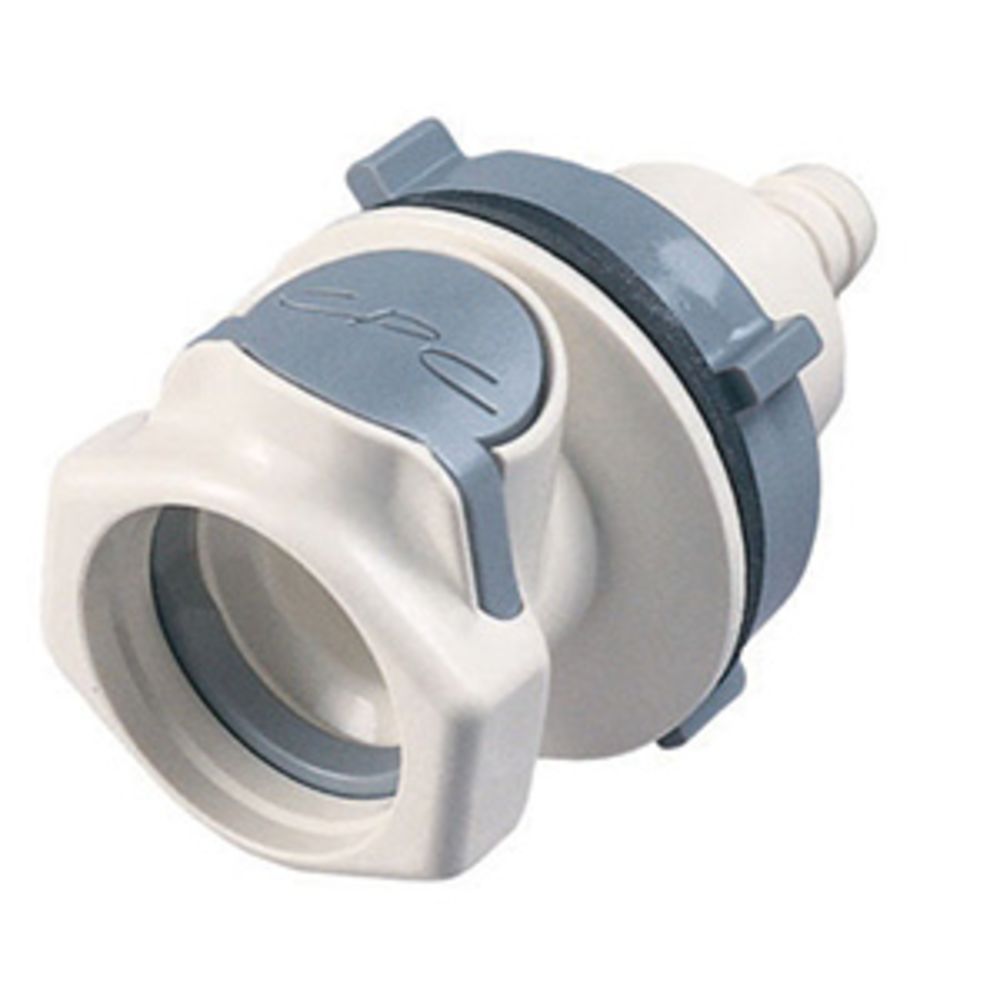

HFC16835 Panel Mount Hose Barb Coupling Body 1/2 ID Barb

Part Number: HFC16835

In Stock

out of stock

In Stock

$14.42


The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Material Finish:Moleded Grey
  • Color: Grey
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 86500) Available Upon Request


Details

Series

HFC35

Barb Size

1/2"

Bag Quantity

10 units

Body Material

Polysulfone

Color / Finish

White, Molded Gray

Mounting Options

Panel Mount

Operating Pressure Range

Vacuum to 125 psi, 8.6 bar

Operating Temperature Range

-40°F to 280°F (-40°C to 138°C)

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Non-Valved

External Springs And Pin

316 Stainless Steel


HFC16835





The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Material Finish:Moleded Grey
  • Color: Grey
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 86500) Available Upon Request

Details

Series

HFC35

Barb Size

1/2"

Bag Quantity

10 units

Body Material

Polysulfone

Color / Finish

White, Molded Gray

Mounting Options

Panel Mount

Operating Pressure Range

Vacuum to 125 psi, 8.6 bar

Operating Temperature Range

-40°F to 280°F (-40°C to 138°C)

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Non-Valved

External Springs And Pin

316 Stainless Steel

Documentation
HFC16835
