Colder Products

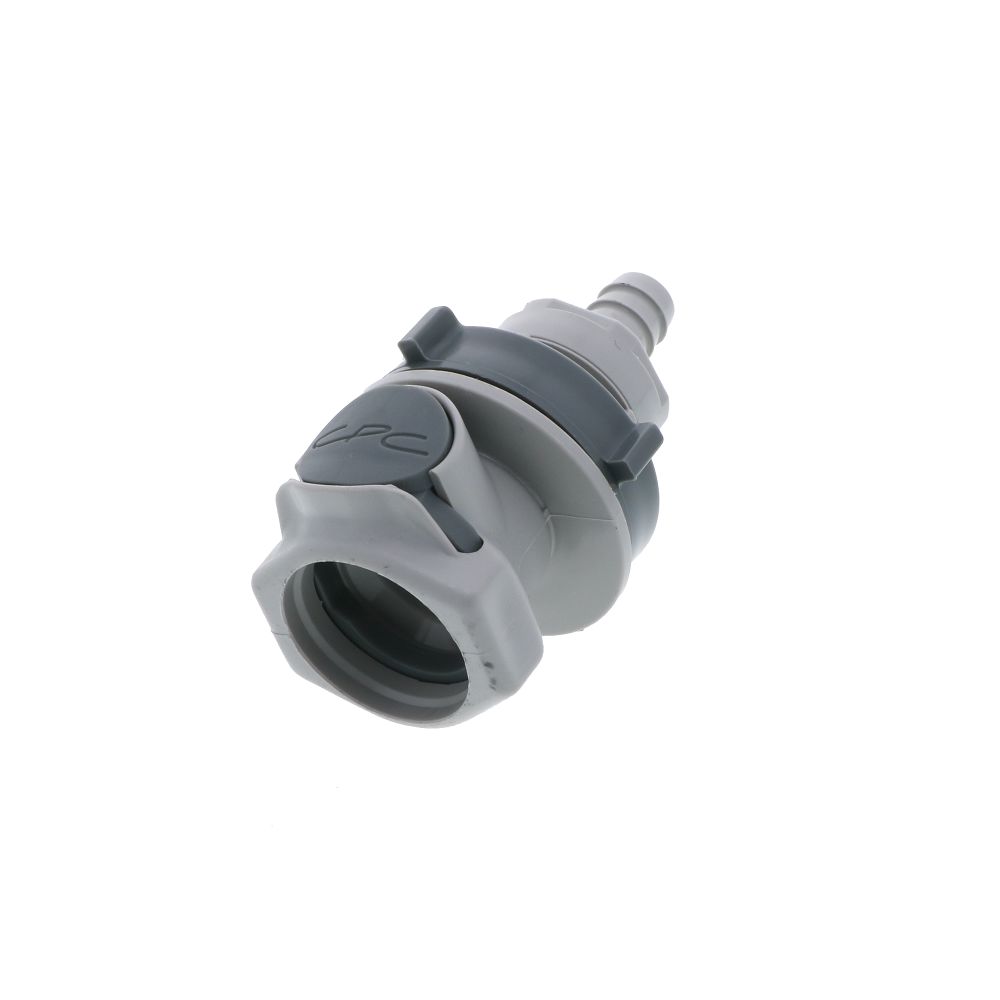

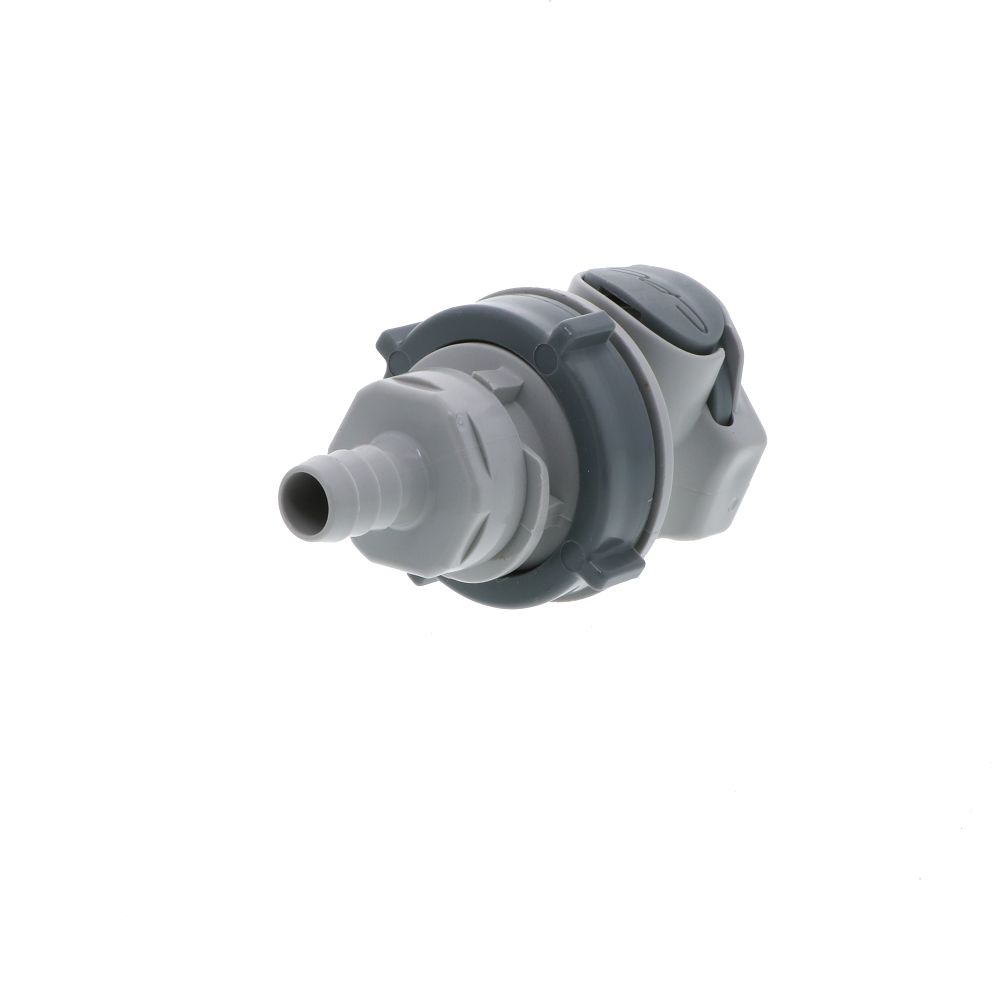

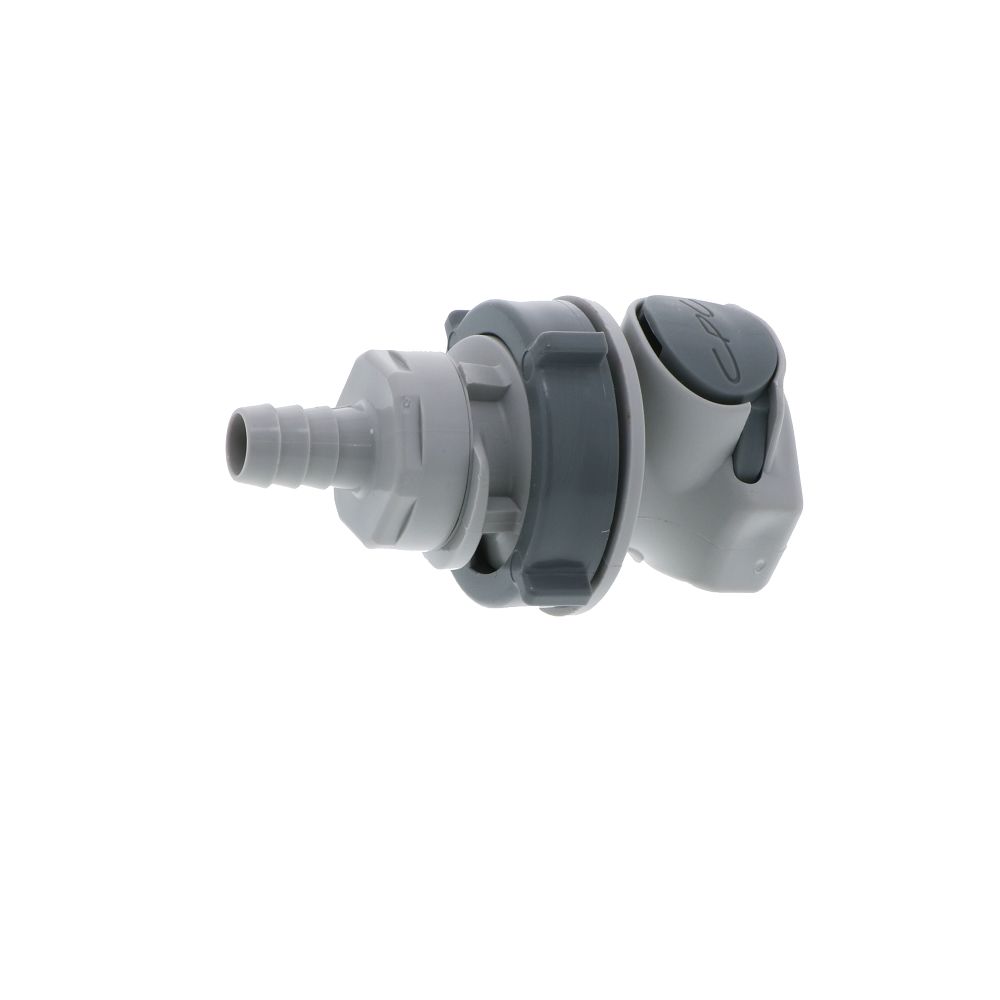

HFC16612 Panel Mount Hose Barb Coupling Body 3/8 ID Barb

Part Number: HFC16612

In Stock

out of stock

In Stock

$11.97


The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 63800) Available Upon Request


Details

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray

Mounting Options

Panel Mount

Operating Pressure Range

60 psi

Operating Temperature Range

32ºF to 160ºF

Origin

USA

Seal Material

EPDM

Size

3/8"

Type

Coupler

Valve Type

Non-Valved

Thumb Latch

Polypropylene


HFC16612





The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 63800) Available Upon Request

Details

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray

Mounting Options

Panel Mount

Operating Pressure Range

60 psi

Operating Temperature Range

32ºF to 160ºF

Origin

USA

Seal Material

EPDM

Size

3/8"

Type

Coupler

Valve Type

Non-Valved

Thumb Latch

Polypropylene

Documentation
HFC16612
