Colder Products

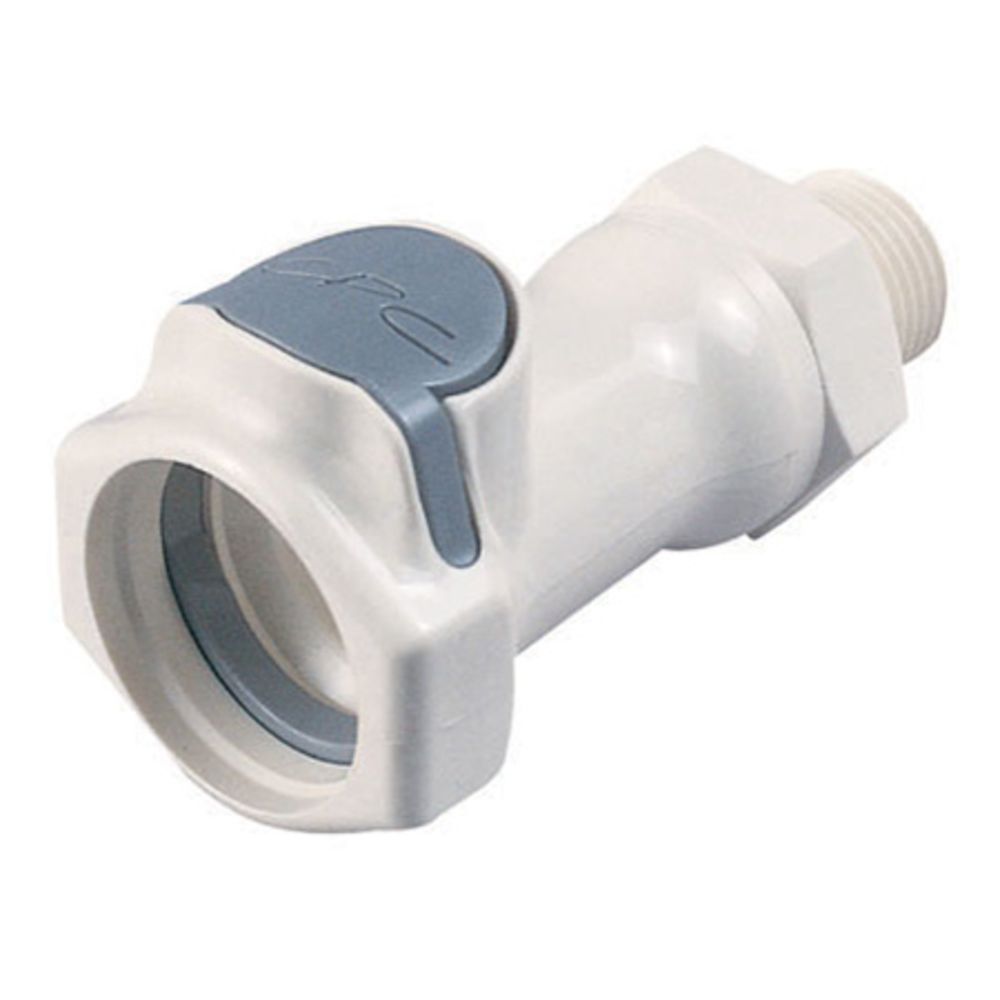

HFC10635 Male Thread Coupling Body 3/8 NPT

Part Number: HFC10635

In Stock

out of stock

In Stock

$13.15

The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Male NPT Thread
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 80100) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Body Material

Polysulfone

External Springs And Pin

316 Stainless Steel

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

EPDM

Series

HFC35

Size

3/8"

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

White

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Body


HFC10635




The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Male NPT Thread
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 80100) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Body Material

Polysulfone

External Springs And Pin

316 Stainless Steel

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

EPDM

Series

HFC35

Size

3/8"

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

White

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Body

Documentation
HFC10635
Reviews
