Colder Products

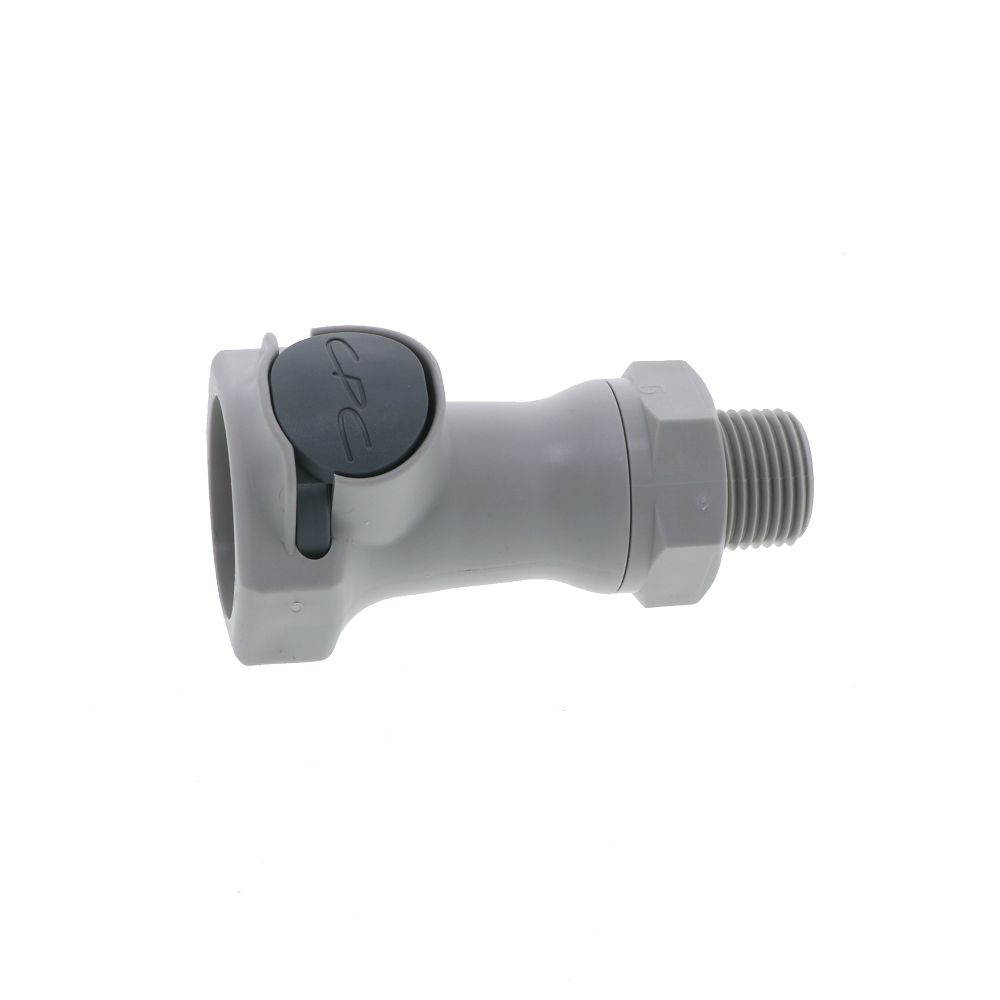

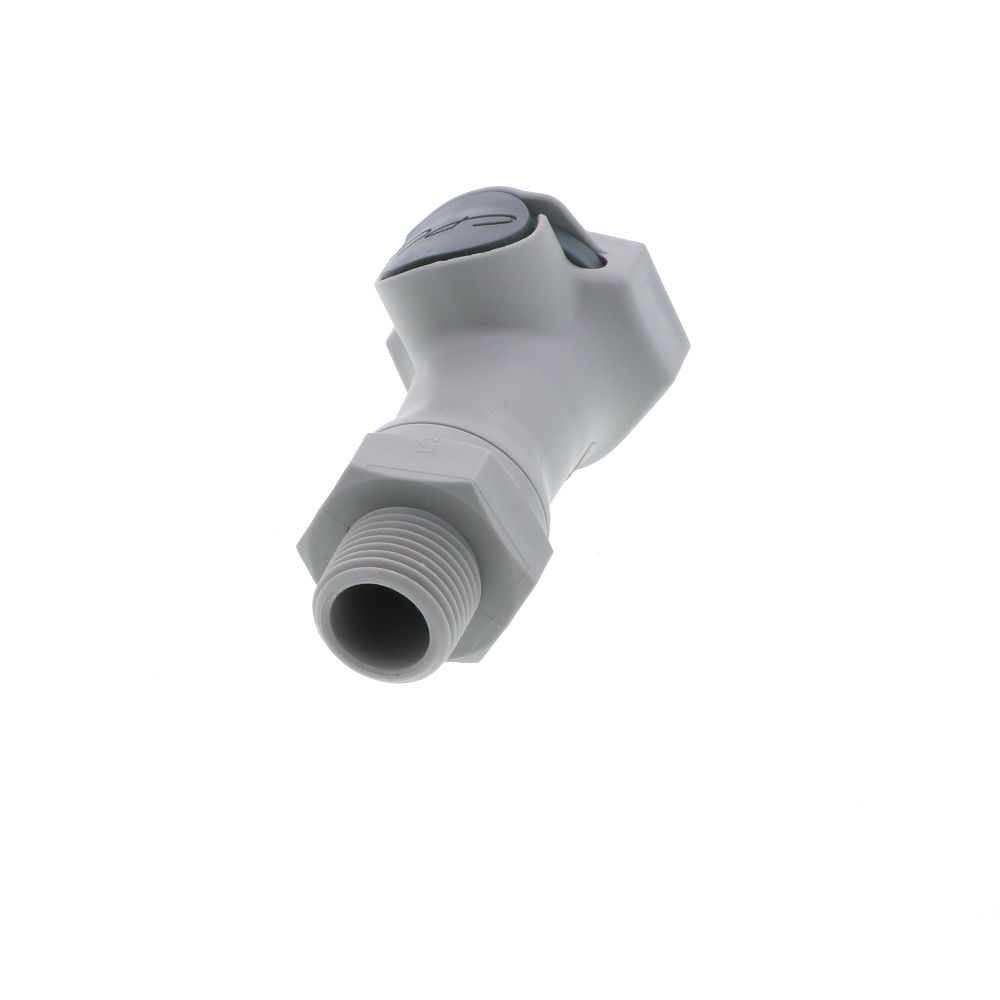

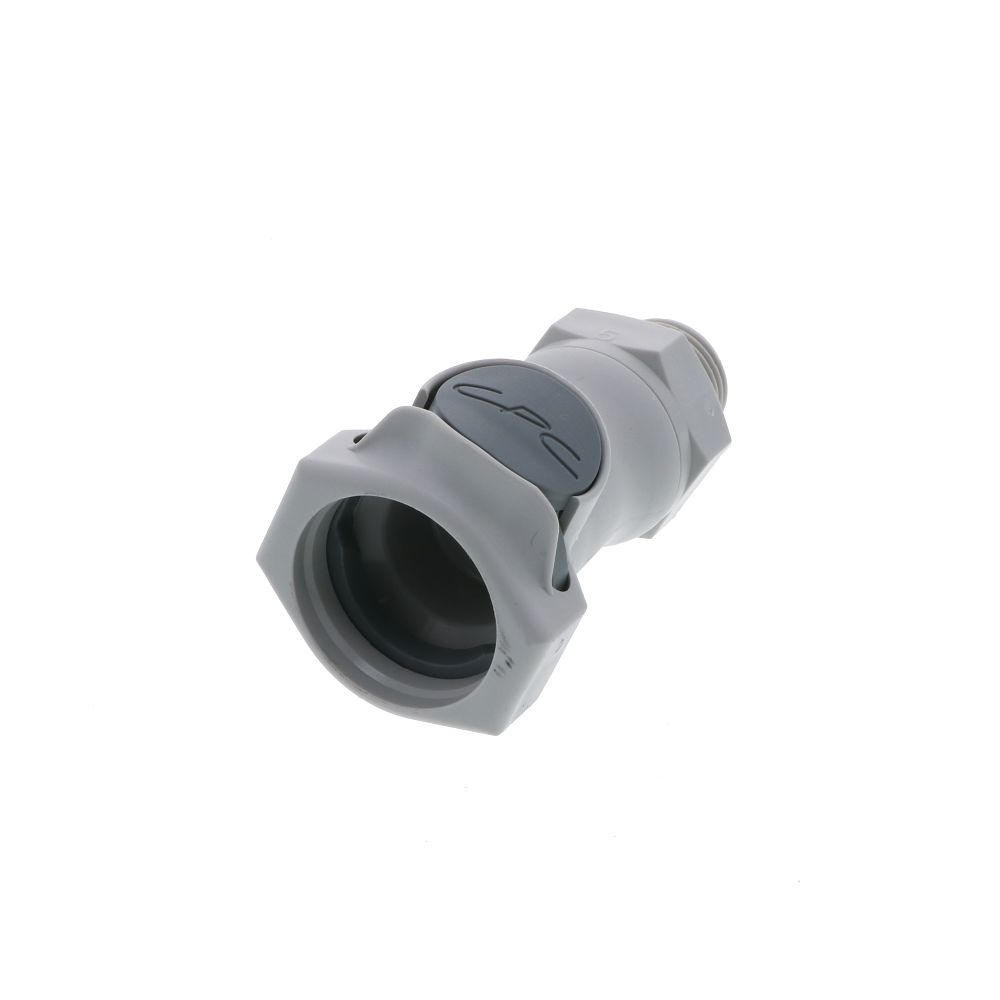

HFC10612 Male Thread Coupling Body 3/8 NPT

Part Number: HFC10612

In Stock

out of stock

In Stock

$9.45

The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: NPT threads
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units




Weight & Dimensions

Height (inches)

1.25

Length (inches)

2.5

Weight (lbs)

0.000625

Width (inches)

1.25

Details

Application

Water

Body Material

Polypropylene

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

60

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

HFC12

Size

3/8"

Valve Type

Non-Valved

Color / Finish

Gray

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Body


HFC10612




The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: NPT threads
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units



Weight & Dimensions

Height (inches)

1.25

Length (inches)

2.5

Weight (lbs)

0.000625

Width (inches)

1.25

Details

Application

Water

Body Material

Polypropylene

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

60

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

HFC12

Size

3/8"

Valve Type

Non-Valved

Color / Finish

Gray

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Body
