Colder Products

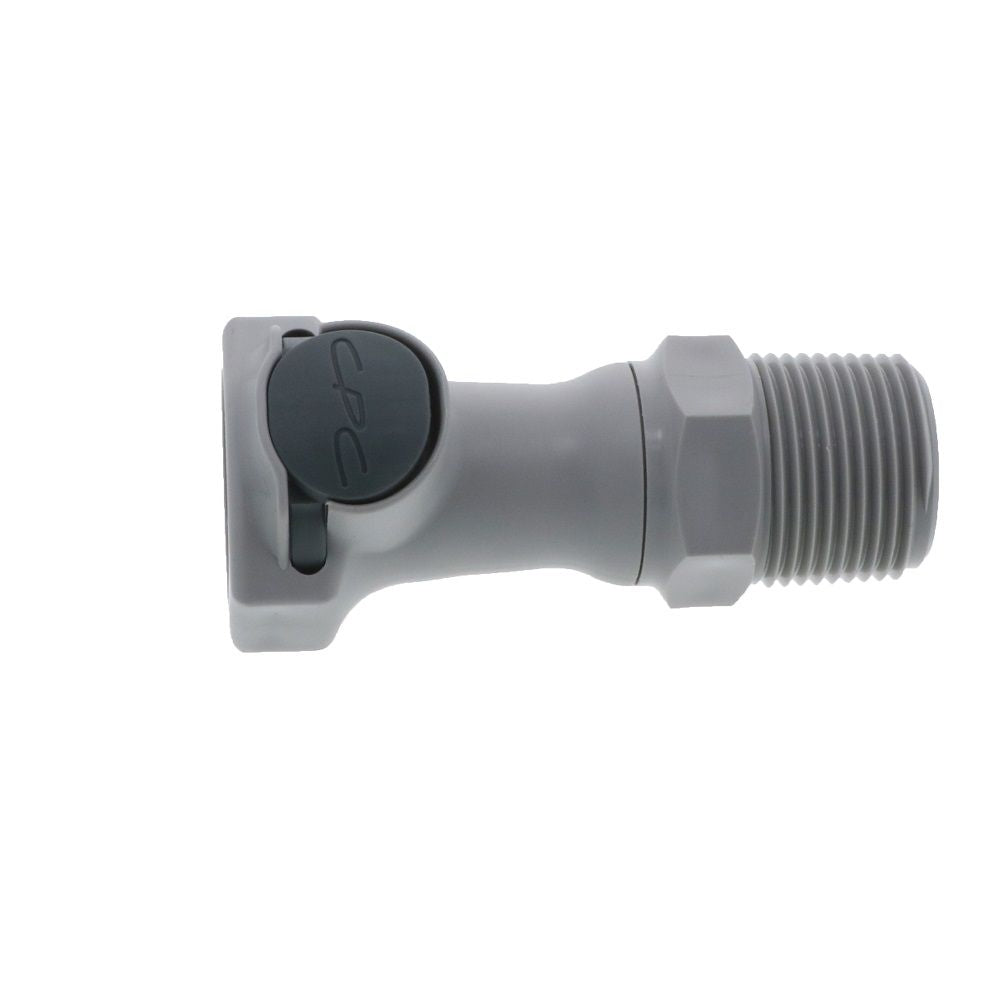

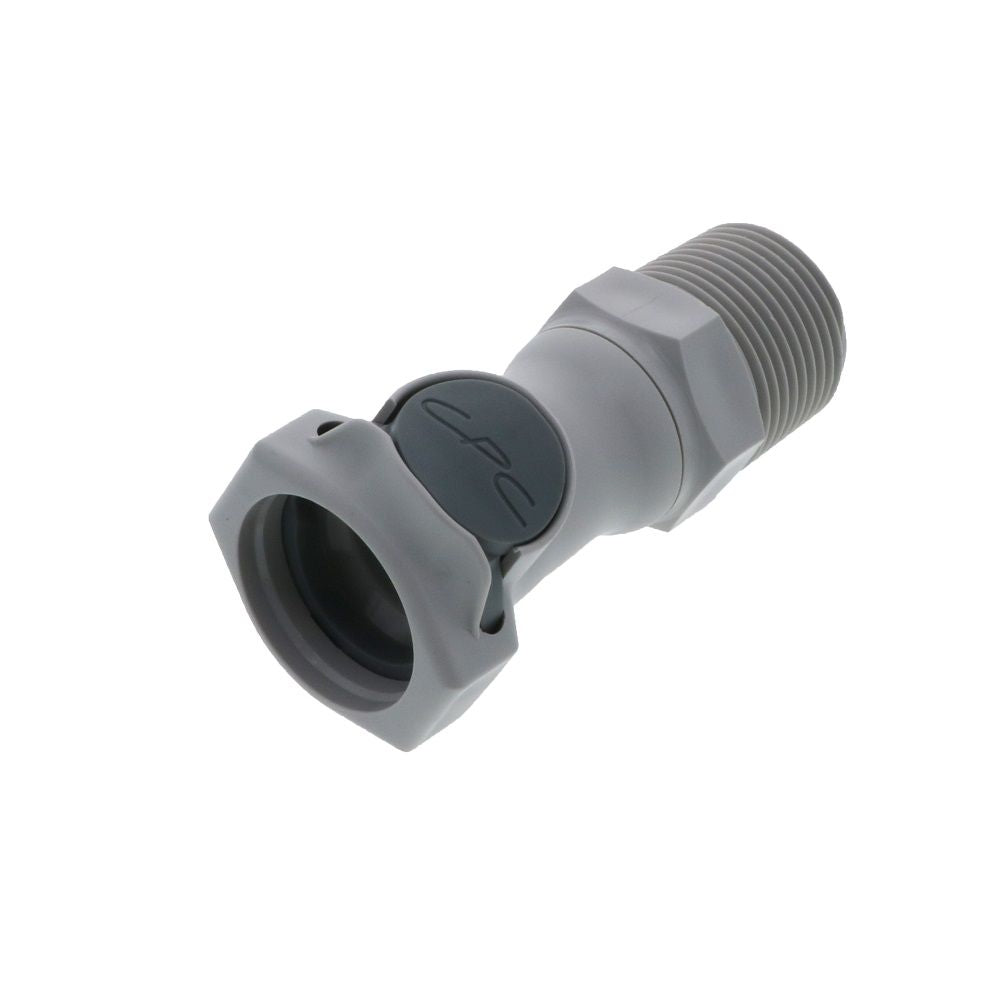

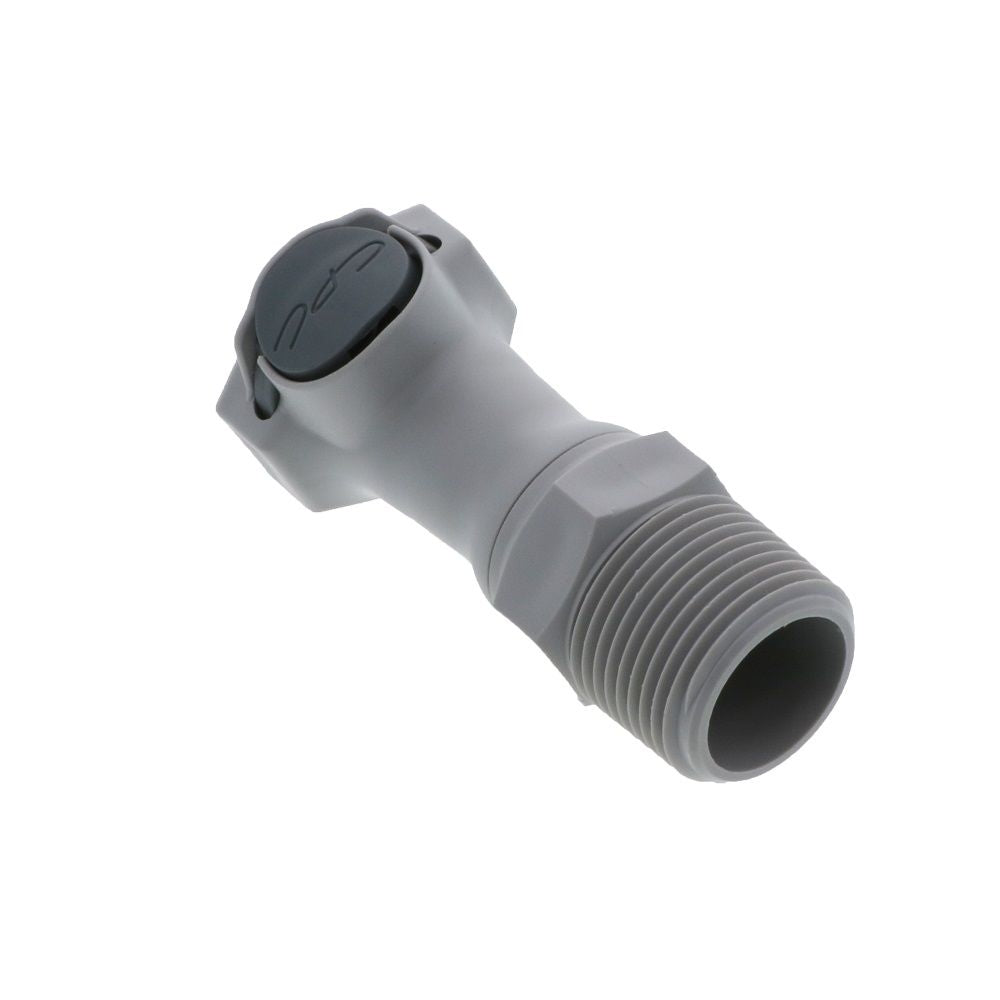

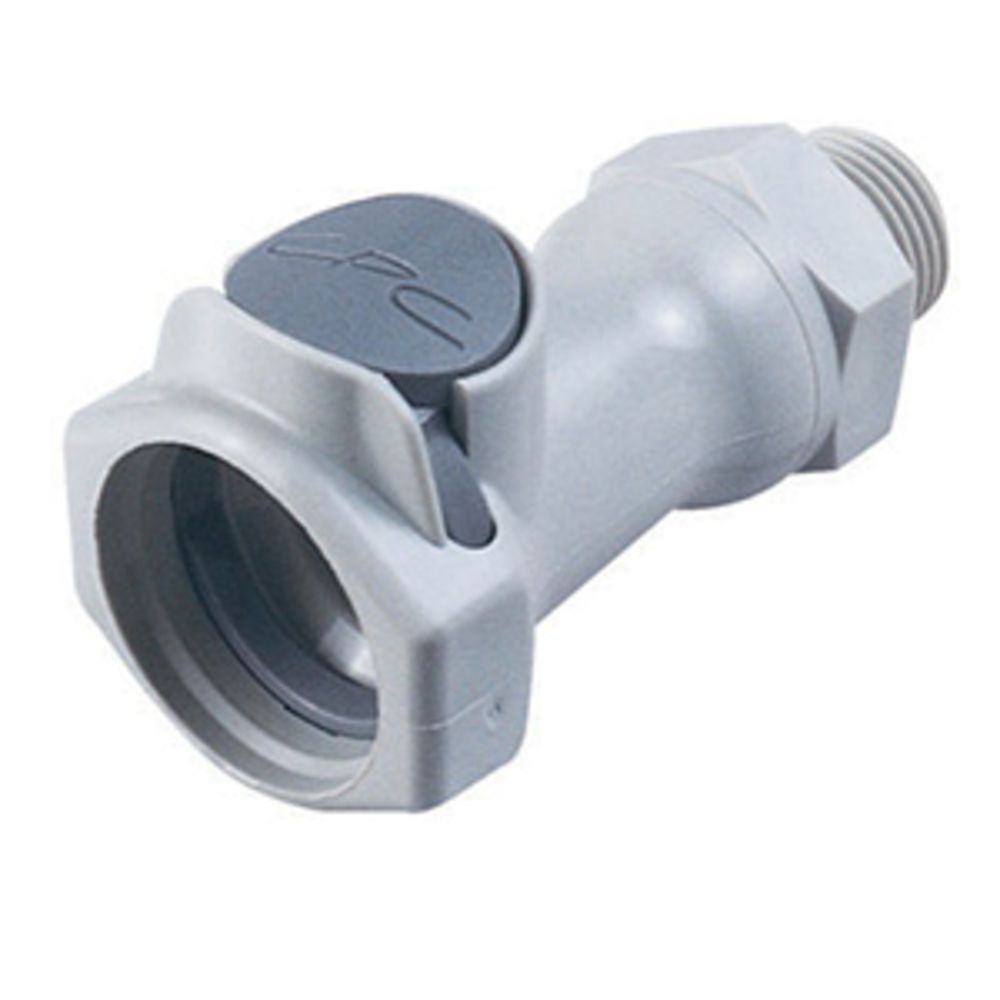

HFC101212 Male Thread Coupling Body 3/4 NPT

Part Number: HFC101212

In Stock

out of stock

In Stock

$9.41

The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

 Specifications
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: NPT threads
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units




Weight & Dimensions

Weight (lbs)

0.1

Details

Series

HFC12

Max Temp (°F)

160

Max Pressure (Psi)

60

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray

Mounting Options

Thread

Origin

USA

Seal Material

EPDM

Size

3/4"

Spring

316 Stainless Steel

Valve Type

Non-Valved

Thumb Latch

Polypropylene

Inlet/Outlet Connection

3/4" MPT


HFC101212




The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

 Specifications
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: NPT threads
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units



Weight & Dimensions

Weight (lbs)

0.1

Details

Series

HFC12

Max Temp (°F)

160

Max Pressure (Psi)

60

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray

Mounting Options

Thread

Origin

USA

Seal Material

EPDM

Size

3/4"

Spring

316 Stainless Steel

Valve Type

Non-Valved

Thumb Latch

Polypropylene

Inlet/Outlet Connection

3/4" MPT

Documentation
HFC101212

Reviews
