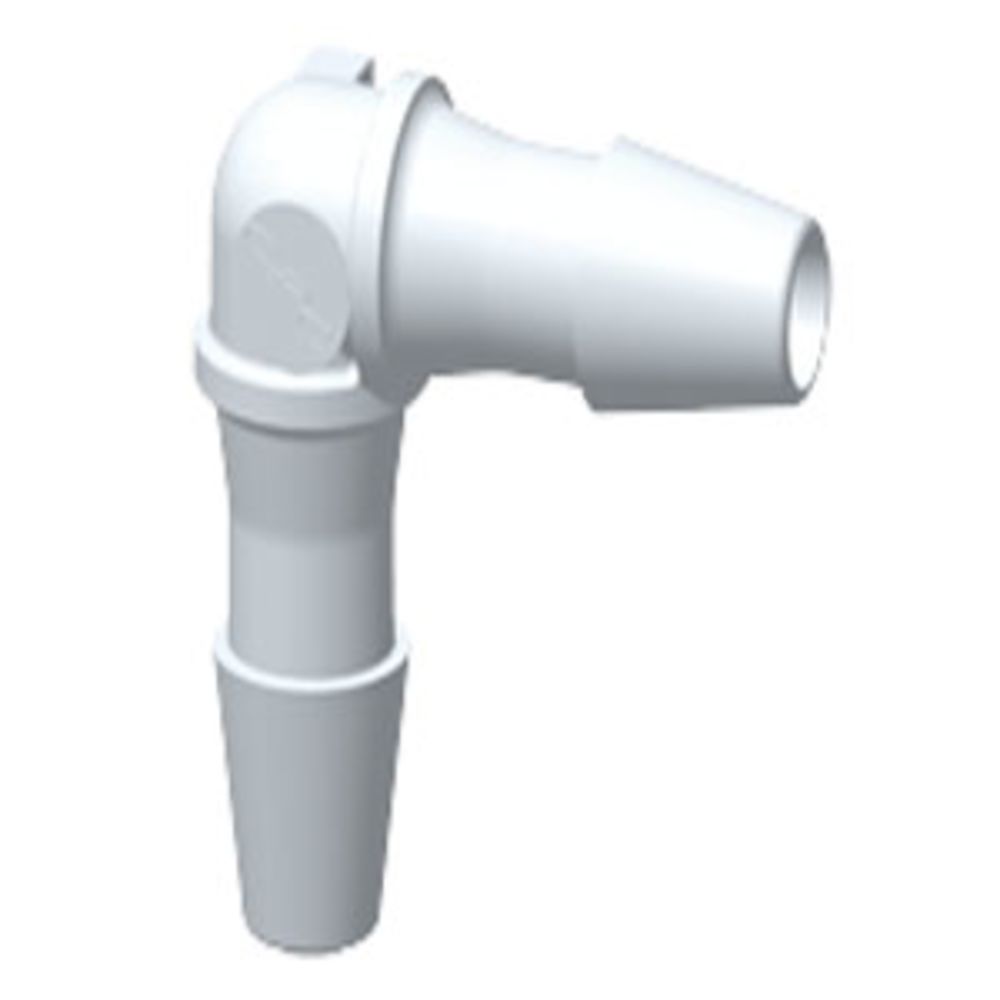

HE470 Elbow Fitting Natural PVDF 1/8 HB x 1/8 HB

Colder FitQuik Elbow tube to tube fittings allow you to connect two small flow applications with one connector. These fittings are precision molded and feature precise hose barbs to ensure the right fit and eliminate tubing leak points for applications such as medical devices, analytical instrumentation and air-driven equipment.

Specifications:

Material: PVDF
Material Finish: Natural
Color: Natural
Valve Option: Non-Valved
Temperature Range: -10°F to 150°F (-23°C to 66°C)

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Air
Barb Size	1/8" ID
Body Material	PVDF (Kynar)
Max Temp (°F)	150
Min Temp (°F)	-10
Mounting Options	Free Floating
Nsf Version	No
Series	FitQuik
Shape	90
Valve Type	Non-Valved
Color / Finish	Natural
Sub-Type	Union Elbow
Type	Elbow

Product Details
Application	Water Air
Barb Size	1/8" ID
Body Material	PVDF (Kynar)
Max Temp (°F)	150
Min Temp (°F)	-10
Mounting Options	Free Floating
Nsf Version	No
Series	FitQuik
Shape	90
Valve Type	Non-Valved
Color / Finish	Natural
Sub-Type	Union Elbow
Type	Elbow

Product Details
Application	Water Air
Barb Size	1/8" ID
Body Material	PVDF (Kynar)
Max Temp (°F)	150
Min Temp (°F)	-10
Mounting Options	Free Floating
Nsf Version	No
Series	FitQuik
Shape	90
Valve Type	Non-Valved
Color / Finish	Natural
Sub-Type	Union Elbow
Type	Elbow

HE470 Elbow Fitting Natural PVDF 1/8 HB x 1/8 HB Manual
