Harmsco

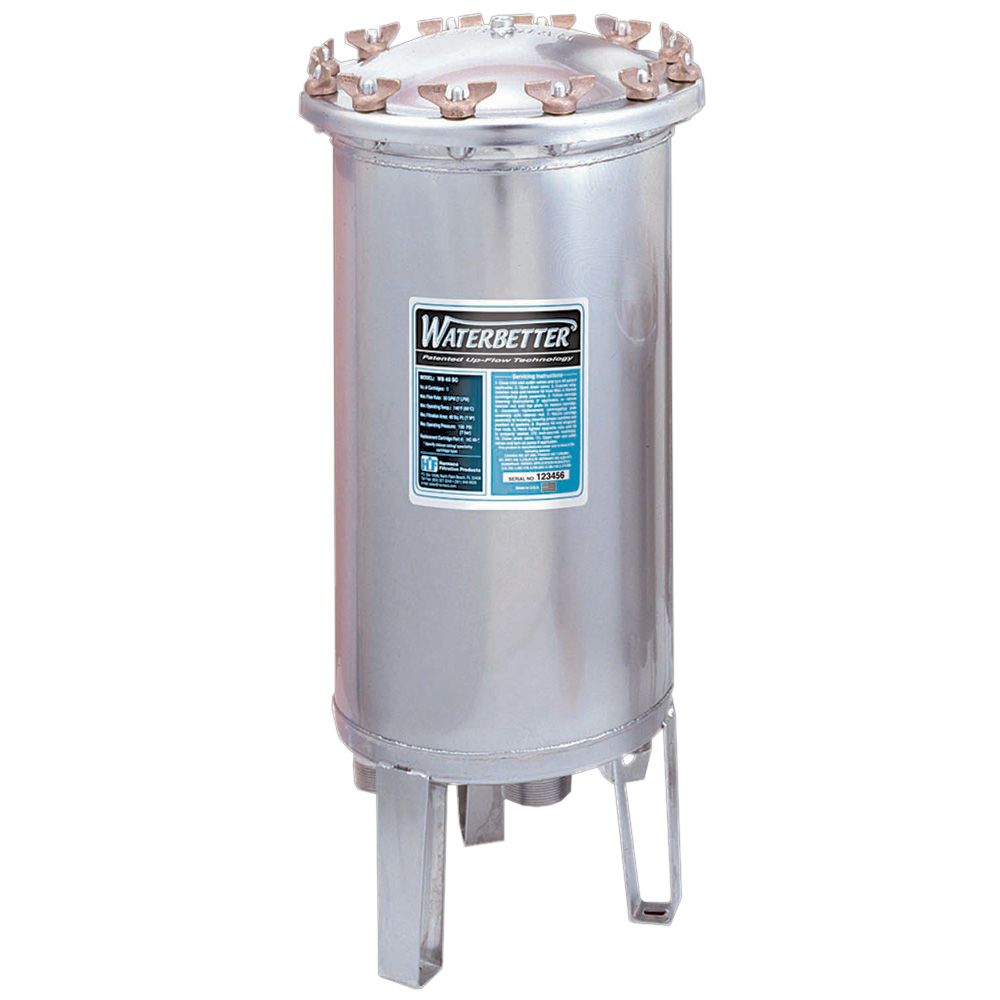

Harmsco® WB 90SC WaterBetter Up-Flow Filter Housing 100 gpm

Part Number: WB-90SC-2-SS-316

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.


Harmsco WaterBetter WB Replacement FiltersHarmsco WaterBetter Filter Housings use a single filter cartridge to provide high flow, longer filter life and better dirt holding capacity. WaterBetter housings are a simple alternative to complex housings that use multiple cartridges.

Features:
  • Patented up-flow design
  • Electropolished 304 stainless steel housing and CPVC standpipe standard
  • Stainless steel standpipe available for high temperature applications
  • Also available in 316 stainless steel and epoxy coated options
  • Fail-safe closure system on lid
  • NSF-61 Listed
  • Inlet/Outlet: 2" NPT (also available in 1" NPT*)
  • Max Flow Rate: 100 gpm
  • * Housings with 1" NPT inlet/outlet are not NSF certified.

Applications for WaterBetter WB Housings:

  • Commercial/Residential Drinking Water
  • Cooling Tower Filtration
  • Surface Water Treatment Rule LT2
  • Industrial Waste Water Treatment
  • Whole House Filtration
  • Reverse Osmosis Pre-filtration
  • Ground Water Remediation
  • Ground Water Under Direct Influence
Additional information for optional 3M Scotchkote epoxy coating:

3M Scotchkote is a fusion bonded epoxy coating that makes the housing resistant to sea water and harsh chemicals. The coating is NSF/ANSI Standard 61 certified for drinking water and meets AWWA Standard C213 and C550. Scotchkote offers excellent chemical resistance and protects over a wide range of temperatures.

Applications for 3M Scotchkote epoxy coating:
  • Desalination Pre-Filtration
  • Industrial Wastewater Treatment
  • Environmental Compliance
  • Marine/Aquatic Filtration
  • Ballast Filtration
  • Brackish Water Filtration
  • Chemical Solvent Filtration
  • Plating Solutions
  • Process Water Filtration
  • Bilge Water Filtration




Weight & Dimensions

Approx Height (Inches)

29-3/8"

Approx Length (Inches)

19-1/2

Approx Width (Inches)

13"

Details

Cap Material

304 Stainless Steel

Drain Size

1" MPT

Flow Rate

70 GPM

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Max Flow Rate

100 GPM

Max Operating Pressure

150 PSI

Max Operating Temperature

140 °F

Number Of Cartridges

1

O Rings

EPDM

Origin

USA

Size

2"

Inlet/Outlet Connection

2" FPT

Warranty & Certifications

Certifications

NSF/ANSI 61




Harmsco WaterBetter WB Replacement FiltersHarmsco WaterBetter Filter Housings use a single filter cartridge to provide high flow, longer filter life and better dirt holding capacity. WaterBetter housings are a simple alternative to complex housings that use multiple cartridges.

Features:
  • Patented up-flow design
  • Electropolished 304 stainless steel housing and CPVC standpipe standard
  • Stainless steel standpipe available for high temperature applications
  • Also available in 316 stainless steel and epoxy coated options
  • Fail-safe closure system on lid
  • NSF-61 Listed
  • Inlet/Outlet: 2" NPT (also available in 1" NPT*)
  • Max Flow Rate: 100 gpm
  • * Housings with 1" NPT inlet/outlet are not NSF certified.

Applications for WaterBetter WB Housings:

  • Commercial/Residential Drinking Water
  • Cooling Tower Filtration
  • Surface Water Treatment Rule LT2
  • Industrial Waste Water Treatment
  • Whole House Filtration
  • Reverse Osmosis Pre-filtration
  • Ground Water Remediation
  • Ground Water Under Direct Influence
Additional information for optional 3M Scotchkote epoxy coating:

3M Scotchkote is a fusion bonded epoxy coating that makes the housing resistant to sea water and harsh chemicals. The coating is NSF/ANSI Standard 61 certified for drinking water and meets AWWA Standard C213 and C550. Scotchkote offers excellent chemical resistance and protects over a wide range of temperatures.

Applications for 3M Scotchkote epoxy coating:
  • Desalination Pre-Filtration
  • Industrial Wastewater Treatment
  • Environmental Compliance
  • Marine/Aquatic Filtration
  • Ballast Filtration
  • Brackish Water Filtration
  • Chemical Solvent Filtration
  • Plating Solutions
  • Process Water Filtration
  • Bilge Water Filtration



NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Approx Height (Inches)

29-3/8"

Approx Length (Inches)

19-1/2

Approx Width (Inches)

13"

Details

Cap Material

304 Stainless Steel

Drain Size

1" MPT

Flow Rate

70 GPM

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Max Flow Rate

100 GPM

Max Operating Pressure

150 PSI

Max Operating Temperature

140 °F

Number Of Cartridges

1

O Rings

EPDM

Origin

USA

Size

2"

Inlet/Outlet Connection

2" FPT

Warranty & Certifications

Certifications

NSF/ANSI 61
