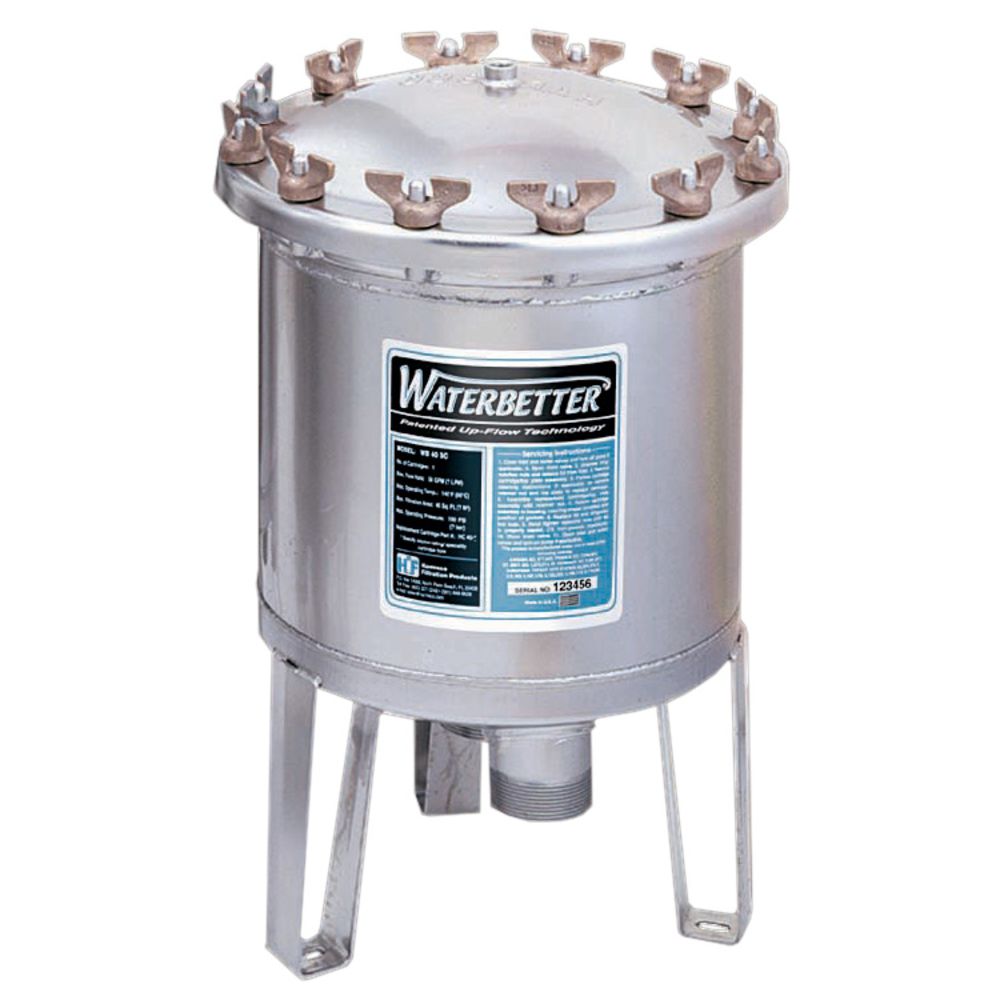

Harmsco® WB 40SC WaterBetter Up-Flow Filter Housing 50 gpm

Part Number: WB-40SC-1-316

In Stock

out of stock

In Stock

$768.50

Harmsco WaterBetter WB Replacement FiltersHarmsco WaterBetter Filter Housings use a single filter cartridge to provide high flow, longer filter life and better dirt holding capacity. WaterBetter housings are a simple alternative to complex housings that use multiple cartridges.

Features:
  • Patented up-flow design
  • Electropolished 304 stainless steel housing and CPVC standpipe standard
  • Optional stainless steel standpipe available for high temperature applications
  • Also available in 316 stainless steel and epoxy coated options
  • Fail-safe closure system on lid
  • NSF-61 Listed
  • Inlet/Outlet: 2" NPT (also available in 1" NPT*)
  • Max Flow Rate: 50 gpm
  • * Housings with 1" NPT inlet/outlet are not NSF certified.
Applications:
  • Commercial/Residential Drinking Water
  • Cooling Tower Filtration
  • Surface Water Treatment Rule LT2
  • Industrial Waste Water Treatment
  • Whole House Filtration
  • Reverse Osmosis Pre-filtration
  • Ground Water Remediation
  • Ground Water Under Direct Influence

Additional information for optional 3M Scotchkote epoxy coating:
3M Scotchkote is a fusion bonded epoxy coating that makes the housing resistant to sea water and harsh chemicals. The coating is NSF/ANSI Standard 61 certified for drinking water and meets AWWA Standard C213 and C550. Scotchkote offers excellent chemical resistance and protects over a wide range of temperatures.
Applications for 3M Scotchkote epoxy coating:
  • Desalination Pre-Filtration
  • Industrial Wastewater Treatment
  • Environmental Compliance
  • Marine/Aquatic Filtration
  • Ballast Filtration
  • Brackish Water Filtration
  • Chemical Solvent Filtration
  • Plating Solutions
  • Process Water Filtration
  • Bilge Water Filtration




Weight & Dimensions

Weight (lbs)

45

Approx Height (Inches)

19-1/4"

Approx Length (Inches)

9-5/8"

Approx Width (Inches)

13"

Details

Max Temp (°F)

140

Max Pressure (Psi)

150

Drain Size

1" MPT

Flow Rate

35 GPM

Gaskets

Buna-N (FDA grade)

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Max Flow Rate

50 GPM

Number Of Cartridges

1

O-Rings

EPDM

Origin

USA

Size

2"

Inlet/Outlet Connection

2" FPT

Warranty & Certifications

Certifications

NSF/ANSI 61
