Specifications:
- Absolute rated (99.9% one micron removal)
- Pleated for increased surface area
- Low pressure drop
- High flow rate capacity
- FDA listed materials
- Thermally bonded construction
- Temperature rated to 140º F
- Melt blown polypropylene media, PVC end caps, PVC center tubes
- Ideal for water systems at state parks, trailer parks, small communities
- Ideal for municipal water filtration applications to meet Surface Water Treatment Rules.
Weight & Dimensions
Approx Length (Inches) | 19 1/2" (49.5 cm) |
Box Dimensions | 8.375x8.375x20.5 |
Case Quantity | 1 |
Weight (lbs) | 5.25 |
Details
Capacity | As Needed |
Core Material | Polypropylene |
Max Temp (°F) | 140 |
Micron Rating (Absolute) | 1 µm |
Recommended Flow Rate | 30 GPM |
Cap Material | PVC |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 7-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 30 GPM |
Media Type | Thermally Bonded Polypropylene |
Micron Rating | 1 µm |
Origin | USA |
Product Length | 20 1/2" |
Warranty & Certifications
Certifications | NSF/ANSI 61 |

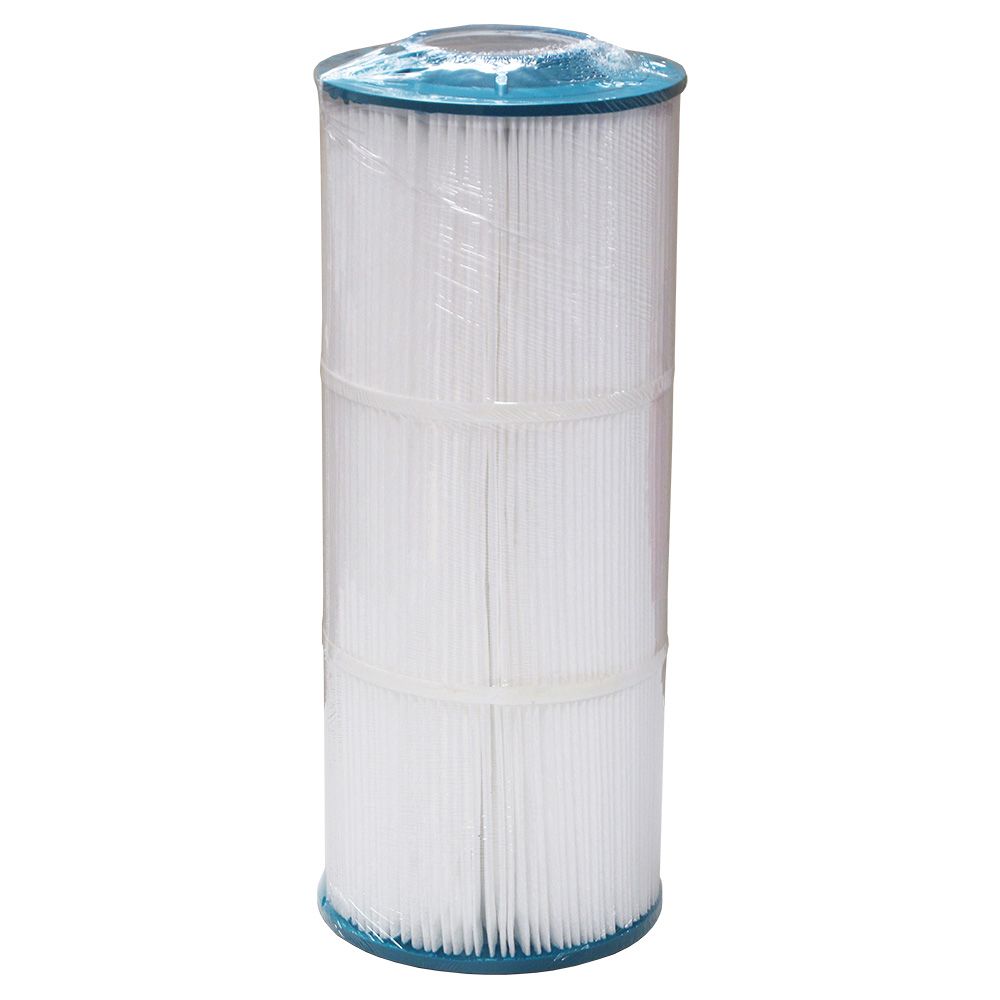

The Harmsco HC/90 Poly-Pleat Sediment Filter - 1 mic substantially removes a wide array of contaminants from water such as silt, sediment, cysts and turbidity. The pleated polypropylene filter media provides more surface area for longer life and increased particle removal.
Specifications:
- Absolute rated (99.9% one micron removal)
- Pleated for increased surface area
- Low pressure drop
- High flow rate capacity
- FDA listed materials
- Thermally bonded construction
- Temperature rated to 140º F
- Melt blown polypropylene media, PVC end caps, PVC center tubes
- Ideal for water systems at state parks, trailer parks, small communities
- Ideal for municipal water filtration applications to meet Surface Water Treatment Rules.
Weight & Dimensions
Approx Length (Inches) | 19 1/2" (49.5 cm) |
Box Dimensions | 8.375x8.375x20.5 |
Case Quantity | 1 |
Weight (lbs) | 5.25 |
Details
Capacity | As Needed |
Core Material | Polypropylene |
Max Temp (°F) | 140 |
Micron Rating (Absolute) | 1 µm |
Recommended Flow Rate | 30 GPM |
Cap Material | PVC |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 7-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 30 GPM |
Media Type | Thermally Bonded Polypropylene |
Micron Rating | 1 µm |
Origin | USA |
Product Length | 20 1/2" |
Warranty & Certifications
Certifications | NSF/ANSI 61 |
