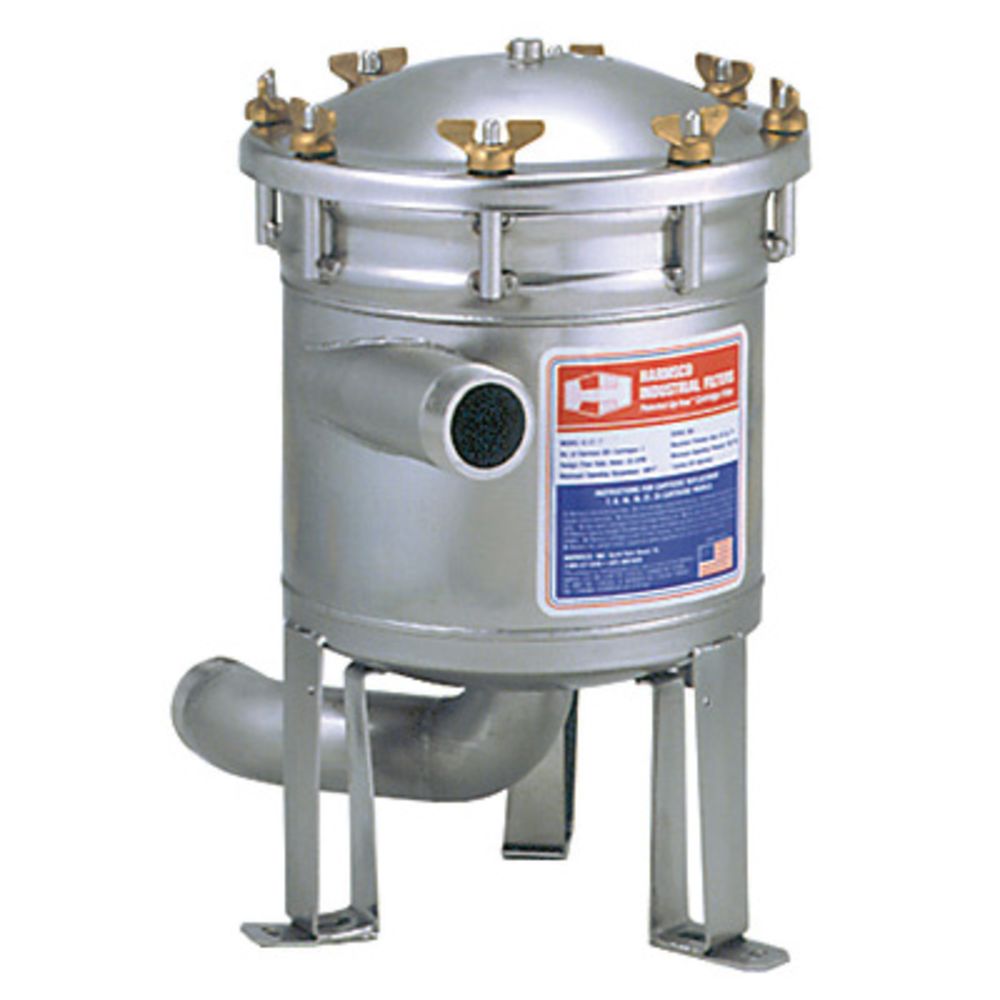

Harmsco® HUR 40 HP Hurricane Filter Housing 50 gpm - Standard

Part Number: HUR-40-HP

Alt. Part Number: HUR 40 HP

In Stock

out of stock

In Stock

$1,335.00


Hurricane filters provide unsurpassed performance because they separate dense solids prior to cartridge filtration for extended filter life, increased dirt holding capacity and reduced maintenance costs. In many respects Harmsco Hurricane filters are two filters in one!
Features:
  • 304 stainless steel housing and CPVC standpipe standard
  • Stainless steel standpipe available for high temperature applications
  • Electro polished finish standard
  • Also available in 316 stainless steel, high pressure (200 psi) and epoxy coated options
  • Fail-safe lids with individual studs for security
  • Brass wing nuts for easy maintenance; no tools needed
  • NSF-61 Listed
  • Inlet/Outlet: 2" NPT
  • Max Flow Rate: 50 gpm
Applications for Hurricane HP Housings:
  • Commercial/Residential Drinking Water
  • Cooling Tower Filtration
  • Surface Water Treatment Rule LT2
  • Industrial Waste Water Treatment
  • Process Water
  • Whole House Filtration
  • Reverse Osmosis Pre-filtration
  • Small Community Compliance LT2
  • Ground Water Remediation
  • Ground Water Under Direct Influence
Applications for optional 3M Scotchkote epoxy coating:

3M Scotchkote is a fusion bonded epoxy coating that makes the housing resistant to sea water and harsh chemicals. The coating is NSF/ANSI Standard 61 certified for drinking water and meets AWWA Standard C213 and C550.
  • Desalination Pre-Filtration
  • Industrial Wastewater Treatment
  • Environmental Compliance
  • Marine/Aquatic Filtration
  • Ballast Filtration
  • Brackish Water Filtration
  • Chemical Solvent Filtration
  • Plating Solutions
  • Process Water Filtration
  • Bilge Water Filtration


Weight & Dimensions

Approx Height (Inches)

19-1/2 Inches

Approx Length (Inches)

9-5/8"

Approx Width (Inches)

14-3/8 Inches

Details

Cap Color

Stainless Steel

Cap Material

304 Stainless Steel

Color / Finish

Stainless Steel

Drain Size

1"

Flow Rate

35 Gallons Per Minute

Housing Material

304 Stainless Steel

Inlet/Outlet Size

2" FNPT

Material Of Construction

304 Stainless Steel

Max Flow Rate

50 Gallons Per Minute

Max Operating Pressure

150 PSI

Max Operating Temperature

140 Degrees Fahrenheit

Number Of Cartridges

1

O Rings

EPDM

Origin

USA

Type

Commercial

Warranty & Certifications

Certifications

NSF/ANSI 61
