Harmsco

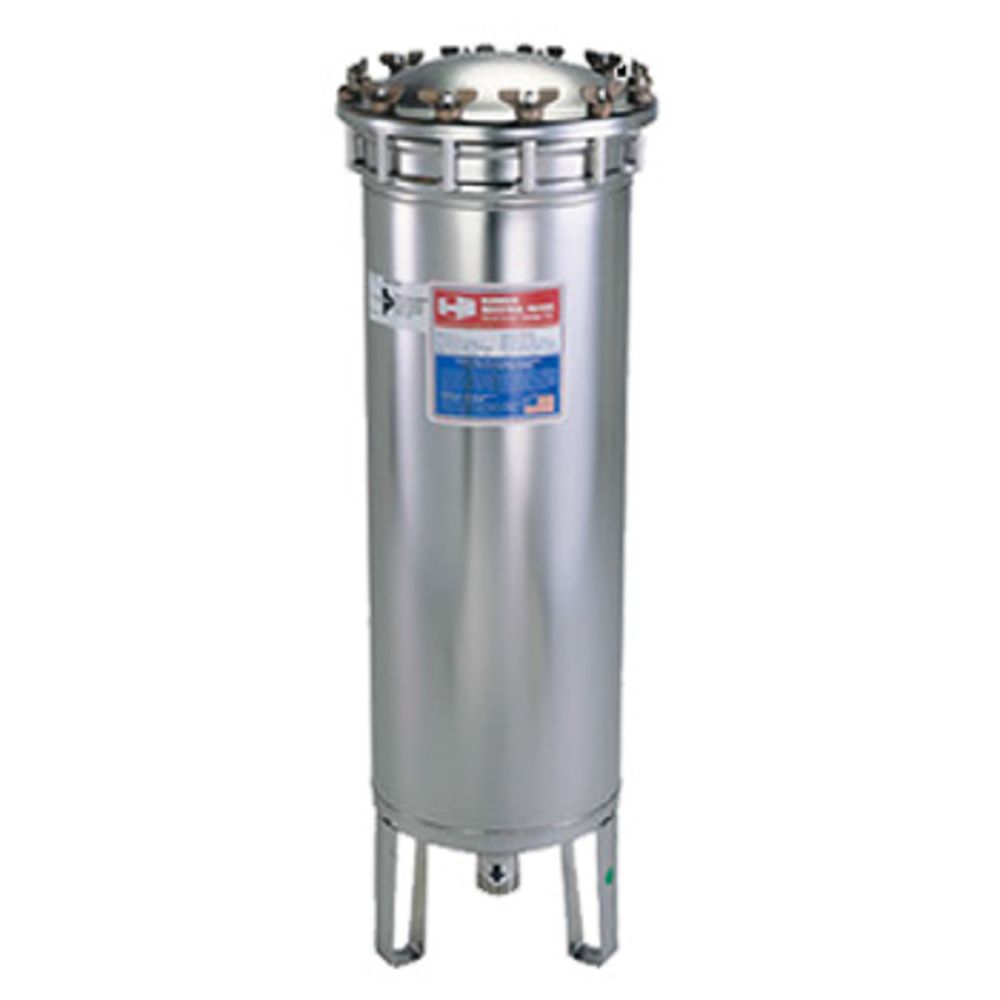

Harmsco® HIF 24 Up-Flow Filter Housing 100 gpm

Part Number: HIF 24

In Stock

out of stock

In Stock

$1,431.00


The Harmsco HIF 24 features a patented up-flow design which prevents air from accumulating inside the filter housing, allowing the filter to continue operating at 100%. HIF up-flow housings are compatible with an extensive selection of cartridge options making them compatible with a wide range of applications.

Features:
  • Rugged 304 stainless steel construction standard
  • Electro-polished for increased resistance to corrosion
  • Flow Rate up to 100 gpm
  • Pressure rated to 150 psi and hydrostatically tested
  • Individual studs for safe, secure lid closure
  • Easy cartridge installation, removal and service
Applications:
  • Residential and commercial drinking water
  • Surface Water Treatment Rule LT2
  • Industrial waste water treatment
  • Reverse osmosis pre-filtration
  • Ground water remediation
  • Utility water
  • Cooling tower filtration
  • Process water
Additional information for optional 3M Scotchkote epoxy coating:

3M Scotchkote is a fusion bonded epoxy coating that makes the housing resistant to sea water and harsh chemicals. The coating is NSF/ANSI Standard 61 certified for drinking water and meets AWWA Standard C213 and C550. Scotchkote offers excellent chemical resistance and protects over a wide range of temperatures.
Applications for 3M Scotchkote epoxy coating:
  • Desalination Pre-Filtration
  • Industrial Wastewater Treatment
  • Environmental Compliance
  • Marine/Aquatic Filtration
  • Ballast Filtration
  • Brackish Water Filtration
  • Chemical Solvent Filtration
  • Plating Solutions
  • Process Water Filtration
  • Bilge Water Filtration


Weight & Dimensions

Approx Height (Inches)

37 Inches

Approx Length (Inches)

29-1/4 Inches

Approx Width (Inches)

13 Inches

Details

Cap Color

Stainless Steel

Cap Material

304 Stainless Steel

Color / Finish

Stainless Steel

Drain Size

1"

Flow Rate

100 Gallons Per Minute

Inlet/Outlet Size

2" FNPT

Material Of Construction

304 Stainless Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

140 Degrees Fahrenheit

Number Of Cartridges

8

O Rings

Buna-N

Origin

USA

Type

Commercial

Warranty & Certifications

Certifications

NSF/ANSI 61
