Harmsco

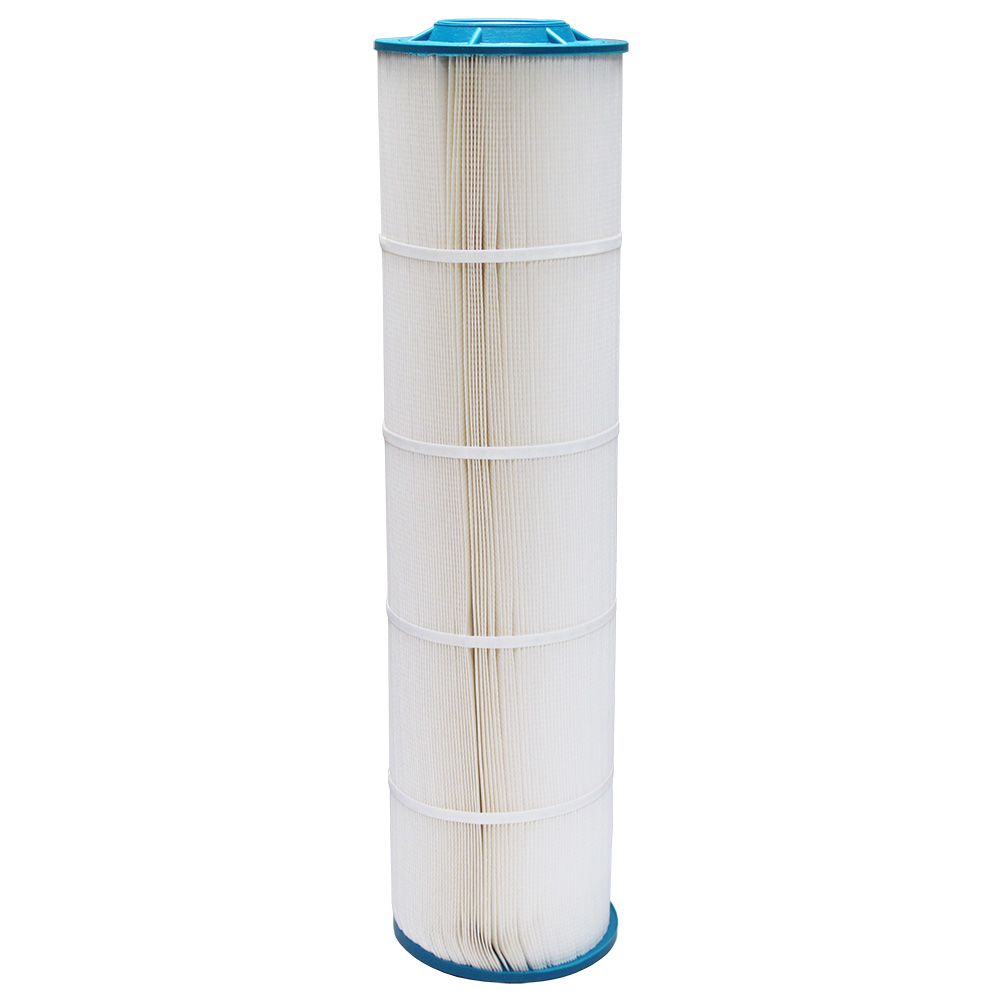

Harmsco® HC/170-20W-HF Premium Hurricane Harmsco®-Free Cartridge 20 mic

Part Number: HC/170-20W-HF

In Stock

out of stock

In Stock

$172.55


The Harmsco HC/170-20W-HF Premium Hurricane Harmsco-Free Cartridge provides longer filter runs for fewer change-outs resulting in a lower overall operating cost. The filter's 100% cellulose-free synthetic composite pleated filter media allows for higher flow rates and lower initial pressure drop which means there are fewer cartridge changes.

Specifications:
  • Pleated synthetic composite filter media is 100% cellulose-free
  • Pleated design provides longer filter life and increased particle removal
  • End caps, center tube and media are thermally bonded for added strength
  • Filter Dimensions: 30-3/4" x 7-3/4"
  • Max Temperature: 140°F
  • Max Flow Rate: 150 gpm
  • Certified to ANSI/NSF 61
Applications :
  • Reverse Osmosis Pre-filtration
  • Municipal Drinking Water Filtration
  • Commercial/Residential Drinking Water Filtration
  • Desalination Pre-Filtration
  • Industrial Water Filtration
  • Cooling Tower Filtration
  • Chill Water Loop Filtration
  • Food and Beverage Filtration
  • Marine/Aquatic Filtration
  • Water Bottlers
Disclaimer: Harmsco® is a registered trademark of Harmsco, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc. acknowledges and confirms that it has not been granted any license or authority from Harmsco, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Harmsco, Inc and Fresh Water Systems, Inc. of any nature whatsoever.


Weight & Dimensions

Approx Length (Inches)

30-3/4" (78.1 cm)

Details

Cap Material

Plastisol (Pliable PVC)

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Flow Rate

105 Gallons Per Minute

Max Flow Rate

150 Gallons Per Minute

Media Type

100% Cellulose-Free Synthetic Composite

Micron Rating (Nominal)

20 Micron

Operating Temperature Range

Max 140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Warranty & Certifications

Certifications

NSF 61




The Harmsco HC/170-20W-HF Premium Hurricane Harmsco-Free Cartridge provides longer filter runs for fewer change-outs resulting in a lower overall operating cost. The filter's 100% cellulose-free synthetic composite pleated filter media allows for higher flow rates and lower initial pressure drop which means there are fewer cartridge changes.

Specifications:
  • Pleated synthetic composite filter media is 100% cellulose-free
  • Pleated design provides longer filter life and increased particle removal
  • End caps, center tube and media are thermally bonded for added strength
  • Filter Dimensions: 30-3/4" x 7-3/4"
  • Max Temperature: 140°F
  • Max Flow Rate: 150 gpm
  • Certified to ANSI/NSF 61
Applications :
  • Reverse Osmosis Pre-filtration
  • Municipal Drinking Water Filtration
  • Commercial/Residential Drinking Water Filtration
  • Desalination Pre-Filtration
  • Industrial Water Filtration
  • Cooling Tower Filtration
  • Chill Water Loop Filtration
  • Food and Beverage Filtration
  • Marine/Aquatic Filtration
  • Water Bottlers
Disclaimer: Harmsco® is a registered trademark of Harmsco, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc. acknowledges and confirms that it has not been granted any license or authority from Harmsco, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Harmsco, Inc and Fresh Water Systems, Inc. of any nature whatsoever.

Weight & Dimensions

Approx Length (Inches)

30-3/4" (78.1 cm)

Details

Cap Material

Plastisol (Pliable PVC)

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Flow Rate

105 Gallons Per Minute

Max Flow Rate

150 Gallons Per Minute

Media Type

100% Cellulose-Free Synthetic Composite

Micron Rating (Nominal)

20 Micron

Operating Temperature Range

Max 140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Warranty & Certifications

Certifications

NSF 61
