Harmsco

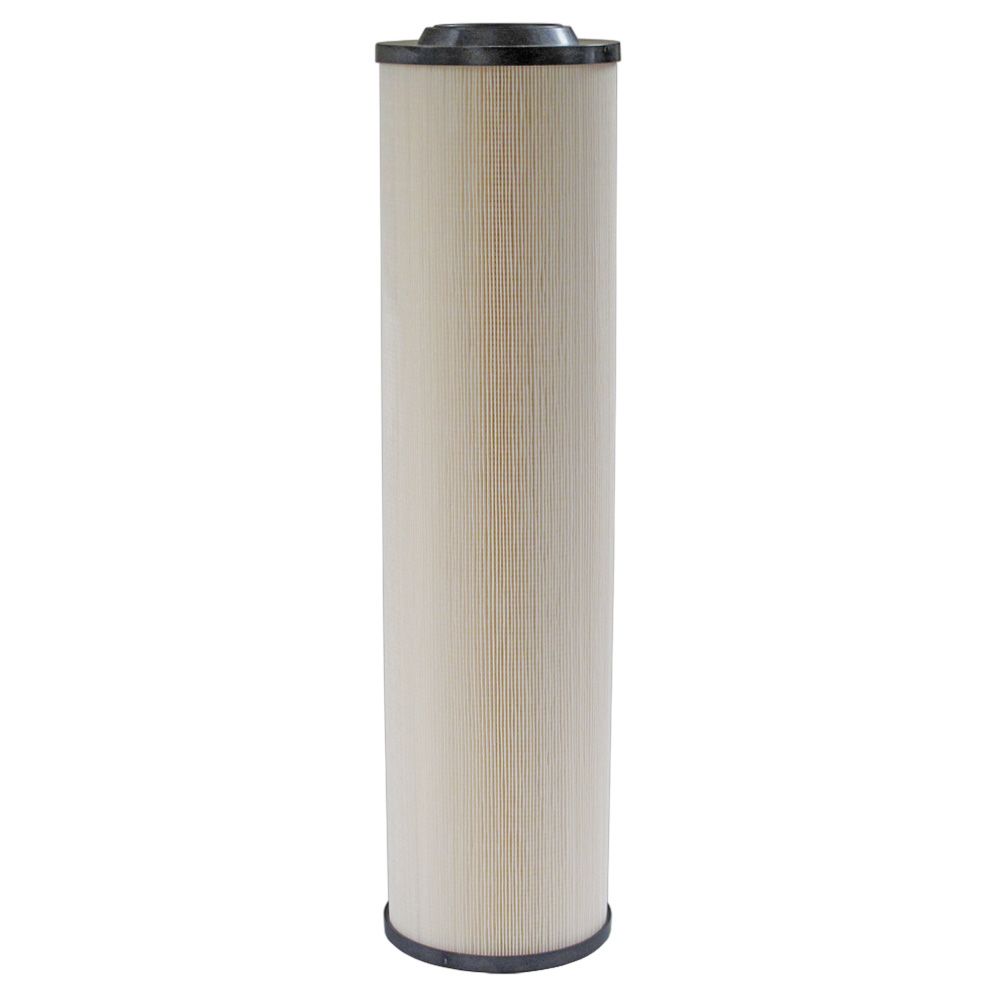

Harmsco® HC/170-20HT Premium Hurricane High-Temp Cartridge 20 mic

Part Number: HC/170-20HT

In Stock

out of stock

In Stock

$212.36


Harmsco HC/170-20HT Premium Hurricane High-Temp Cartridge provides longer filter runs for fewer change-outs resulting in a lower overall operating cost. The filter's Polyester-Plus pleated filter media is good up to 200°F and allows for higher flow rates and lower initial pressure drop which means there are fewer cartridge changes in applications with.

Specifications:
  • Pleated Polyester-Plus filter media
  • Pleated design provides longer filter life and increased particle removal
  • Aqueous and oil based fluid applications
  • Filter Dimensions: 30-3/4" x 7-3/4"
  • Max Temperature: 200°F
  • Recommended Flow Rate: 105 gpm
Applications:
  • Hot Water Loops
  • Boiler Make-up Water
  • Petrochemical
  • Lubricating Oil
  • Cutting Fluids
  • Solvents
  • Distillate Fuel
  • Fuel Oil
  • Hydraulic Fluids
  • Bio Fuels


Weight & Dimensions

Approx Length (Inches)

30-3/4" (78.1 cm)

Details

Cap Material

Injection Molded

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Flow Rate

105 Gallons Per Minute

Media Type

Pleated Polyester

Micron Rating (Nominal)

20 Micron

O Rings

Buna N

Operating Temperature Range

Max 200 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

170 Square Feet




Harmsco HC/170-20HT Premium Hurricane High-Temp Cartridge provides longer filter runs for fewer change-outs resulting in a lower overall operating cost. The filter's Polyester-Plus pleated filter media is good up to 200°F and allows for higher flow rates and lower initial pressure drop which means there are fewer cartridge changes in applications with.

Specifications:
  • Pleated Polyester-Plus filter media
  • Pleated design provides longer filter life and increased particle removal
  • Aqueous and oil based fluid applications
  • Filter Dimensions: 30-3/4" x 7-3/4"
  • Max Temperature: 200°F
  • Recommended Flow Rate: 105 gpm
Applications:
  • Hot Water Loops
  • Boiler Make-up Water
  • Petrochemical
  • Lubricating Oil
  • Cutting Fluids
  • Solvents
  • Distillate Fuel
  • Fuel Oil
  • Hydraulic Fluids
  • Bio Fuels

Weight & Dimensions

Approx Length (Inches)

30-3/4" (78.1 cm)

Details

Cap Material

Injection Molded

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Flow Rate

105 Gallons Per Minute

Media Type

Pleated Polyester

Micron Rating (Nominal)

20 Micron

O Rings

Buna N

Operating Temperature Range

Max 200 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

170 Square Feet
