Harmsco

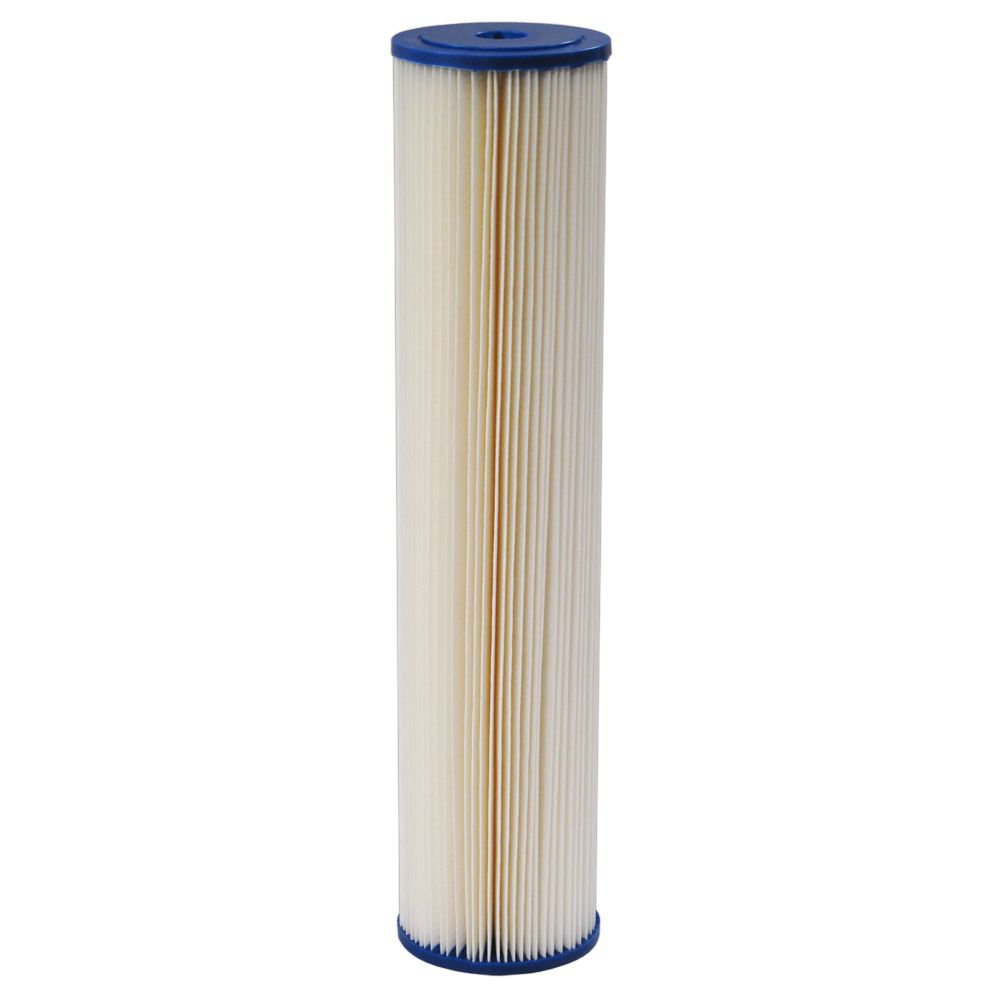

Harmsco® HB-20-5W 20" Calypso Blue Premium Pleated Filter 5 micron

Part Number: HB-20-5W

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure PH-45200-05 20" BB High Efficiency Pleated Filter 5 micron as a substitute.


Harmsco 20" Calypso Blue Premium Pleated Filters offer higher flow capability, increased contaminant removal and lower pressure drop which allows for fewer cartridge changes and a lower overall operating cost. Calypso Blue Premium Cartridges are made from FDA approved materials and are NSF 61 certified.

Applications for Harmsco Calypso Blue Premium Pleated Filters:
  • Reverse Osmosis Pre-Filtration
  • Municipal Drinking Water Filtration
  • Commercial/Residential Drinking Water Filtration
  • Desalination Pre-Filtration
  • Industrial Water Filtration
  • Cooling Tower Filtration
  • Chill Water Loop Filtration
  • Food and Beverage Filtration
  • Marine/Aquatic Filtration

Specifications:
  • Thermally bonded end caps provide a better seal
  • Made from FDA approved materials
  • Certified to NSF 61 standards
  • Max Flow Rate: 26 gpm
  • Max Temperature: 140° F

Disclaimer: Harmsco® is a registered trademark of Harmsco, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc. acknowledges and confirms that it has not been granted any license or authority from Harmsco, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Harmsco, Inc and Fresh Water Systems, Inc. of any nature whatsoever.



Weight & Dimensions

Weight (lbs)

1.98

Approx Length (Inches)

20" (50.8 cm)

Details

Max Temp (°F)

140

Cap Material

Plastisol (Pliable PVC)

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

4

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Max Flow Rate

26 GPM

Media Type

Polyester

Micron Rating (Nominal)

5 µm

Origin

USA

Outer Diameter

4-1/2"

Surface Area

26 Square Feet

Warranty & Certifications

Certifications

NSF 61




Harmsco 20" Calypso Blue Premium Pleated Filters offer higher flow capability, increased contaminant removal and lower pressure drop which allows for fewer cartridge changes and a lower overall operating cost. Calypso Blue Premium Cartridges are made from FDA approved materials and are NSF 61 certified.

Applications for Harmsco Calypso Blue Premium Pleated Filters:
  • Reverse Osmosis Pre-Filtration
  • Municipal Drinking Water Filtration
  • Commercial/Residential Drinking Water Filtration
  • Desalination Pre-Filtration
  • Industrial Water Filtration
  • Cooling Tower Filtration
  • Chill Water Loop Filtration
  • Food and Beverage Filtration
  • Marine/Aquatic Filtration

Specifications:
  • Thermally bonded end caps provide a better seal
  • Made from FDA approved materials
  • Certified to NSF 61 standards
  • Max Flow Rate: 26 gpm
  • Max Temperature: 140° F

Disclaimer: Harmsco® is a registered trademark of Harmsco, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc. acknowledges and confirms that it has not been granted any license or authority from Harmsco, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Harmsco, Inc and Fresh Water Systems, Inc. of any nature whatsoever.


NOTE: This item is discontinued. We recommend the Neo-Pure PH-45200-05 20" BB High Efficiency Pleated Filter 5 micron as a substitute.

Weight & Dimensions

Weight (lbs)

1.98

Approx Length (Inches)

20" (50.8 cm)

Details

Max Temp (°F)

140

Cap Material

Plastisol (Pliable PVC)

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

4

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Max Flow Rate

26 GPM

Media Type

Polyester

Micron Rating (Nominal)

5 µm

Origin

USA

Outer Diameter

4-1/2"

Surface Area

26 Square Feet

Warranty & Certifications

Certifications

NSF 61
