Harmsco

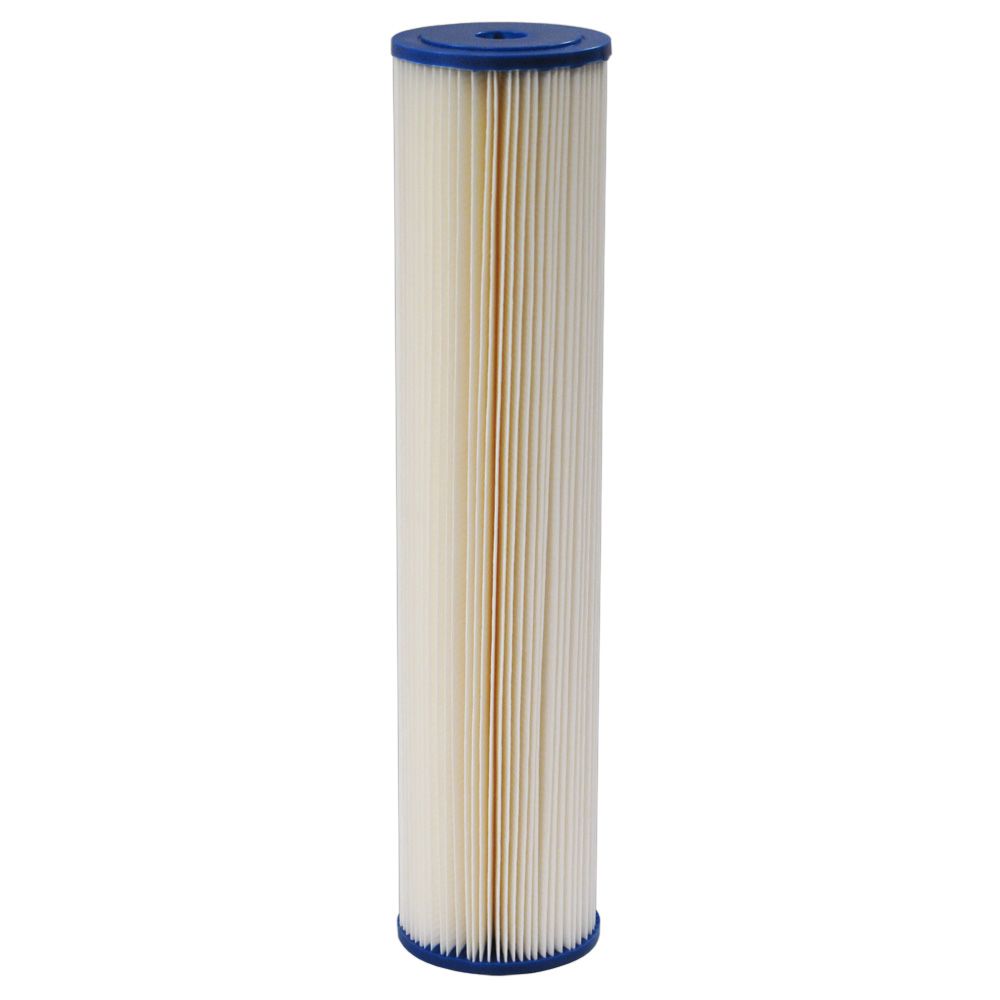

Harmsco® HB-20-50W 20" Calypso Blue Premium Pleated Filter 50 micron

Part Number: HB-20-50W

In Stock

out of stock

In Stock

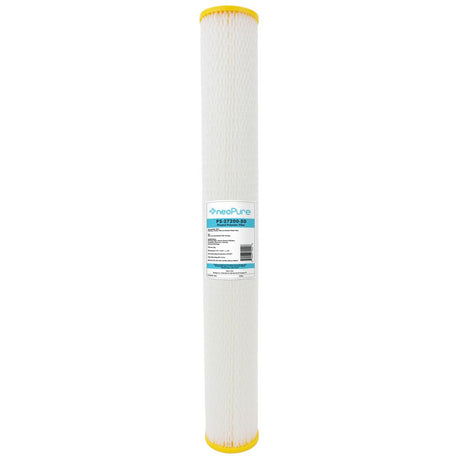

This item is discontinued. We recommend the Neo-Pure PH-45200-50 20" BB High Efficiency Pleated Filter 50 micron as a substitute.


Harmsco 20" Calypso Blue Premium Pleated Filters offer higher flow capability, increased contaminant removal and lower pressure drop which allows for fewer cartridge changes and a lower overall operating cost. Calypso Blue Premium Cartridges are made from FDA approved materials and are NSF 61 certified.

Specifications:
  • Thermally bonded end caps provide a better seal
  • Made from FDA approved materials
  • Certified to NSF 61 standards
  • Max Flow Rate: 26 gpm
  • Max Temperature: 140° F
Applications for Harmsco Calypso Blue Premium Pleated Filters:
  • Reverse Osmosis Pre-Filtration
  • Municipal Drinking Water Filtration
  • Commercial/Residential Drinking Water Filtration
  • Desalination Pre-Filtration
  • Industrial Water Filtration
  • Cooling Tower Filtration
  • Chill Water Loop Filtration
  • Food and Beverage Filtration
  • Marine/Aquatic Filtration
Disclaimer: Harmsco® is a registered trademark of Harmsco, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc. acknowledges and confirms that it has not been granted any license or authority from Harmsco, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Harmsco, Inc and Fresh Water Systems, Inc. of any nature whatsoever.




Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

4

Weight (lbs)

1.98

Details

Capacity

As Needed

Core Material

Molded ABS or Rigid PVC

Max Flow Rate

26 GPM

Max Temp (°F)

140

Micron Rating (Nominal)

50 µm

Surface Area

26 Square Feet

Cap Material

Plastisol (Pliable PVC)

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Media Type

Polyester

Micron Rating

50 µm

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

NSF/ANSI 61




Harmsco 20" Calypso Blue Premium Pleated Filters offer higher flow capability, increased contaminant removal and lower pressure drop which allows for fewer cartridge changes and a lower overall operating cost. Calypso Blue Premium Cartridges are made from FDA approved materials and are NSF 61 certified.

Specifications:
  • Thermally bonded end caps provide a better seal
  • Made from FDA approved materials
  • Certified to NSF 61 standards
  • Max Flow Rate: 26 gpm
  • Max Temperature: 140° F
Applications for Harmsco Calypso Blue Premium Pleated Filters:
  • Reverse Osmosis Pre-Filtration
  • Municipal Drinking Water Filtration
  • Commercial/Residential Drinking Water Filtration
  • Desalination Pre-Filtration
  • Industrial Water Filtration
  • Cooling Tower Filtration
  • Chill Water Loop Filtration
  • Food and Beverage Filtration
  • Marine/Aquatic Filtration
Disclaimer: Harmsco® is a registered trademark of Harmsco, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc. acknowledges and confirms that it has not been granted any license or authority from Harmsco, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Harmsco, Inc and Fresh Water Systems, Inc. of any nature whatsoever.



NOTE: This item is discontinued. We recommend the Neo-Pure PH-45200-50 20" BB High Efficiency Pleated Filter 50 micron as a substitute.

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

4

Weight (lbs)

1.98

Details

Capacity

As Needed

Core Material

Molded ABS or Rigid PVC

Max Flow Rate

26 GPM

Max Temp (°F)

140

Micron Rating (Nominal)

50 µm

Surface Area

26 Square Feet

Cap Material

Plastisol (Pliable PVC)

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Media Type

Polyester

Micron Rating

50 µm

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

NSF/ANSI 61

Reviews
