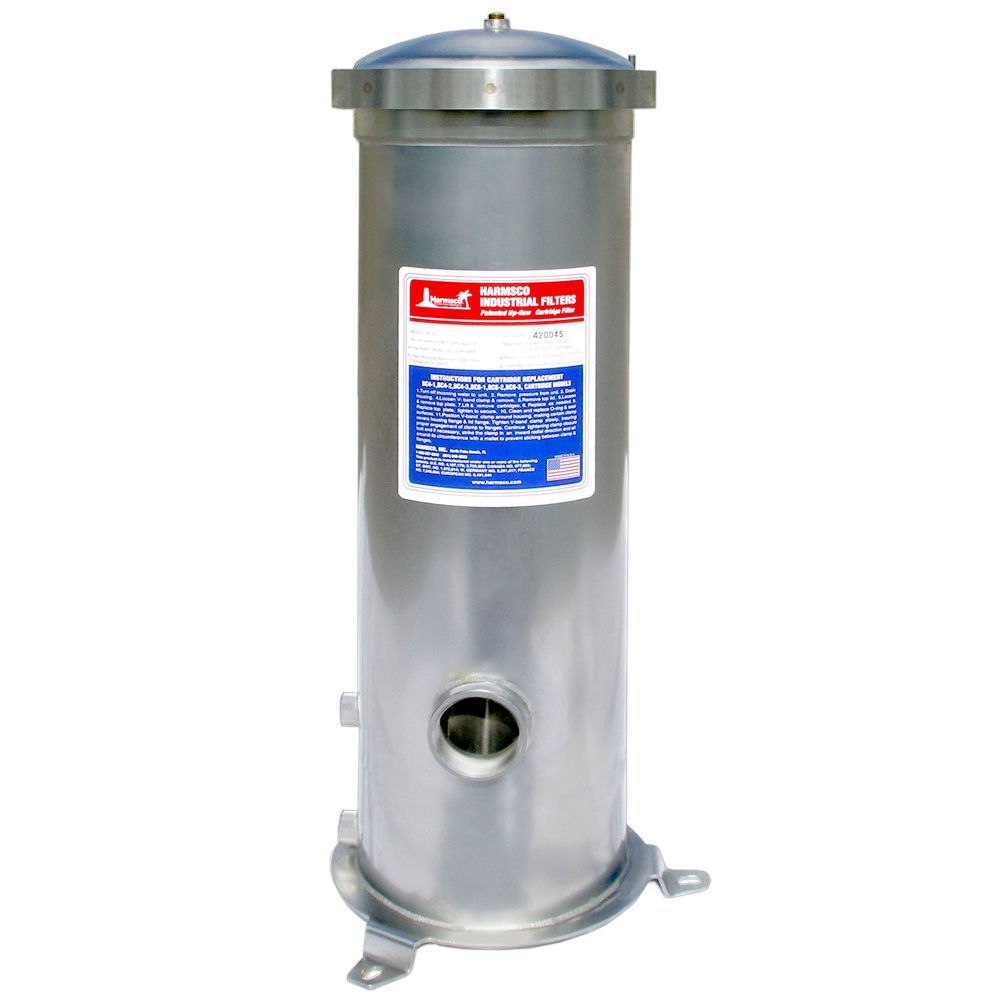

Harmsco® BC4-2 Band Clamp Up-Flow Filter Housing 50 gpm - 316 Stainless Housing

Part Number: BC4-2-T-EP-316

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.


Harmsco BC Band Clamp Housings feature a patented up-flow design which prevents air from accumulating inside the filter housing, allowing the filter to continue operating at 100%. Band clamp up-flow housings are compatible with an extensive selection of cartridge options making them compatible with a wide range of applications. Harmsco BC Band Clamp Housing Replacement Filters

Specifications:
  • Rugged 304 stainless steel construction standard
  • Electro-polished for increased resistance to corrosion
  • Adjustable top plate to accept different length cartridges
  • Two drains provided - inlet and outlet
  • Max Flow Rate: 50 gpm
  • Max Pressure: 150 psi
  • Inlet/Outlet: 2" FNPT
 Applications:
  • Residential and commercial drinking water
  • Cooling tower filtration
  • Industrial waste water treatment
  • Reverse osmosis pre-filtration
  • Ground water remediation
  • Utility water
  • Process water
  • Ground Water Under Direct Influence




Weight & Dimensions

Weight (lbs)

32

Approx Height (Inches)

29-1/4"

Approx Length (Inches)

19-1/2 or 20"

Approx Width (Inches)

11-1/2"

Details

Max Temp (°F)

250

Max Pressure (Psi)

150

Flow Rate

24 GPM

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Max Flow Rate

50 GPM

Number Of Cartridges

4

O-Rings

Buna-N

Origin

USA

Size

2"

Inlet/Outlet Connection

2" FPT




Harmsco BC Band Clamp Housings feature a patented up-flow design which prevents air from accumulating inside the filter housing, allowing the filter to continue operating at 100%. Band clamp up-flow housings are compatible with an extensive selection of cartridge options making them compatible with a wide range of applications. Harmsco BC Band Clamp Housing Replacement Filters

Specifications:
  • Rugged 304 stainless steel construction standard
  • Electro-polished for increased resistance to corrosion
  • Adjustable top plate to accept different length cartridges
  • Two drains provided - inlet and outlet
  • Max Flow Rate: 50 gpm
  • Max Pressure: 150 psi
  • Inlet/Outlet: 2" FNPT
 Applications:
  • Residential and commercial drinking water
  • Cooling tower filtration
  • Industrial waste water treatment
  • Reverse osmosis pre-filtration
  • Ground water remediation
  • Utility water
  • Process water
  • Ground Water Under Direct Influence



NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Weight (lbs)

32

Approx Height (Inches)

29-1/4"

Approx Length (Inches)

19-1/2 or 20"

Approx Width (Inches)

11-1/2"

Details

Max Temp (°F)

250

Max Pressure (Psi)

150

Flow Rate

24 GPM

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Max Flow Rate

50 GPM

Number Of Cartridges

4

O-Rings

Buna-N

Origin

USA

Size

2"

Inlet/Outlet Connection

2" FPT
