Harmsco
Harmsco® 801-5W 9-3/4" Premium Pleated Filter 5 mic
This item is discontinued. We recommend the Neo-Pure PH-27097-05 9-3/4" High Efficiency Pleated Filter 5 micron as a substitute.

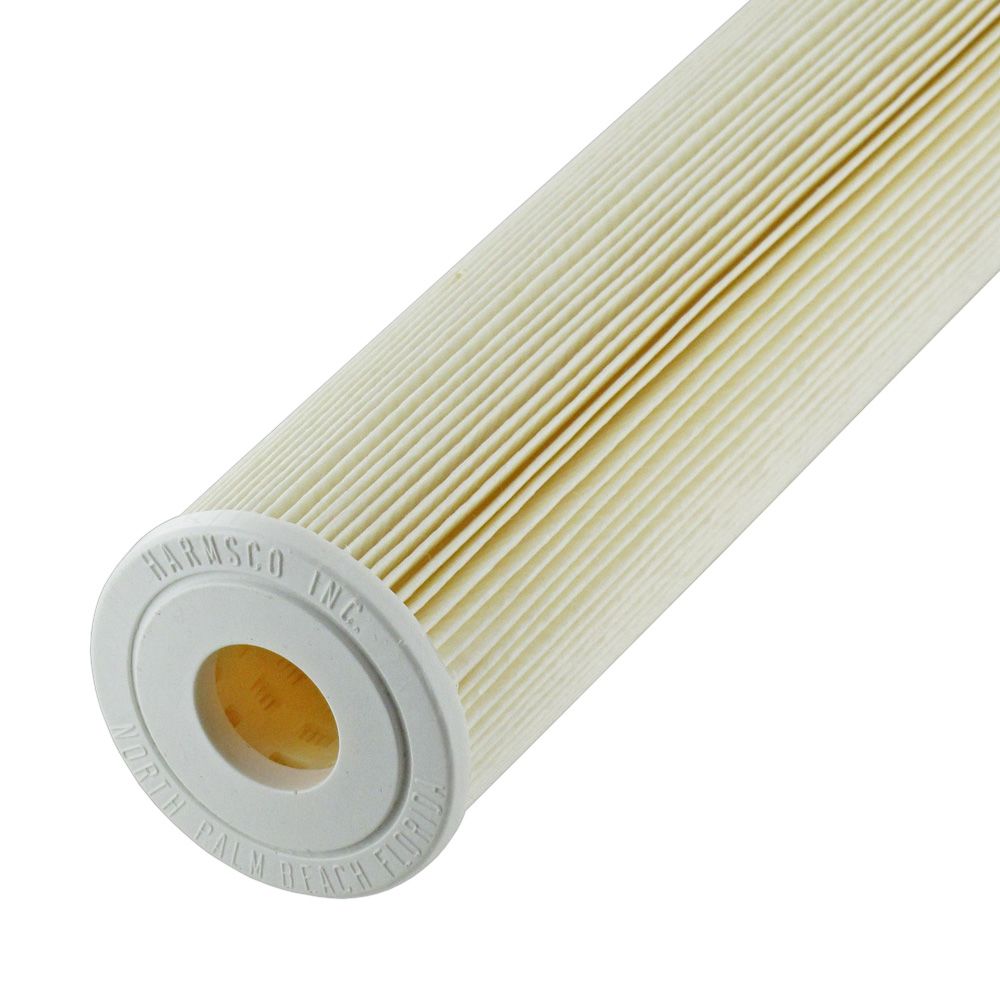

Harmsco 801 Series are highly efficient filter cartridges made of pleated Polyester-Plus filter media for low pressure drop, high flow capability, increased contaminant removal, long filter runs, reusability, and the lowest cost per gallon filtered.
Features:
- Pleated design with up to 50% more surface area than competitive filters resulting in superior performance and increased contaminant removal
- Longer filtration runs for fewer change-outs and less maintenance
- Low pressure drop
- Thermally bonded for longer usable life
- Recommended Flow Rate: 6 gpm
- FDA approved materials - NSF 61 certified
- Engineered media for superior performance
Details
Capacity | As Needed |
Filter Application | Sediment/Dirt/Rust |
Max Temp (°F) | 140 |
Micron Rating (Nominal) | 5 µm |
Surface Area | 6 Square Feet |
Cap Material | Plastisol (Pliable PVC) |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Diameter | 2-3/4" |
End Cap Type | Double Open Ended (DOE) |
Flow Rate | 6 GPM |
Media Type | Polyester |
Micron Rating | 5 µm |
Origin | USA |
Product Length | 9-3/4" |
Warranty & Certifications
Certifications | NSF/ANSI 61 |
Harmsco 801 Series are highly efficient filter cartridges made of pleated Polyester-Plus filter media for low pressure drop, high flow capability, increased contaminant removal, long filter runs, reusability, and the lowest cost per gallon filtered.
Features:
- Pleated design with up to 50% more surface area than competitive filters resulting in superior performance and increased contaminant removal
- Longer filtration runs for fewer change-outs and less maintenance
- Low pressure drop
- Thermally bonded for longer usable life
- Recommended Flow Rate: 6 gpm
- FDA approved materials - NSF 61 certified
- Engineered media for superior performance
NOTE: This item is discontinued. We recommend the Neo-Pure PH-27097-05 9-3/4" High Efficiency Pleated Filter 5 micron as a substitute.
Details
Capacity | As Needed |
Filter Application | Sediment/Dirt/Rust |
Max Temp (°F) | 140 |
Micron Rating (Nominal) | 5 µm |
Surface Area | 6 Square Feet |
Cap Material | Plastisol (Pliable PVC) |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Diameter | 2-3/4" |
End Cap Type | Double Open Ended (DOE) |
Flow Rate | 6 GPM |
Media Type | Polyester |
Micron Rating | 5 µm |
Origin | USA |
Product Length | 9-3/4" |
Warranty & Certifications
Certifications | NSF/ANSI 61 |
