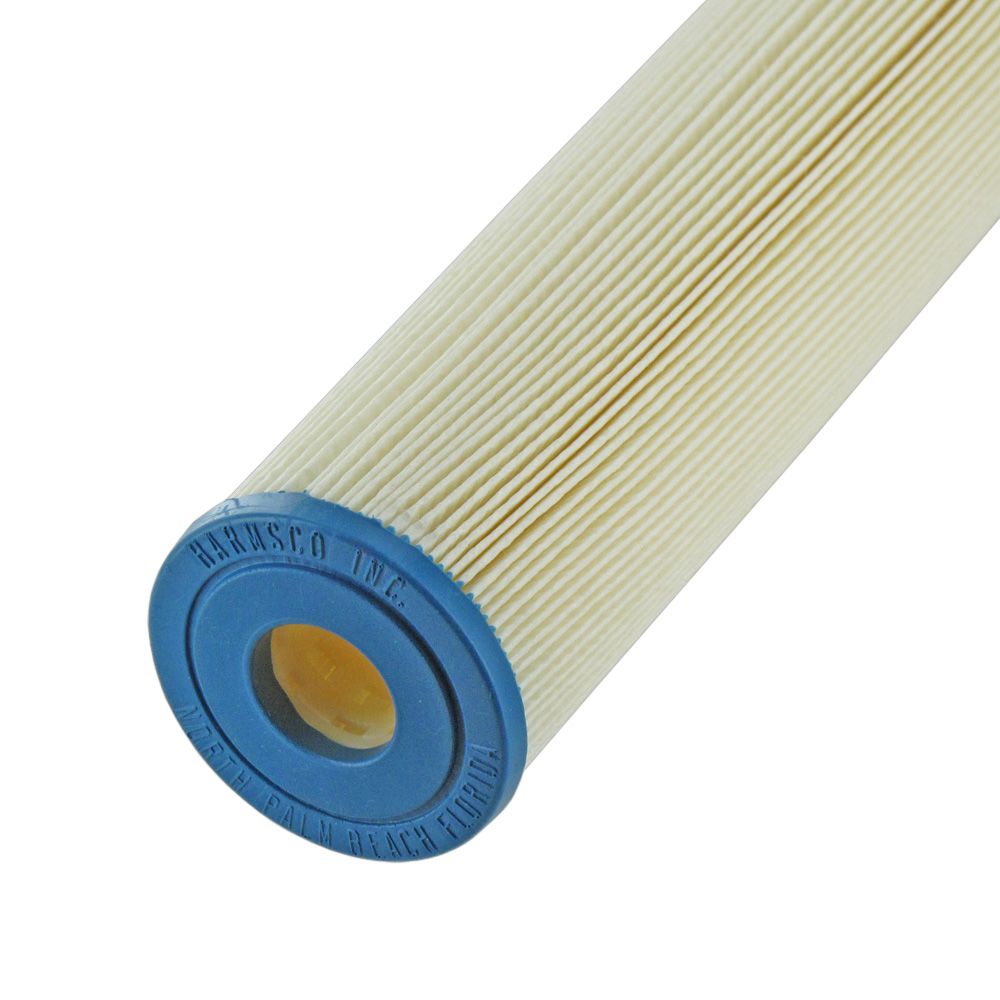

Harmsco® 801-20HT 9-3/4" Premium Hi-Temp Pleated Filter 20 mic

Home / Filters & Cartridges / Sediment Filters / Harmsco® 801-20HT 9-3/4" Premium Hi-Temp Pleated Filter 20 mic

Harmsco

Harmsco® 801-20HT 9-3/4" Premium Hi-Temp Pleated Filter 20 mic

Part Number: 801-20HT

Alt. Part Number: 801-20HTW

Harmsco

Harmsco® 801-20HT 9-3/4" Premium Hi-Temp Pleated Filter 20 mic

Part Number: 801-20HT

Alt. Part Number: 801-20HTW

One-time purchase

Subscription

Subscription details

Your price:

Choose

Single

Case of 24

144-Pack 6 Cases of Filters

Quantity

similar items

The Harmsco 801 Series Hi-Temp Filters are highly efficient cartridges made of pleated Polyester-Plus filter media for low pressure drop, high flow capability, increased contaminant removal, long filter runs, reusability, and the lowest cost per gallon filtered.

Features:

High temp cartridges rated up to 200°F
Pleated design with up to 50% more surface area than competitive filters resulting in superior performance and increased contaminant removal
Longer filtration runs for fewer change-outs and less maintenance
Low pressure drop
Thermally bonded for longer usable life
Recommended Flow Rate: 6 gpm
FDA approved materials - NSF 61 certified
Engineered media for superior performance

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Filter Application	Sediment/Dirt/Rust
Max Temp (°F)	200
Micron Rating (Nominal)	20 µm
Surface Area	6 Square Feet
Cap Material	Urethane
Cartridge Style	Drop-in
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE)
Flow Rate	6 GPM
Inner Diameter	1-1/16"
Media Type	Polyester
Micron Rating	20 µm
Origin	USA
Warranty & Certifications
Certifications	NSF/ANSI 61
Product Weight & Dimensions
Product Length	9-3/4"
Product Weight (lbs)	0.52

Product Details
Filter Application	Sediment/Dirt/Rust
Max Temp (°F)	200
Micron Rating (Nominal)	20 µm
Surface Area	6 Square Feet
Cap Material	Urethane
Cartridge Style	Drop-in
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE)
Flow Rate	6 GPM
Inner Diameter	1-1/16"
Media Type	Polyester
Micron Rating	20 µm
Origin	USA
Warranty & Certifications
Certifications	NSF/ANSI 61
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Length	9-3/4"
Product Weight (lbs)	12

Product Details
Filter Application	Sediment/Dirt/Rust
Max Temp (°F)	200
Micron Rating (Nominal)	20 µm
Surface Area	6 Square Feet
Cap Material	Urethane
Cartridge Style	Drop-in
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE)
Flow Rate	6 GPM
Inner Diameter	1-1/16"
Media Type	Polyester
Micron Rating	20 µm
Origin	USA
Warranty & Certifications
Certifications	NSF/ANSI 61
Product Weight & Dimensions
Product Length	9-3/4"
Product Weight (lbs)	74.88

High temp cartridges rated up to 200°F
Pleated design with up to 50% more surface area than competitive filters resulting in superior performance and increased contaminant removal
Longer filtration runs for fewer change-outs and less maintenance
Low pressure drop
Thermally bonded for longer usable life
Recommended Flow Rate: 6 gpm
FDA approved materials - NSF 61 certified
Engineered media for superior performance

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
