Harmsco

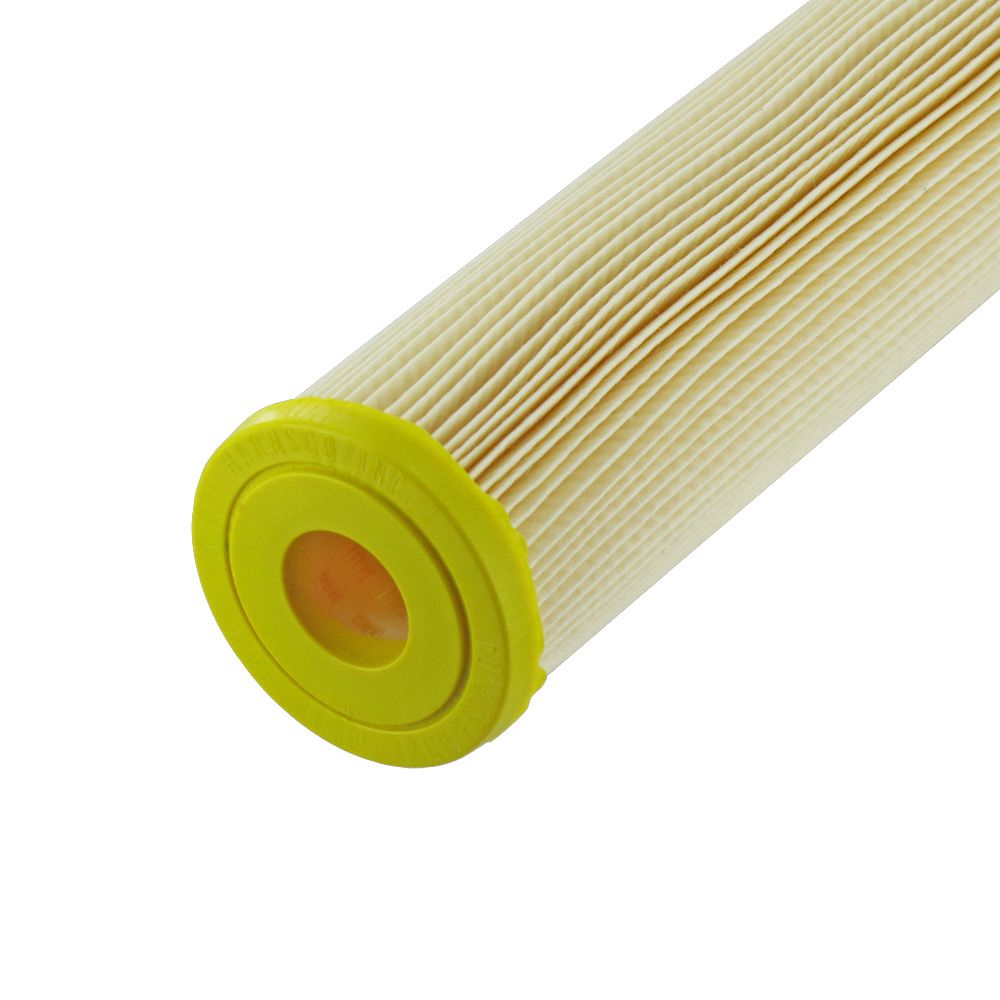

Harmsco® 701-50 10" Premium Pleated Polyester Filter 50 mic

Part Number: 701-50

In Stock

out of stock

In Stock

$9.31

Harmsco 701 Polyester-Plus Series Filter Cartridges are highly efficient filter cartridges made of pleated Polyester-Plus filter media for low pressure drop, high flow capability, increased contaminant removal, long filter runs, reusability, and the lowest cost per gallon filtered. 701 Series filters are designed to fit housings that accept 2-1/2" diameter filters, but are also compatible with Harmsco HIF, BC, HBC and FSSS Series housings.

Features:
  • Design offers more surface area resulting in superior performance and increased contaminant removal
  • Longer filtration runs for fewer change-outs and less maintenance
  • Low pressure drop
  • Thermally bonded for longer usable life
  • Recommended Flow Rate: 4 gpm
  • Engineered media for superior performance
Applications :
  • Reverse Osmosis Pre-Filtration
  • Municipal Drinking Water Filtration
  • Commercial/Residential Drinking Water Filtration
  • Desalination Pre-Filtration
  • Industrial Water Filtration
  • Cooling Tower Filtration
  • Chill Water Loop Filtration
  • Food & Beverage Filtration
  • Marine/Aquatic Filtration




Weight & Dimensions

Weight (lbs)

0.52

Approx Length (Inches)

10" (25.4 cm)

Details

Max Temp (°F)

140

Cap Material

Plastisol (Pliable PVC)

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

28

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

4 GPM

Media Type

Polyester

Micron Rating (Nominal)

50 µm

Origin

USA

Outer Diameter

2-1/2"

Surface Area

5 Square Feet



Harmsco 701 Polyester-Plus Series Filter Cartridges are highly efficient filter cartridges made of pleated Polyester-Plus filter media for low pressure drop, high flow capability, increased contaminant removal, long filter runs, reusability, and the lowest cost per gallon filtered. 701 Series filters are designed to fit housings that accept 2-1/2" diameter filters, but are also compatible with Harmsco HIF, BC, HBC and FSSS Series housings.

Features:
  • Design offers more surface area resulting in superior performance and increased contaminant removal
  • Longer filtration runs for fewer change-outs and less maintenance
  • Low pressure drop
  • Thermally bonded for longer usable life
  • Recommended Flow Rate: 4 gpm
  • Engineered media for superior performance
Applications :
  • Reverse Osmosis Pre-Filtration
  • Municipal Drinking Water Filtration
  • Commercial/Residential Drinking Water Filtration
  • Desalination Pre-Filtration
  • Industrial Water Filtration
  • Cooling Tower Filtration
  • Chill Water Loop Filtration
  • Food & Beverage Filtration
  • Marine/Aquatic Filtration



Weight & Dimensions

Weight (lbs)

0.52

Approx Length (Inches)

10" (25.4 cm)

Details

Max Temp (°F)

140

Cap Material

Plastisol (Pliable PVC)

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

28

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

4 GPM

Media Type

Polyester

Micron Rating (Nominal)

50 µm

Origin

USA

Outer Diameter

2-1/2"

Surface Area

5 Square Feet
