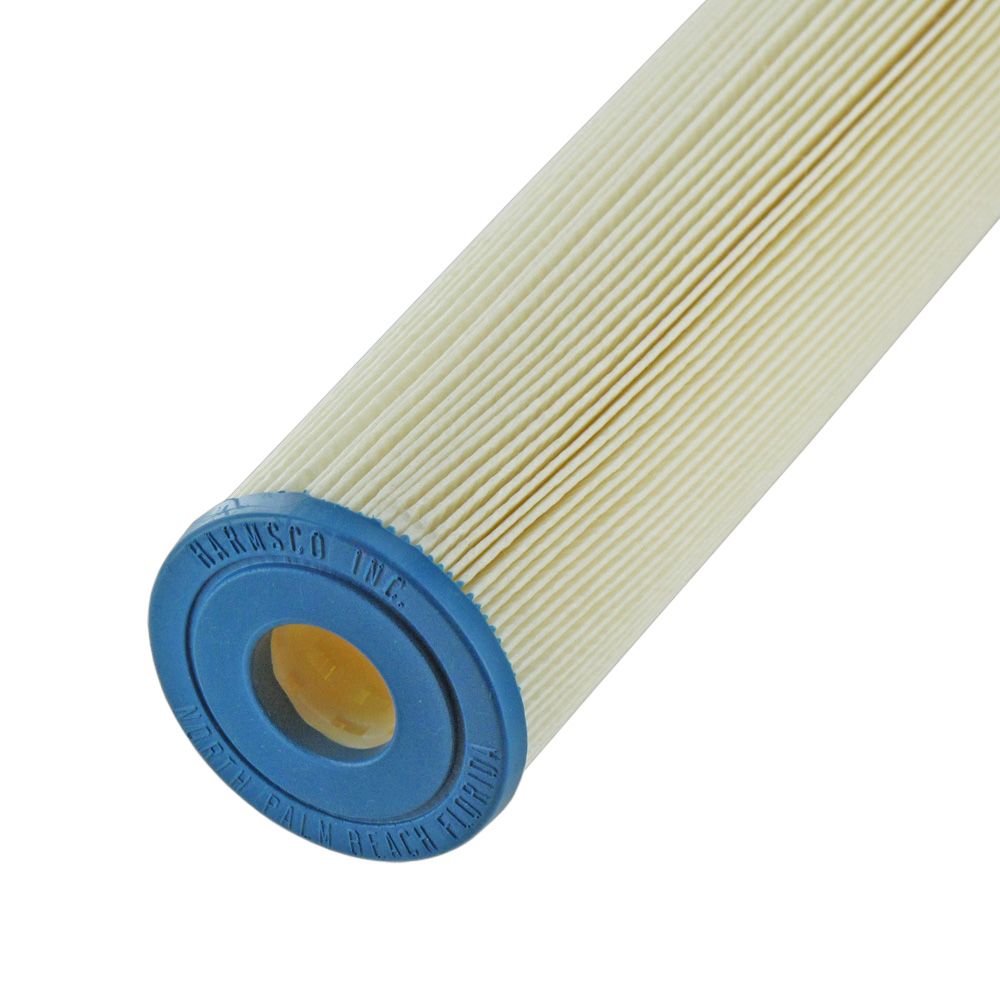

The Harmsco 701 Polyester-Plus Series Filter Cartridges are highly efficient filter cartridges made of pleated Polyester-Plus filter media for low pressure drop, high flow capability, increased contaminant removal, long filter runs, reusability, and the lowest cost per gallon filtered. 701 Series filters are designed to fit housings that accept 2-1/2" diameter filters, but are also compatible with Harmsco HIF, BC, HBC and FSSS Series housings.
Applications:
Applications:
- Reverse Osmosis Pre-Filtration
- Municipal Drinking Water Filtration
- Commercial/Residential Drinking Water Filtration
- Desalination Pre-Filtration
- Industrial Water Filtration
- Cooling Tower Filtration
- Chill Water Loop Filtration
- Food & Beverage Filtration
- Marine/Aquatic Filtration
- Pleated design offers more surface area resulting in superior performance and increased contaminant removal
- Longer filtration runs for fewer change-outs and less maintenance
- Low pressure drop
- Thermally bonded for longer usable life
- Recommended Flow Rate: 4 gpm
- FDA approved materials - NSF 61 certified
- Engineered media for superior performance
Weight & Dimensions
Weight (lbs) | 0.52 |
Approx Length (Inches) | 10" (25.4 cm) |
Details
Max Temp (°F) | 140 |
Cap Material | Plastisol (Pliable PVC) |
Capacity | As Needed |
Cartridge Style | Drop-In |
Case Quantity | 28 |
End Cap Type | Double Open Ended (DOE) |
Filter Application | Sediment/Dirt/Rust |
Flow Rate | 4 GPM |
Media Type | Polyester |
Micron Rating (Nominal) | 20 µm |
Origin | USA |
Outer Diameter | 2-1/2" |
Surface Area | 5 Square Feet |
Warranty & Certifications
Certifications | NSF 61 |
