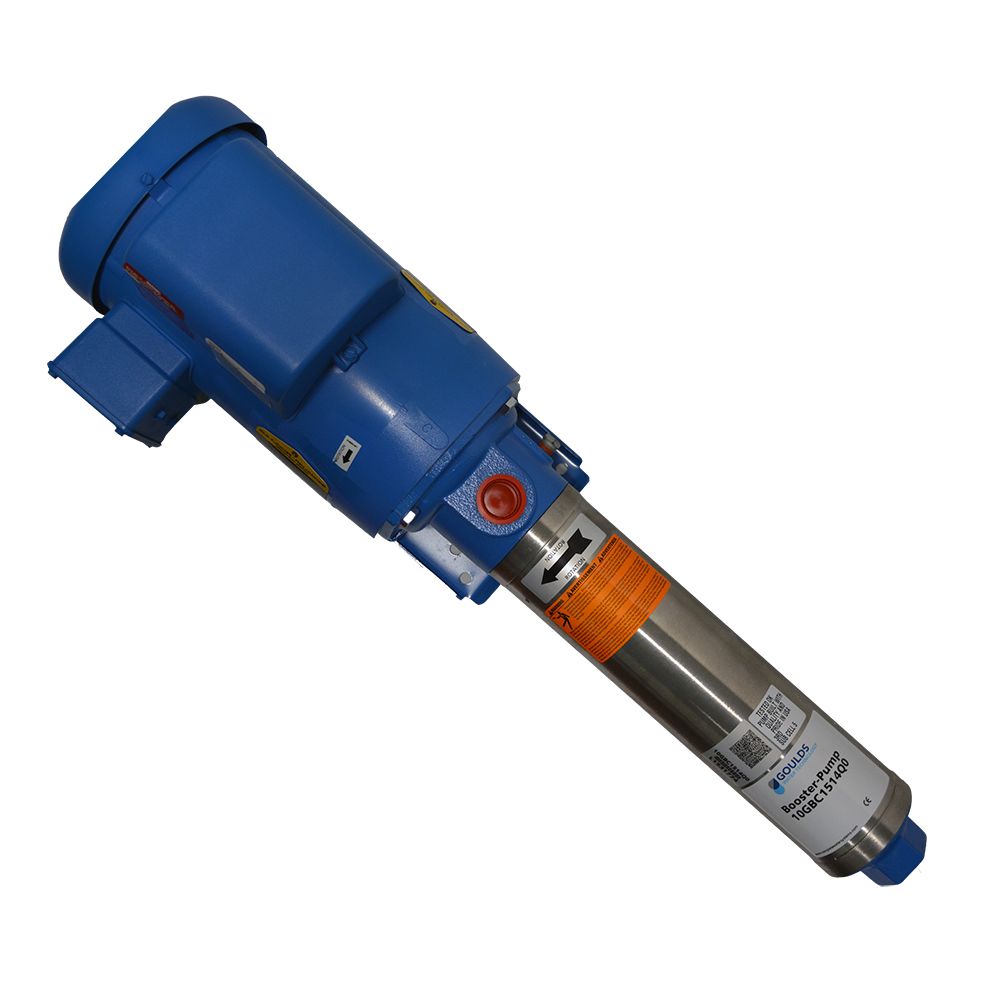

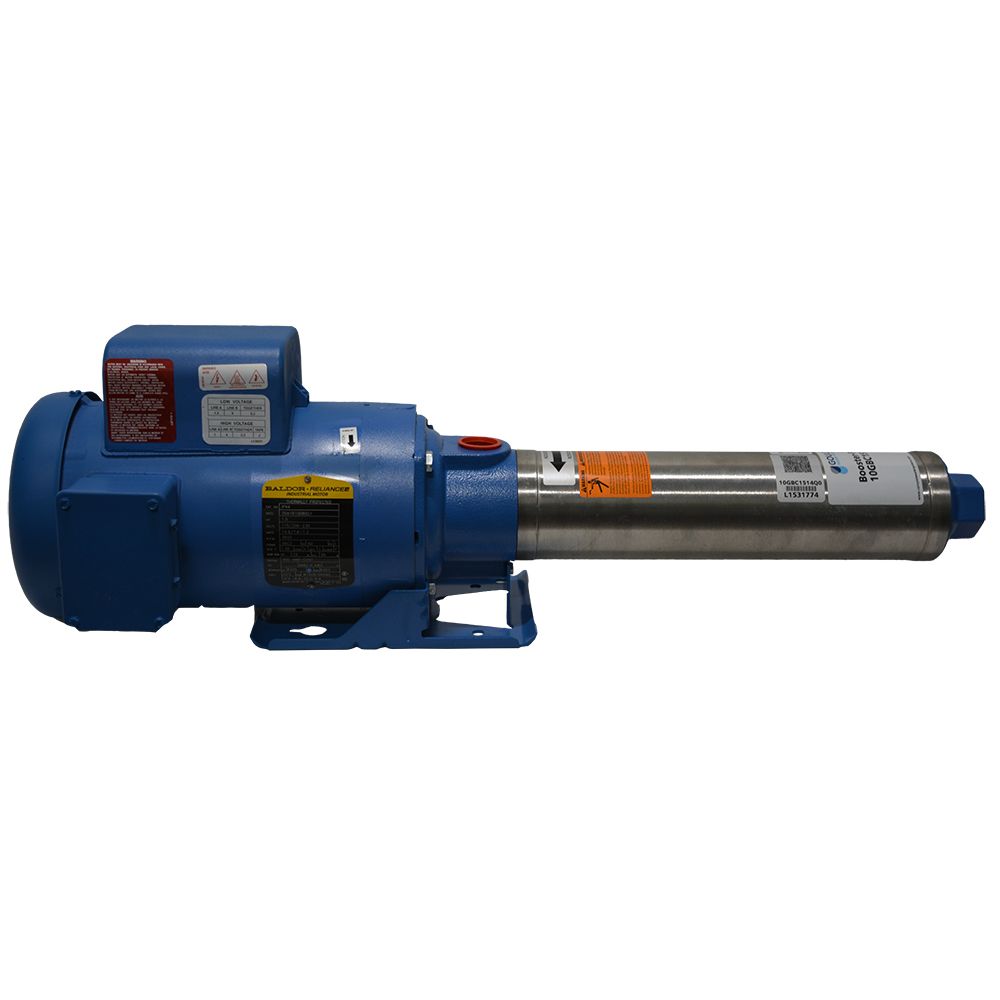

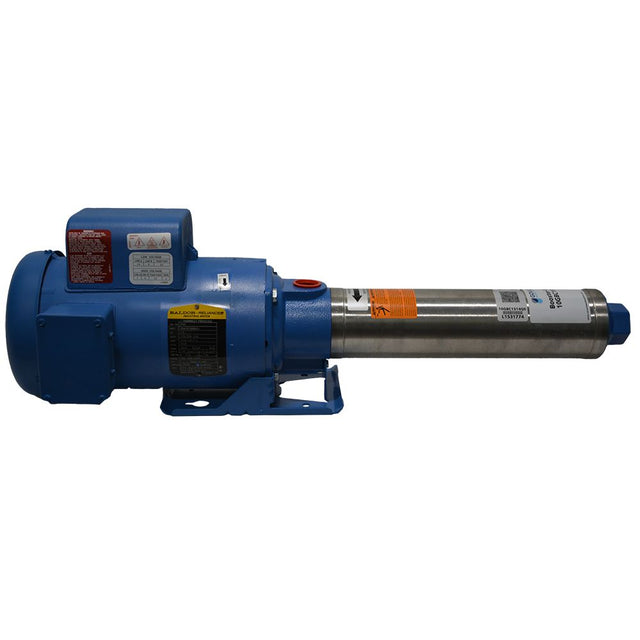

Goulds Water Technology Multi-Stage 1 Phase Pump 1.5 HP 110/220V

Part Number: 200789

Alt. Part Number: 10GBC1514Q0

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

The Goulds Water Technology Multi-Stage Booster Pump is a high pressure booster pump ready to take on your difficult commercial or residential pumping issue. The GB booster pump series provides quiet vibration free operation, while ensuring reliable high pressure service. This pump features a cast iron casing, 1.5 HP motor, and VITON mechanical seal. The motor can run up to 3500 RPM and uses 1" NPT Suction x 1" NPT Discharge connections.

NOTE: Pumps used on open spray applications must be plugged into electrical service which is protected by a Ground Fault Service Interruptor. Failure to do so may result in serious personal injury or death and property damage.
Applications:
  • Residential or Commercial Systems
  • Agricultural Pressure Washing
  • Reverse Osmosis
  • Evaporative Colling Systems
  • Booster Systems
  • Spray Systems
  • Water Circulation
  • Filtration
  • HVAC
  • Farm Systems

Additional Features:
  • O-ring Casing Seal
  • Mechanical Seal to ensuring safety
  • Fixed Impeller Design
  • Voltage: 110/220V




Weight & Dimensions

Approx Height (Inches)

5-3/4"

Approx Length (Inches)

27-1/8"

Approx Width (Inches)

6-1/16"

Details

Flow Rate

3-16 GPM

Liquid Temperature

160 °F

Origin

USA

Power

1.5 hp

Size

1"

Voltage

110VAC, 220VAC

Inlet Pressure

75 PSI

Motor Rpm

3500 RPM

Suction Lift

10 ft.

Max Head Pressure

560 ft./240 psi

Inlet/Outlet Connection

1" MPT

Warranty & Certifications

Warranty

1 Year


Goulds

Goulds




The Goulds Water Technology Multi-Stage Booster Pump is a high pressure booster pump ready to take on your difficult commercial or residential pumping issue. The GB booster pump series provides quiet vibration free operation, while ensuring reliable high pressure service. This pump features a cast iron casing, 1.5 HP motor, and VITON mechanical seal. The motor can run up to 3500 RPM and uses 1" NPT Suction x 1" NPT Discharge connections.

NOTE: Pumps used on open spray applications must be plugged into electrical service which is protected by a Ground Fault Service Interruptor. Failure to do so may result in serious personal injury or death and property damage.
Applications:
  • Residential or Commercial Systems
  • Agricultural Pressure Washing
  • Reverse Osmosis
  • Evaporative Colling Systems
  • Booster Systems
  • Spray Systems
  • Water Circulation
  • Filtration
  • HVAC
  • Farm Systems

Additional Features:
  • O-ring Casing Seal
  • Mechanical Seal to ensuring safety
  • Fixed Impeller Design
  • Voltage: 110/220V



NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Approx Height (Inches)

5-3/4"

Approx Length (Inches)

27-1/8"

Approx Width (Inches)

6-1/16"

Details

Flow Rate

3-16 GPM

Liquid Temperature

160 °F

Origin

USA

Power

1.5 hp

Size

1"

Voltage

110VAC, 220VAC

Inlet Pressure

75 PSI

Motor Rpm

3500 RPM

Suction Lift

10 ft.

Max Head Pressure

560 ft./240 psi

Inlet/Outlet Connection

1" MPT

Warranty & Certifications

Warranty

1 Year
