General Electric

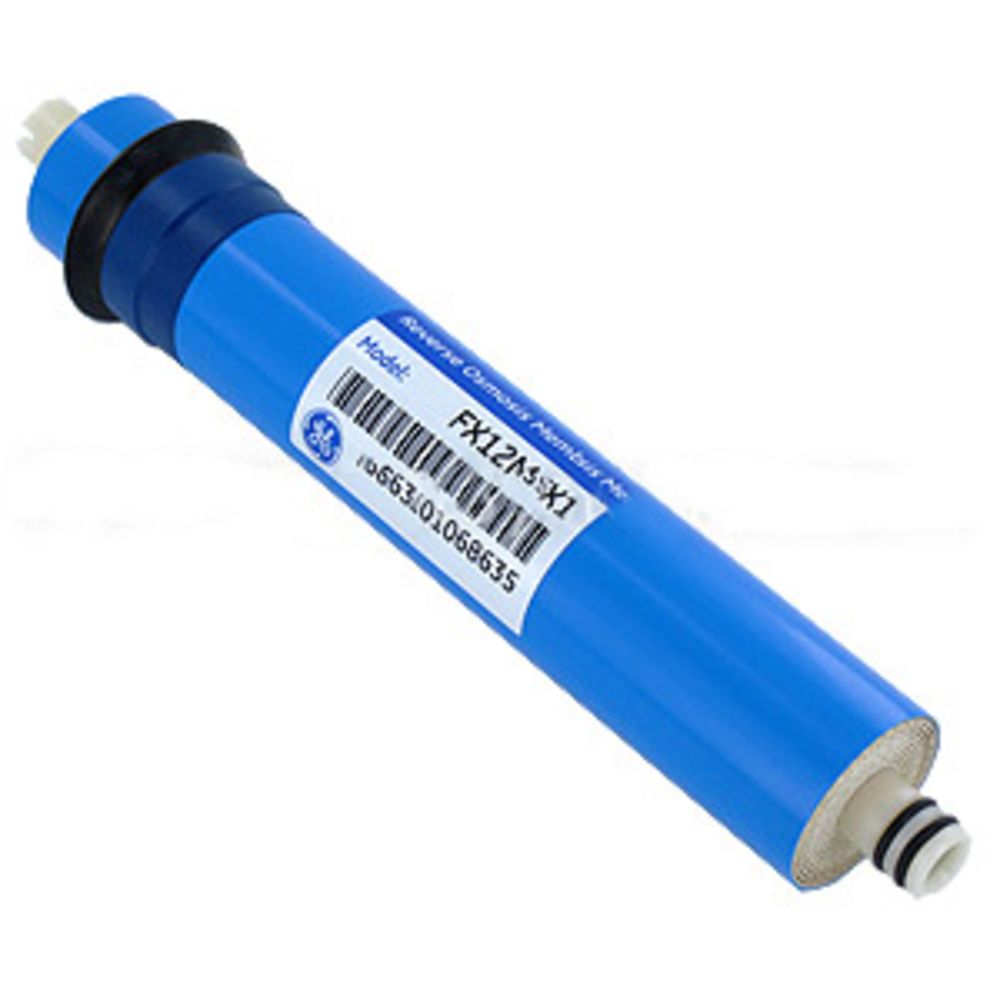

GE SmartWater FX12M TFC RO Membrane Element

Part Number: FX12M

Alt. Part Number: 1220506

In Stock

out of stock

In Stock

This item is discontinued. We recommend the AXEON TFM-36 TFC Residential RO Membrane 35 GPD as a substitute.

GE SmartWater Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.

Residential Applications:
  • Purify varying qualities of saline water
  • Commercial Applications:
  • Drinking water for restaurants
  • Drinking water vending machines
  • Aquarium water treatment
  • Softened water for homes, hotels, commercial laundries and car washes
  • Post-treatment of deionized water
  • Pure water for pharmaceuticals, laboratories and electronics
  • Hemodialysis
  • Oil/water separation

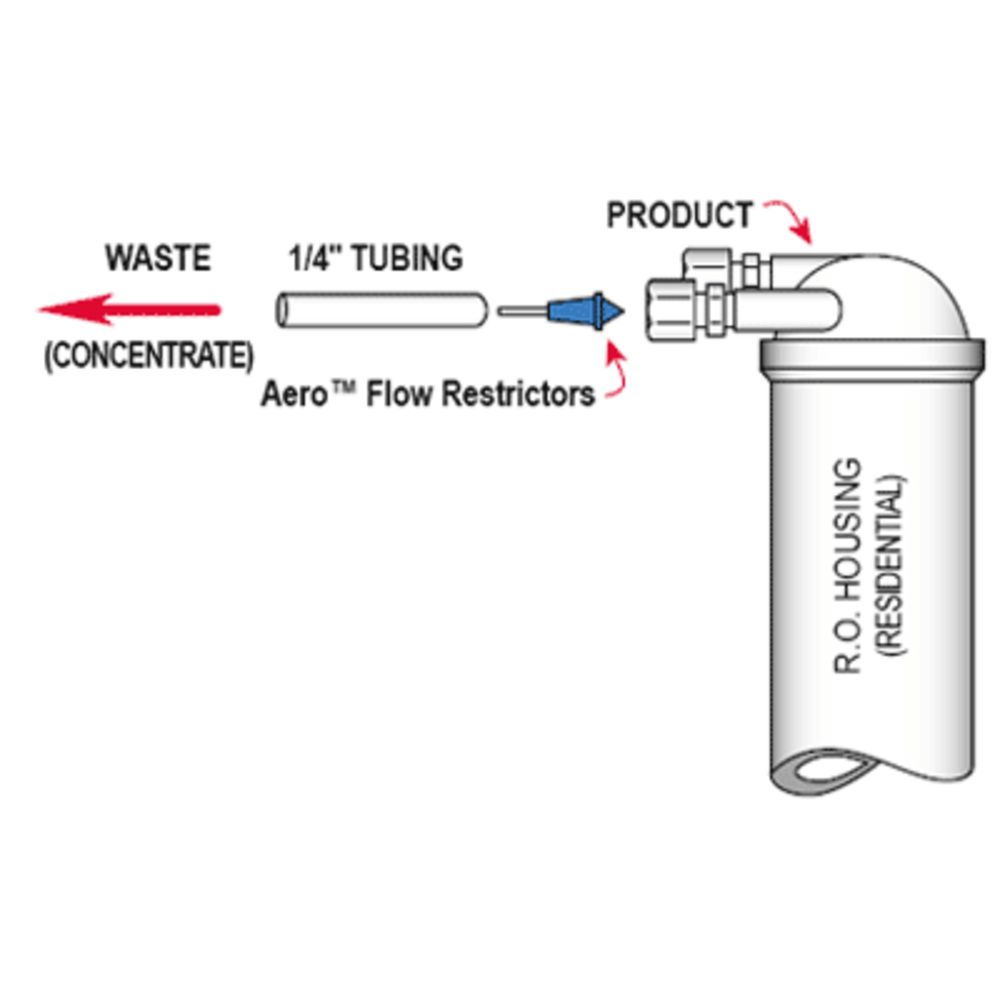

GE suggests that you replace your flow restrictor (FRCT-260) when replacing the GE SmartWater FX12M reverse osmosis membrane.





Weight & Dimensions

Weight (lbs)

0.725

Approx Length (Inches)

11-3/4"

Details

Cartridge Style

Drop-In

Diameter

1.8"

Flow Rate

36 GPD

Inner/Outer Wraps

Tape

Average Nacl Rejection

0.98

Warranty & Certifications

Certifications

ANSI/NSF 58



GE SmartWater Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.

Residential Applications:
  • Purify varying qualities of saline water
  • Commercial Applications:
  • Drinking water for restaurants
  • Drinking water vending machines
  • Aquarium water treatment
  • Softened water for homes, hotels, commercial laundries and car washes
  • Post-treatment of deionized water
  • Pure water for pharmaceuticals, laboratories and electronics
  • Hemodialysis
  • Oil/water separation

GE suggests that you replace your flow restrictor (FRCT-260) when replacing the GE SmartWater FX12M reverse osmosis membrane.




NOTE: This item is discontinued. We recommend the AXEON TFM-36 TFC Residential RO Membrane 35 GPD as a substitute.

Weight & Dimensions

Weight (lbs)

0.725

Approx Length (Inches)

11-3/4"

Details

Cartridge Style

Drop-In

Diameter

1.8"

Flow Rate

36 GPD

Inner/Outer Wraps

Tape

Average Nacl Rejection

0.98

Warranty & Certifications

Certifications

ANSI/NSF 58
