GC Valves

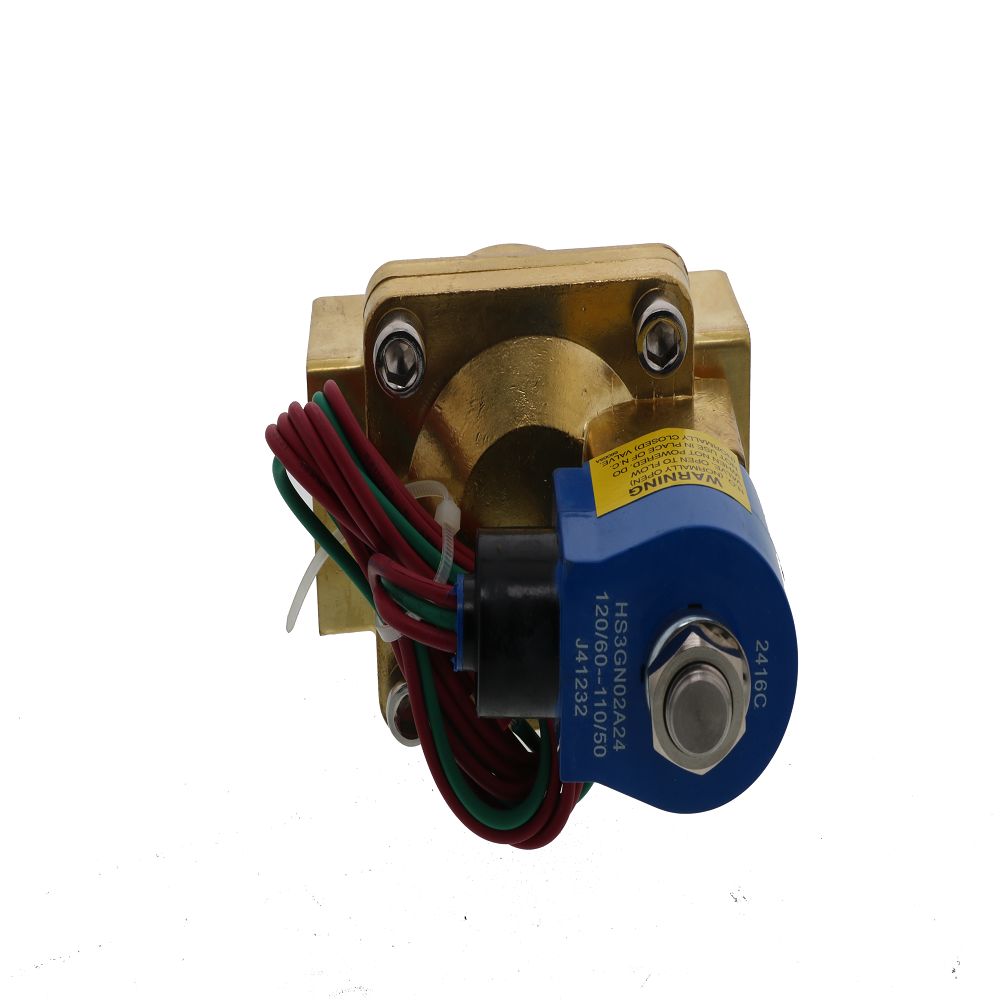

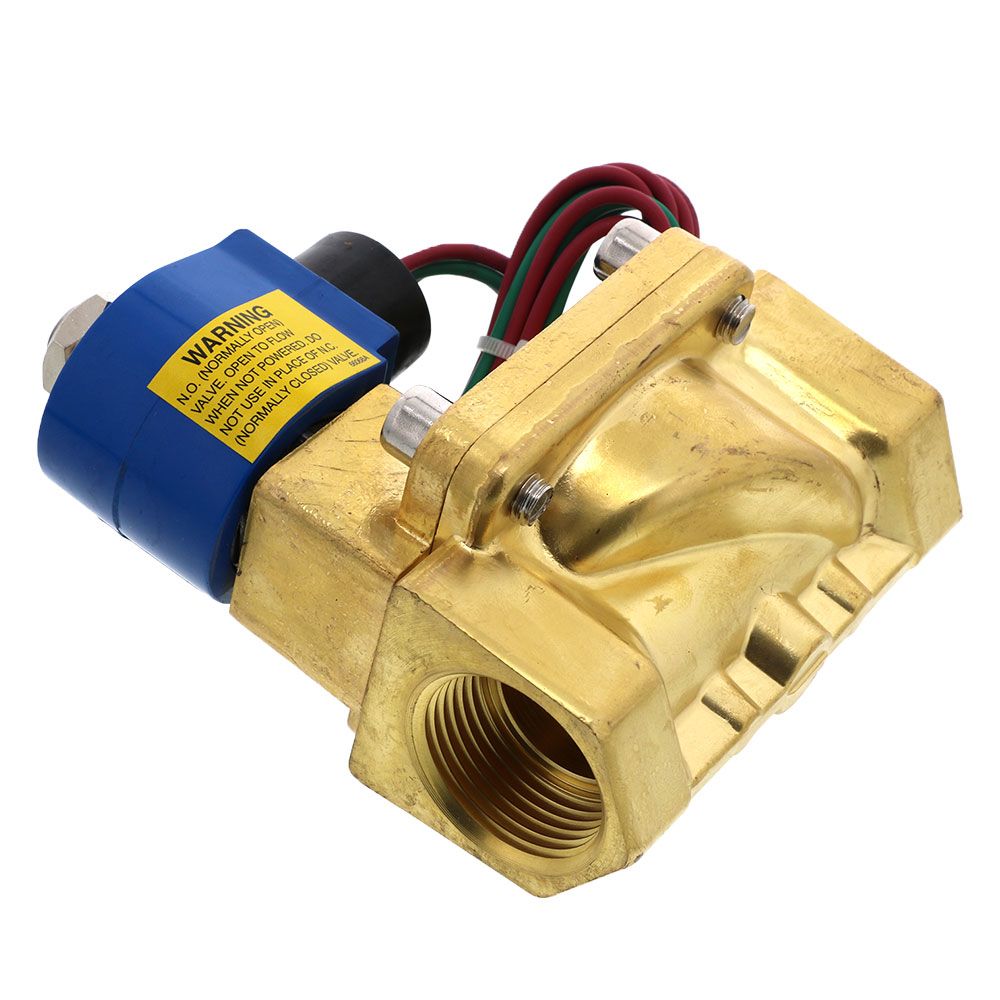

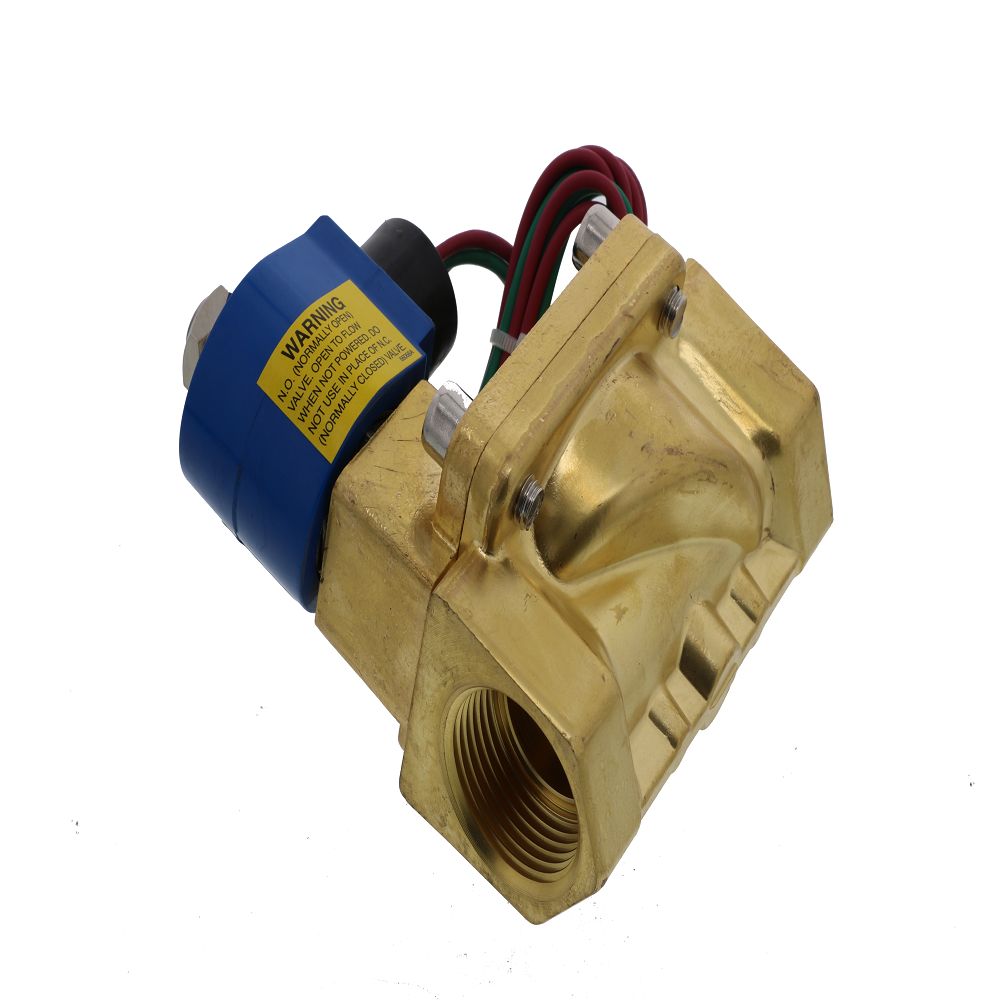

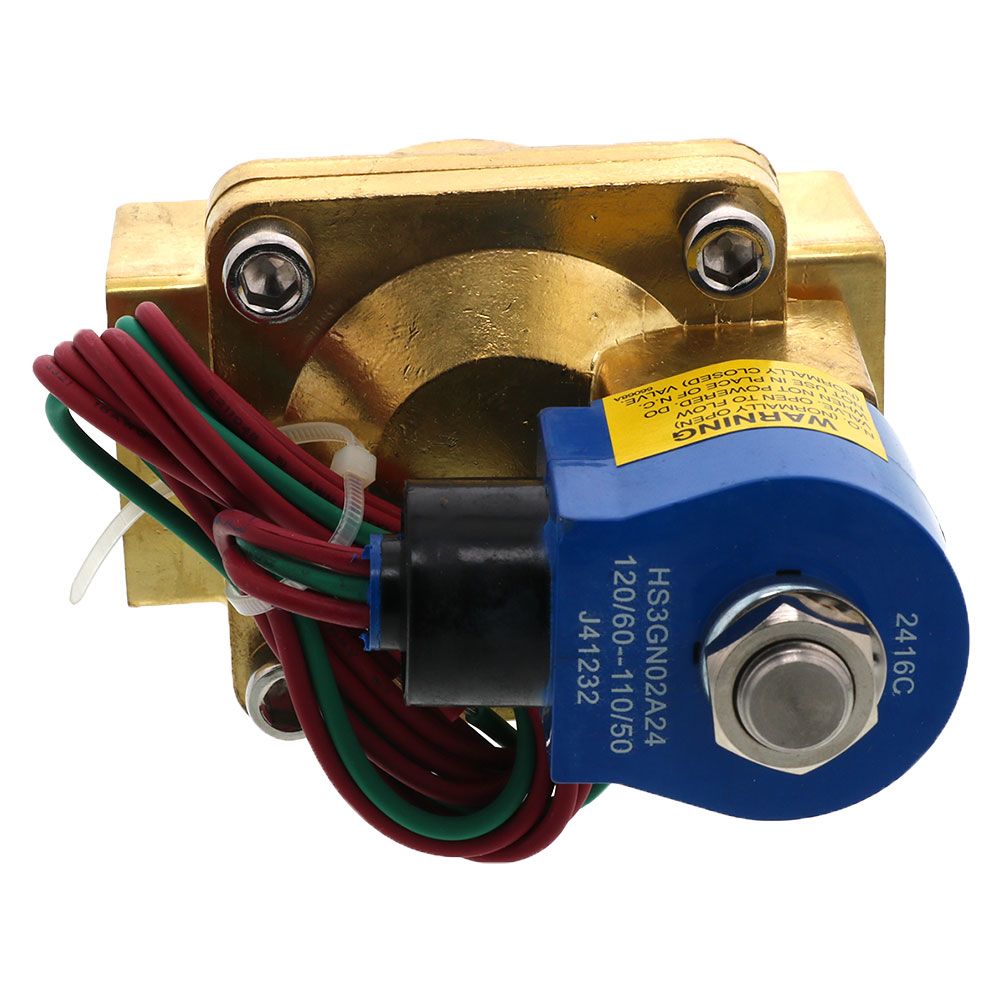

GC Valves S712GF02N9FG9 Solenoid Valve Normally Open 1 NPT 120V

Part Number: S712GF02N9FG9120VAC

Alt. Part Number: 954C-1089, 3110N-662ON-B210DC, 05FZ009A2-1GCA

In Stock

out of stock

In Stock

$143.59


GC Valves S712GF02N9FG9 Normally Open 1" port solenoid valves are designed to allow maximum flow over a wide range of pressures. The 2-way piloted diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of brass and the diaphragm and seals are Nitrile (Buna-N)

Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

Specifications:
  • Ports: 1" NPT Female
  • Body Material: Brass
  • Internal Components: Stainless Steel
  • Seals: NBR (Buna-N)
  • Voltage: 120V AC
  • Duty Cycle: Intermittent
  • Connection Type: 18 AWG Lead Wires
  • Certified to NSF/ANSI Standard 61
  • Made in the USA


Weight & Dimensions

Cord Length

S3

Details

Body Material

Brass

Diameter

1"

Frequency

60/50 Hertz

Mounting Options

Any

Operating Pressure Range

7-225 PSI

Operating Temperature Range

32°F - 120°F

Origin

USA

Power

9 Watts

Seal Material

Nitrile/Buna-N (NBR)

Voltage

120 Volts

Electrical

Leads 24", 18 AWG

Rating

F

Va Inrush / Va Holding

36/18

Port Size

1" FPT Inches

Warranty & Certifications

Certifications

UL Listed; CSA Listed


GC





GC Valves S712GF02N9FG9 Normally Open 1" port solenoid valves are designed to allow maximum flow over a wide range of pressures. The 2-way piloted diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of brass and the diaphragm and seals are Nitrile (Buna-N)

Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

Specifications:
  • Ports: 1" NPT Female
  • Body Material: Brass
  • Internal Components: Stainless Steel
  • Seals: NBR (Buna-N)
  • Voltage: 120V AC
  • Duty Cycle: Intermittent
  • Connection Type: 18 AWG Lead Wires
  • Certified to NSF/ANSI Standard 61
  • Made in the USA

Weight & Dimensions

Cord Length

S3

Details

Body Material

Brass

Diameter

1"

Frequency

60/50 Hertz

Mounting Options

Any

Operating Pressure Range

7-225 PSI

Operating Temperature Range

32°F - 120°F

Origin

USA

Power

9 Watts

Seal Material

Nitrile/Buna-N (NBR)

Voltage

120 Volts

Electrical

Leads 24", 18 AWG

Rating

F

Va Inrush / Va Holding

36/18

Port Size

1" FPT Inches

Warranty & Certifications

Certifications

UL Listed; CSA Listed
