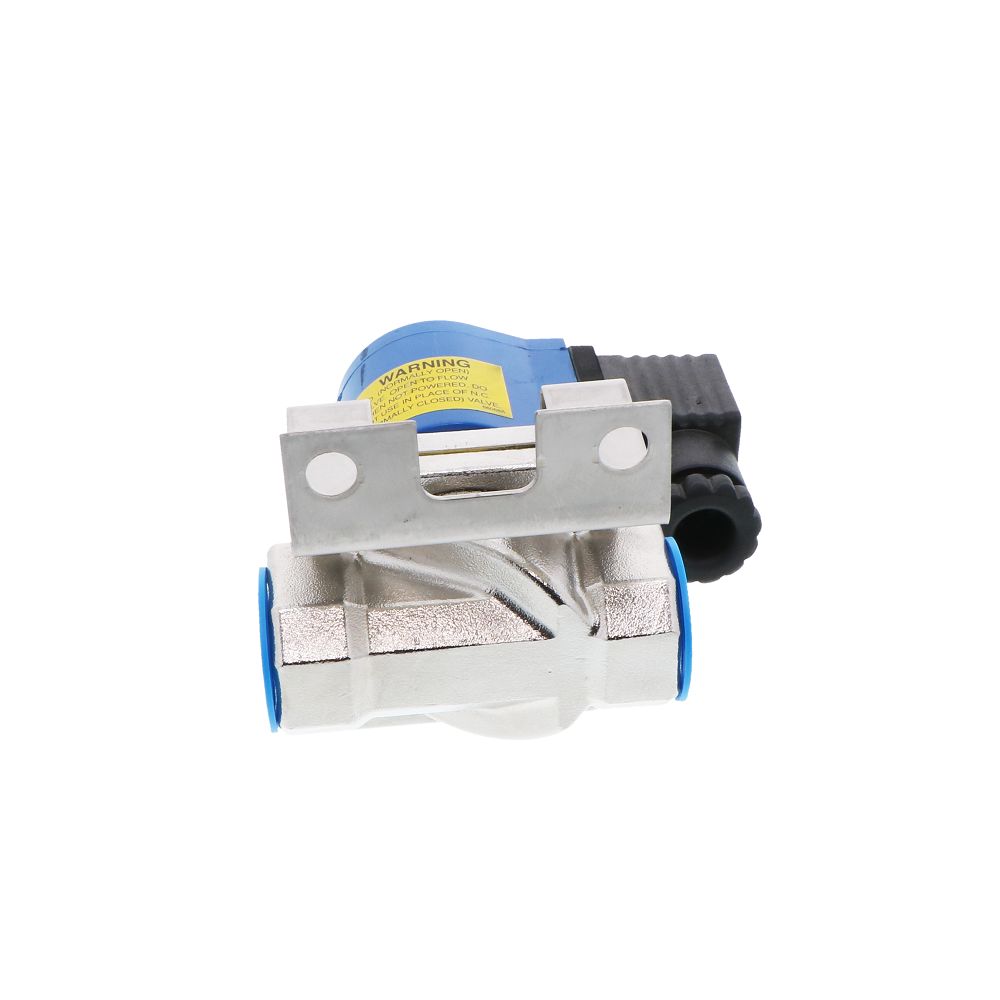

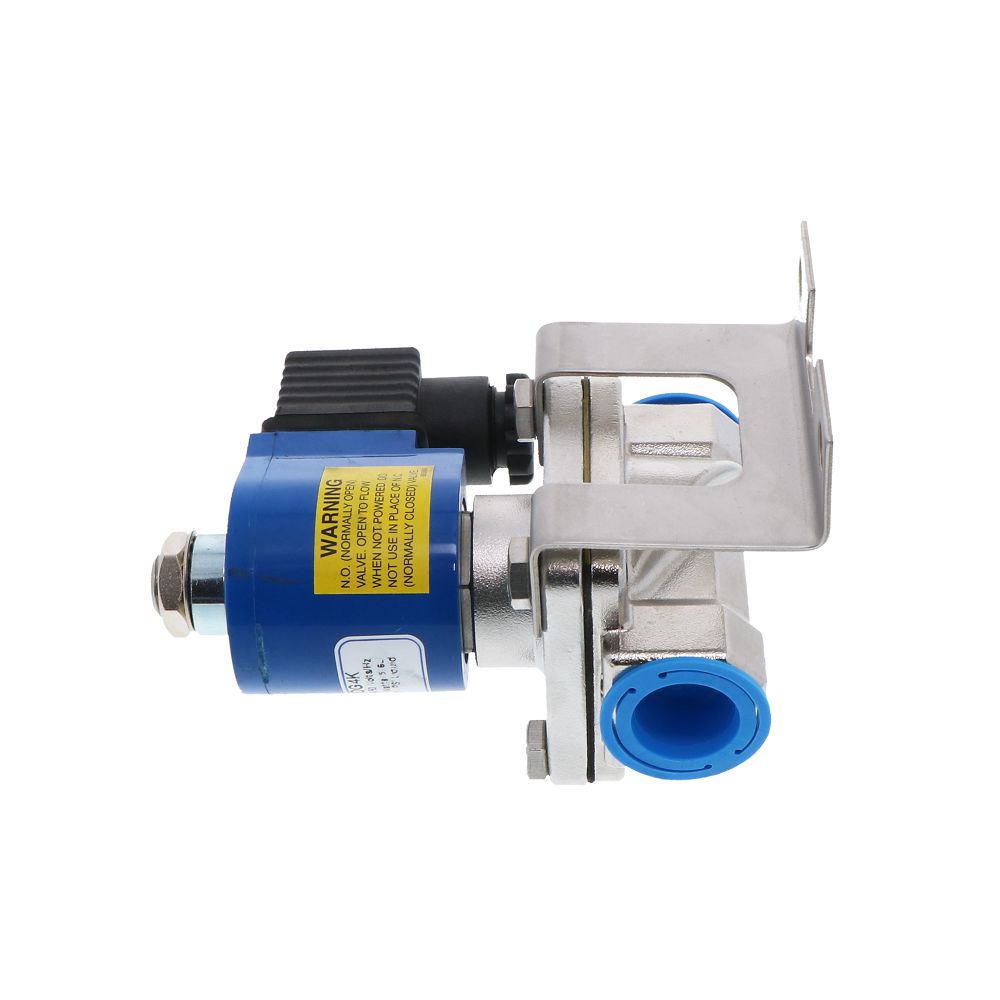

GC Valves S212YF02L7DG4K Solenoid Valve Normally Open 1/2" NPT 110v

Part Number: S212YF02L7DG4K

Alt. Part Number: S212YF02K7DG4K

In Stock

out of stock

In Stock

$262.99


GC Valves S212YF02L7DG4K Normally Open Solenoid Valve is designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of stainless steel and the diaphragm and seals are viton.

Specifications:
  • Ports: 1/2" FPT
  • Body Material: stainless steel
  • Internal Components: stainless steel
  • Seals: viton
  • Voltage: 110v
  • Duty Cycle: continuous
  • Connection Type: 18 AWG Lead Wires with 1/2" Female Conduit
  • Certified to NSF/ANSI Standard 61
  • Made in the USA
Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC


Weight & Dimensions

Cord Length

S4

Details

Body Material

Stainless Steel

Diameter

5/8 Inches

Mounting Options

Any

Operating Pressure Range

3-200 PSI

Operating Temperature Range

32°F - 120°F

Seal Material

Viton/FKM

Voltage

110v

Watts

11

Rating

F

Va Inrush / Va Holding

46/22

Wetted Materials

Stainless Steel

Warranty & Certifications

Certifications

NSF 61, ANNEX G; UL Listed; CSA Listed


GC





GC Valves S212YF02L7DG4K Normally Open Solenoid Valve is designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of stainless steel and the diaphragm and seals are viton.

Specifications:
  • Ports: 1/2" FPT
  • Body Material: stainless steel
  • Internal Components: stainless steel
  • Seals: viton
  • Voltage: 110v
  • Duty Cycle: continuous
  • Connection Type: 18 AWG Lead Wires with 1/2" Female Conduit
  • Certified to NSF/ANSI Standard 61
  • Made in the USA
Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

Weight & Dimensions

Cord Length

S4

Details

Body Material

Stainless Steel

Diameter

5/8 Inches

Mounting Options

Any

Operating Pressure Range

3-200 PSI

Operating Temperature Range

32°F - 120°F

Seal Material

Viton/FKM

Voltage

110v

Watts

11

Rating

F

Va Inrush / Va Holding

46/22

Wetted Materials

Stainless Steel

Warranty & Certifications

Certifications

NSF 61, ANNEX G; UL Listed; CSA Listed
