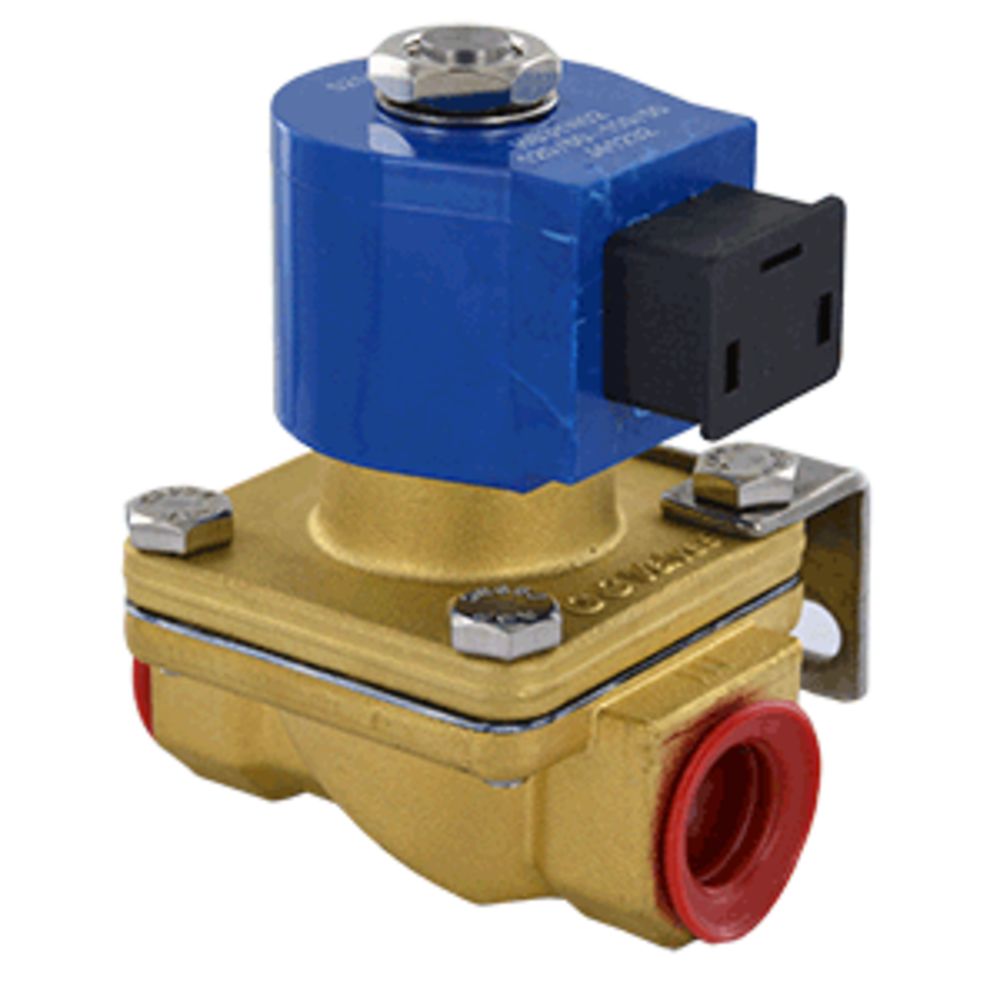

GC Valves S211YF02N5DG4K Solenoid Valve Normally Closed Brass 1/2" NPT 120v
Part Number: S211YF02N5DG4K
Alt. Part Number: P04001213N1AM
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Ports: 1/2" FPT
- Body Material: brass
- Internal Components: stainless steel
- Seals: nitrile
- Voltage: 110v
- Duty Cycle: continuous
- Connection Type: 18 AWG Lead Wires with 1/2" Female Conduit
- Certified to NSF/ANSI Standard 61
- Made in the USA
- Car Wash
- General Industrial
- Process Applications
- Water Industries
- HVAC
Product Details | |
---|---|
Body Material | Brass |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 120 |
Min Pressure (Psi) | 4 |
Min Temp (°F) | 32 |
Power | Leads 24" 18 AWG 11 Watts |
Psid@Flow Rate | 1 PSI @ 4.3 GPM |
Rating | F |
Seal Material | Nitrile/Buna-N (NBR) |
Va Inrush / Va Holding | 36/13 |
Wetted Materials | Stainless Steel Brass |
Diameter | 5/8" |
Port Size | 1/2" |
Voltage | 110vac |
Warranty & Certifications | |
Certifications | NSF 61, ANNEX G, UL Listed, CSA Listed |
Shipping Dimensions | |
Shipping Length | 4.63 in. |
Shipping Width | 4.25 in. |
Shipping Height | 3.25 in. |
Product Weight & Dimensions | |
Product Height | 3.25 in. |
Product Length | 4.63 in. |
Product Width | 4.25 in. |
Product Weight (lbs) | 1.05625 |
Specifications:
- Ports: 1/2" FPT
- Body Material: brass
- Internal Components: stainless steel
- Seals: nitrile
- Voltage: 110v
- Duty Cycle: continuous
- Connection Type: 18 AWG Lead Wires with 1/2" Female Conduit
- Certified to NSF/ANSI Standard 61
- Made in the USA
- Car Wash
- General Industrial
- Process Applications
- Water Industries
- HVAC
Product Details | |
---|---|
Body Material | Brass |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 120 |
Min Pressure (Psi) | 4 |
Min Temp (°F) | 32 |
Power | Leads 24" 18 AWG 11 Watts |
Psid@Flow Rate | 1 PSI @ 4.3 GPM |
Rating | F |
Seal Material | Nitrile/Buna-N (NBR) |
Va Inrush / Va Holding | 36/13 |
Wetted Materials | Stainless Steel Brass |
Diameter | 5/8" |
Port Size | 1/2" |
Voltage | 110vac |
Warranty & Certifications | |
Certifications | NSF 61, ANNEX G, UL Listed, CSA Listed |
Shipping Dimensions | |
Shipping Length | 4.63 in. |
Shipping Width | 4.25 in. |
Shipping Height | 3.25 in. |
Product Weight & Dimensions | |
Product Height | 3.25 in. |
Product Length | 4.63 in. |
Product Width | 4.25 in. |
Product Weight (lbs) | 1.05625 |
