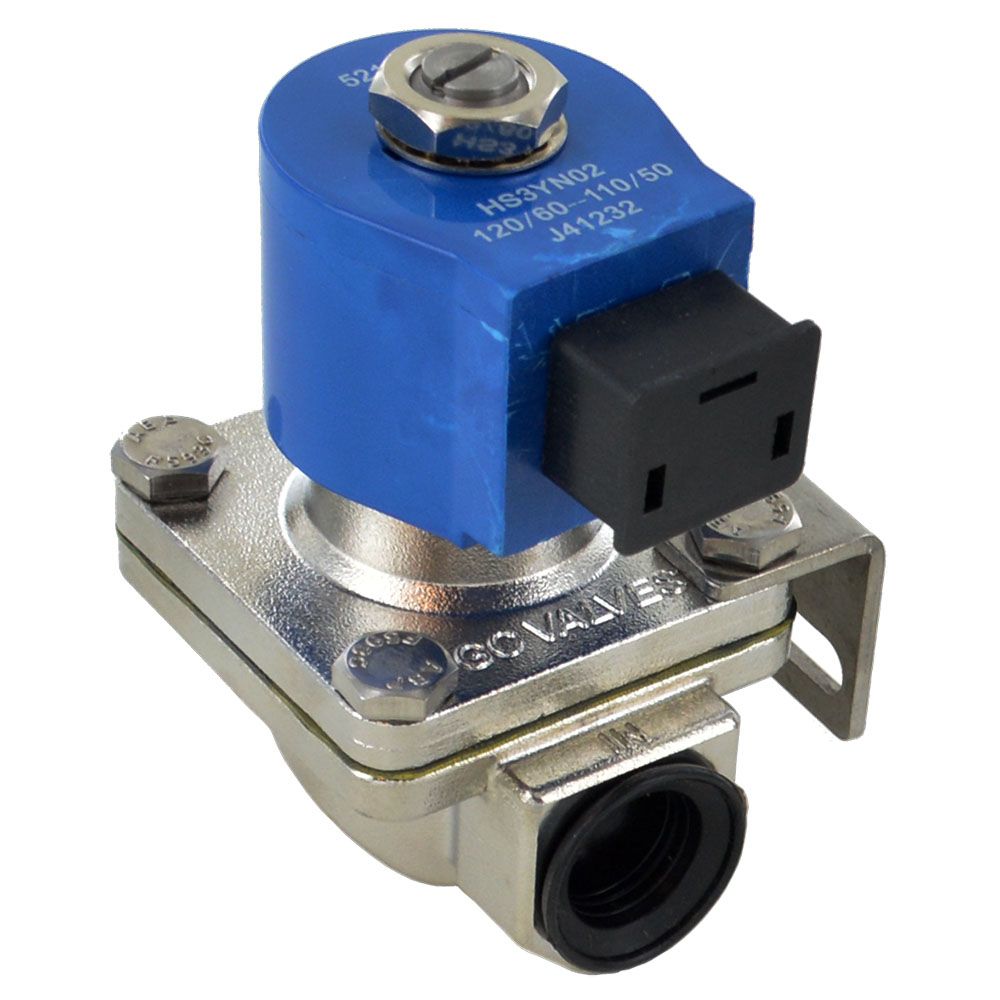

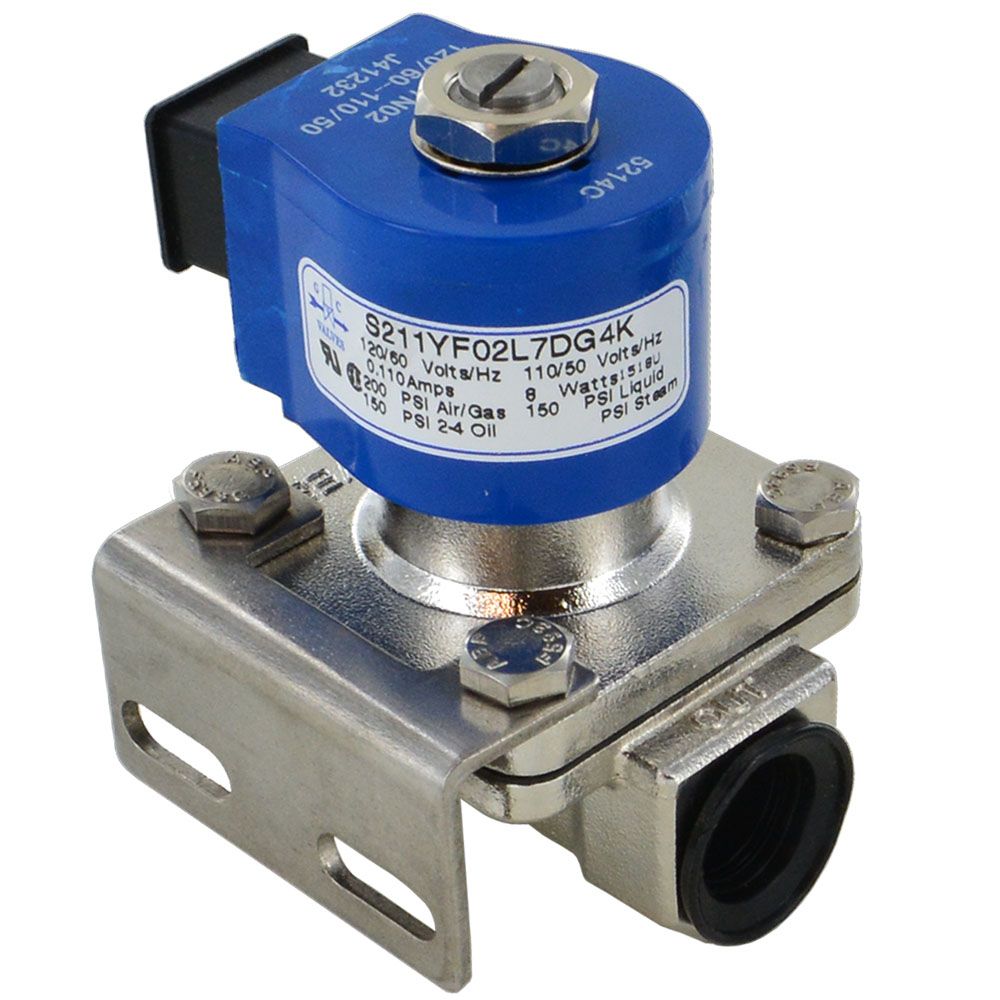

GC Valves S211YF02L7DG4K Solenoid Valve Normally Closed 1/2" NPT 110v

Part Number: S211YF02L7DG4K

In Stock

out of stock

In Stock

$262.99


The GC Valves S211YF02L7DG4K Normally Closed Solenoid Valve is designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of stainless steel and the diaphragm and seals are viton.

Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

Features:
  • Ports: 1/2" FPT
  • Body Material: stainless steel
  • Internal Components: stainless steel
  • Seals: viton
  • Voltage: 110v
  • Duty Cycle: continuous
  • Connection Type: 18 AWG lead wires with 1/2" female conduit
  • Certified to NSF/ANSI Standard 61
  • Made in the USA


Details

Flow Factor (Metric Or English)

4.3

Body Material

Stainless Steel

Diameter

5/8 Inches

Mounting Options

Any

Operating Pressure Range

4-150 PSI

Operating Temperature Range

32°F - 120°F

Power

11 Watts

Seal Material

Viton/FKM

Voltage

110vac

Watts

36/13

Rating

F

Wetted Materials

Stainless Steel

Port Size

1/2 Inches

Warranty & Certifications

Certifications

NSF 61, ANNEX G


GC





The GC Valves S211YF02L7DG4K Normally Closed Solenoid Valve is designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of stainless steel and the diaphragm and seals are viton.

Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

Features:
  • Ports: 1/2" FPT
  • Body Material: stainless steel
  • Internal Components: stainless steel
  • Seals: viton
  • Voltage: 110v
  • Duty Cycle: continuous
  • Connection Type: 18 AWG lead wires with 1/2" female conduit
  • Certified to NSF/ANSI Standard 61
  • Made in the USA

Details

Flow Factor (Metric Or English)

4.3

Body Material

Stainless Steel

Diameter

5/8 Inches

Mounting Options

Any

Operating Pressure Range

4-150 PSI

Operating Temperature Range

32°F - 120°F

Power

11 Watts

Seal Material

Viton/FKM

Voltage

110vac

Watts

36/13

Rating

F

Wetted Materials

Stainless Steel

Port Size

1/2 Inches

Warranty & Certifications

Certifications

NSF 61, ANNEX G
