Air Gap International

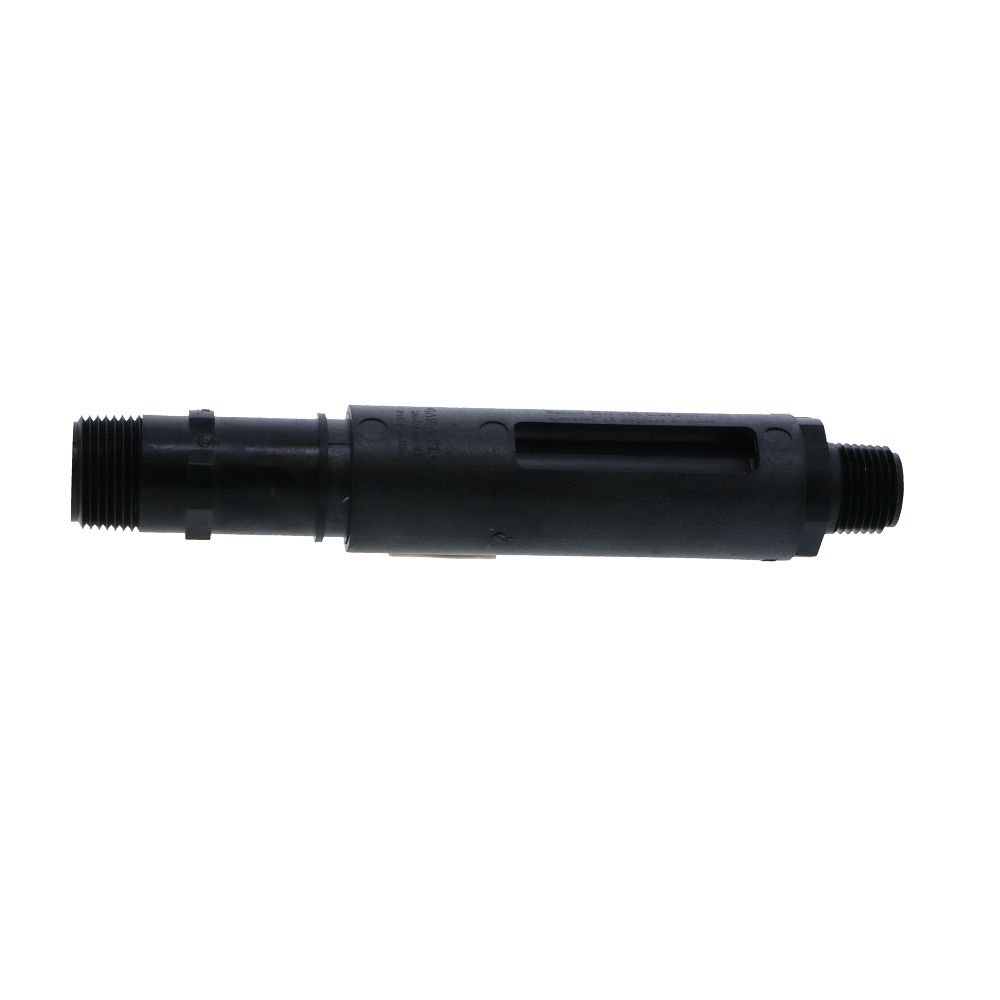

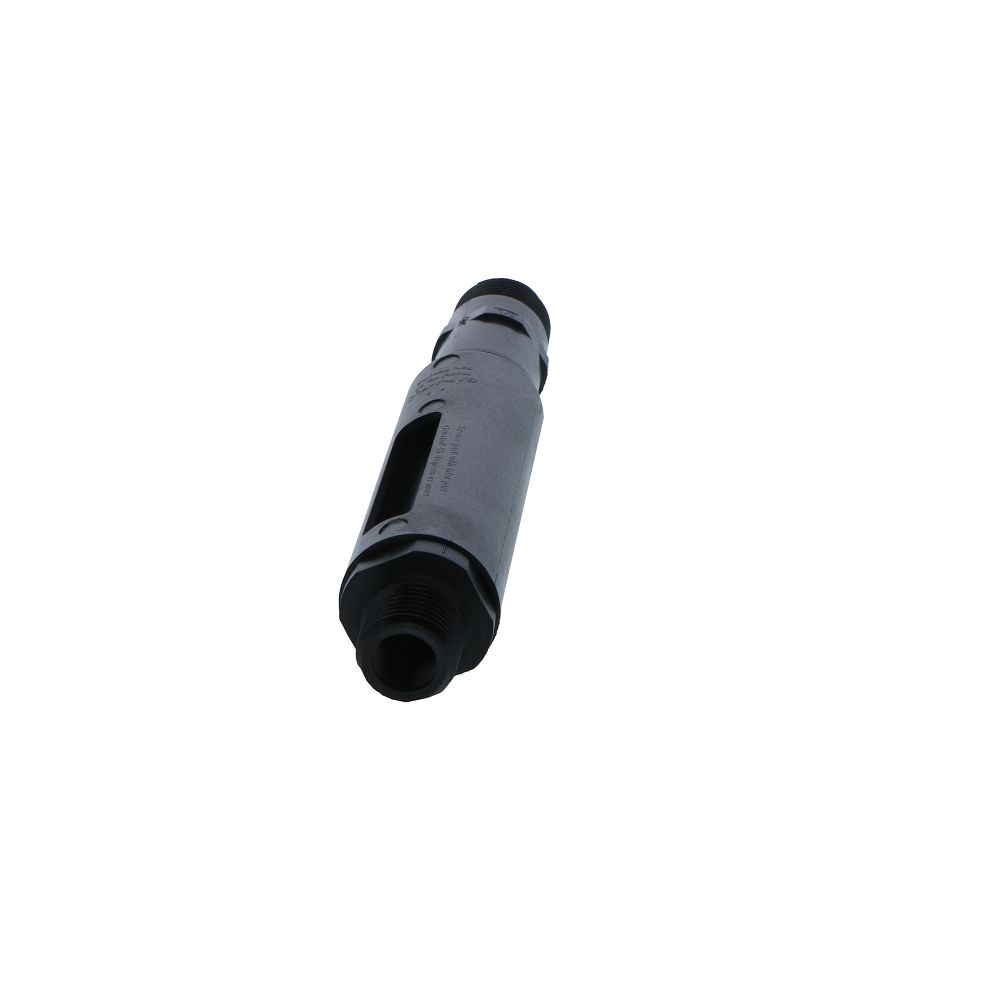

Gap-A-Flo AG150-001 Inline Airgap 7 GPM

Part Number: 211211

In Stock

out of stock

In Stock

$19.95

Provides an in-line air gap, usually installed in the last 5 feet (1.5 meters) of the indirect drain piping and must be in the down leg of the drain line piping.

Specifications:
  • Unit can be tilted at any angle (down as low as 45° angle) when installing if needed

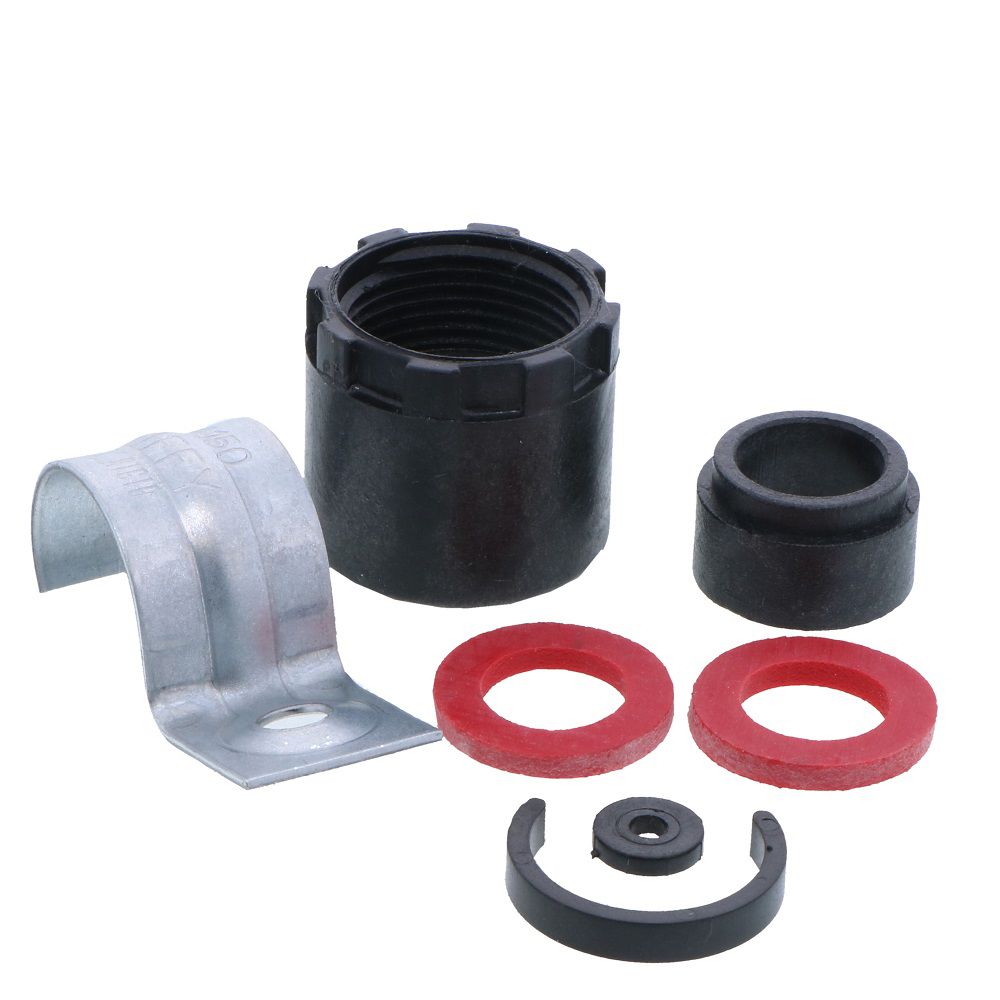

  • Molded clamp groove plus included "Jiffy Clip" enable easy vertical wall mounting
  • Unique design incorporates a rotatable splash guard/splatter shield, to eliminate splatter of water droplets out of either air gap opening
  • Unit approximately 8" (20.32 cm) long
  • Unit design lab tested at 15 G.P.M. (56.8 Liters/minute). Recommended usage is 1 to 7 G.P.M. (3.7 to 26.5 Liters/minute)
  • All noted threads are American NPT threads
  • Use the 1/4" F.I.P. threads only with injector washer (P/N 211207) with flow rates less than 1 GPM. Injector washer should be fully seated in top of unit. Push washer down using a wooden pencil or similar object.
  • Multiple air gap openings far exceed the code mandated minimum of 1" vertical.
  • Listed by NSF and UPC


Gap-A-Flo

Gap-A-Flo




Provides an in-line air gap, usually installed in the last 5 feet (1.5 meters) of the indirect drain piping and must be in the down leg of the drain line piping.

Specifications:
  • Unit can be tilted at any angle (down as low as 45° angle) when installing if needed
  • Molded clamp groove plus included "Jiffy Clip" enable easy vertical wall mounting
  • Unique design incorporates a rotatable splash guard/splatter shield, to eliminate splatter of water droplets out of either air gap opening
  • Unit approximately 8" (20.32 cm) long
  • Unit design lab tested at 15 G.P.M. (56.8 Liters/minute). Recommended usage is 1 to 7 G.P.M. (3.7 to 26.5 Liters/minute)
  • All noted threads are American NPT threads
  • Use the 1/4" F.I.P. threads only with injector washer (P/N 211207) with flow rates less than 1 GPM. Injector washer should be fully seated in top of unit. Push washer down using a wooden pencil or similar object.
  • Multiple air gap openings far exceed the code mandated minimum of 1" vertical.
  • Listed by NSF and UPC
