GAP-A-DRAIN AG180-002 Universal Airgap
GAP-A-DRAIN AG180-002 Universal Airgap
Part Number: AG180-002
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
More expected soon
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.

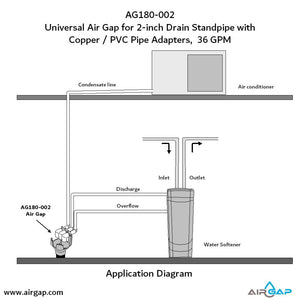

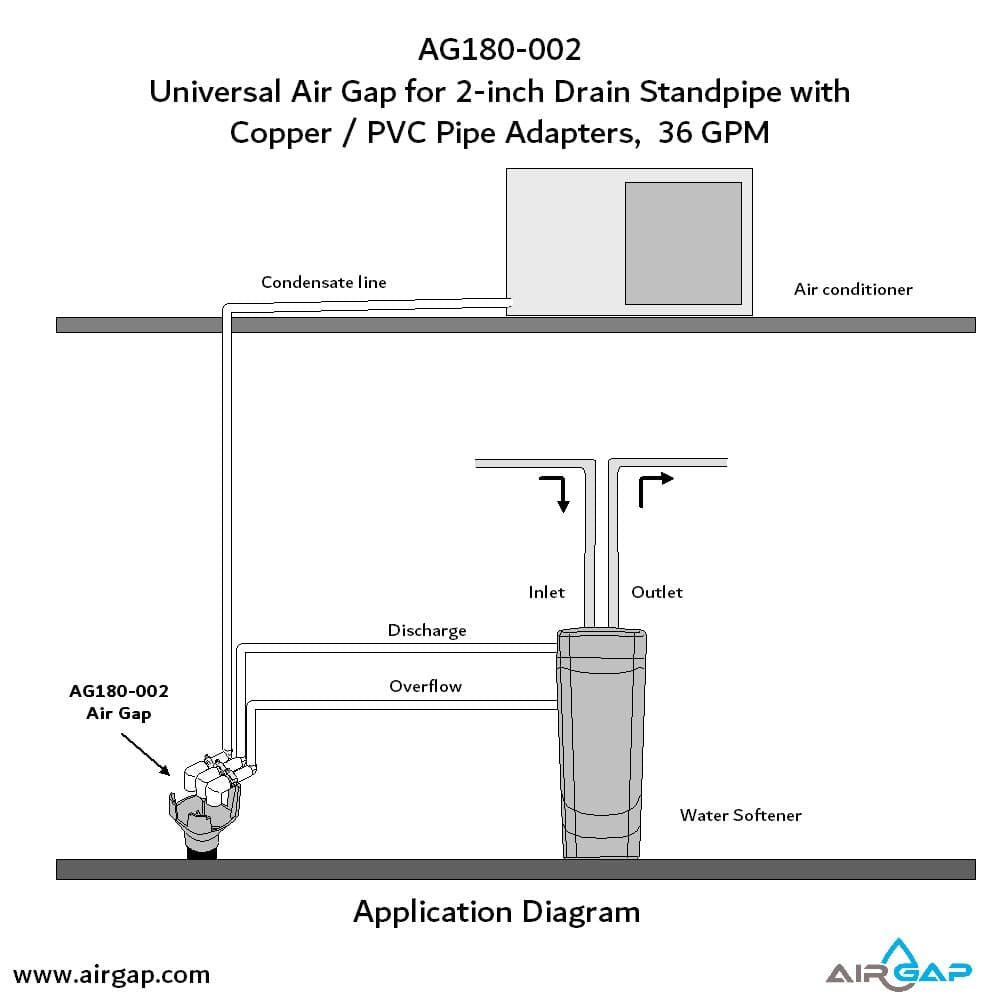

The GAP-A-DRAIN AG180-002 Universal Airgap provides an effective way of connecting condensate, water softener, and RO and iron water filter discharge to a floor drain or 2-inch standpipe. This universal air gap installs into 2-inch standpipes or sits on top and attaches directly to a floor drain grill. This air gap connects to any floor drain grill using a stainless hook. Once connected to the drain grill, all water is discharged through the air gap.
Features:
Features:

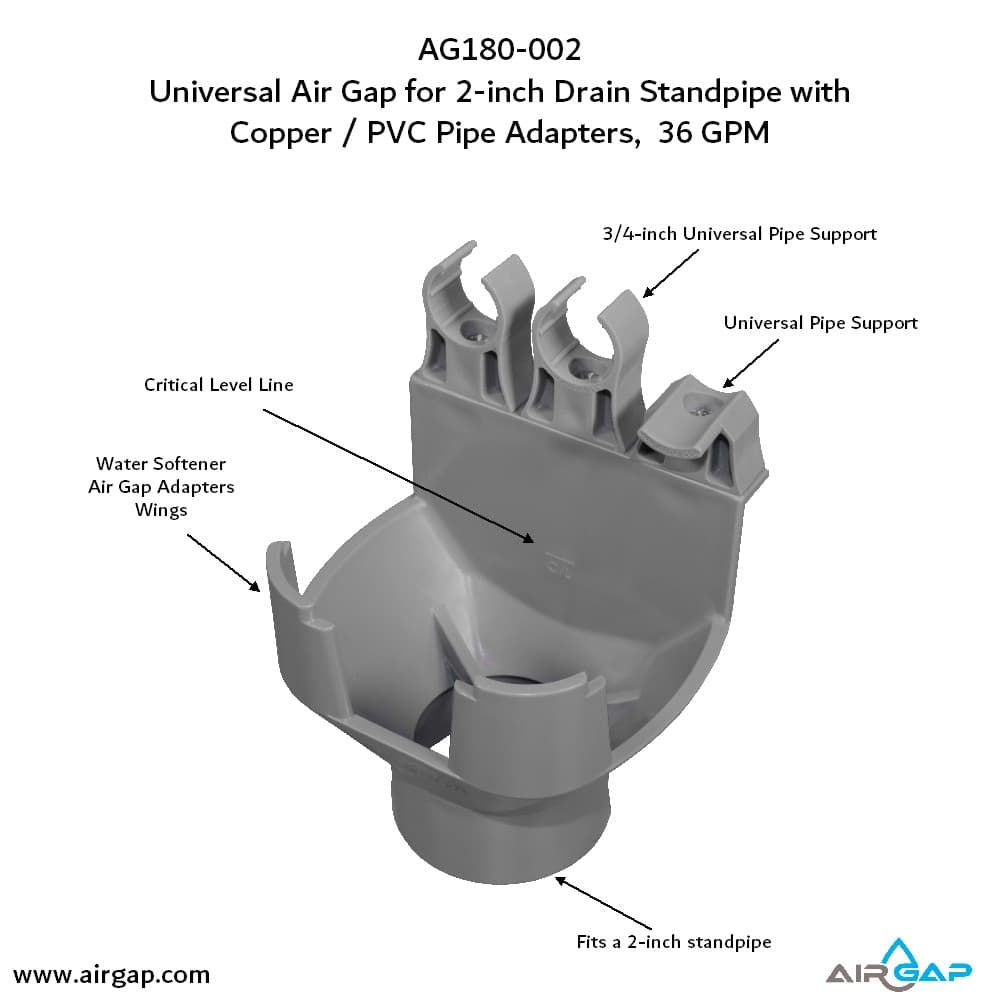

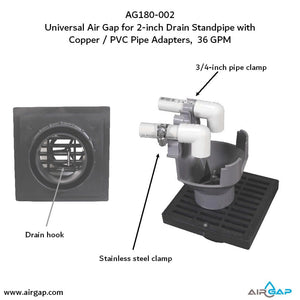

- Easy To Connect: The AG180-002 air gap comes with pipe support adapters for 1/2-inch or 3/4-inch PVC and copper pipe connection. Snap-in retainer provides a simple way to secure 1/2-inch pipes. For larger pipes, use a pipe support adapter and a stainless-steel worm clamp. For pipes to stay in place, ensure they are secured to a support structure within 12-24 inches from the air gap. An air gap is a non-pressurized device, and therefore very little pressure is exerted on the pipes.

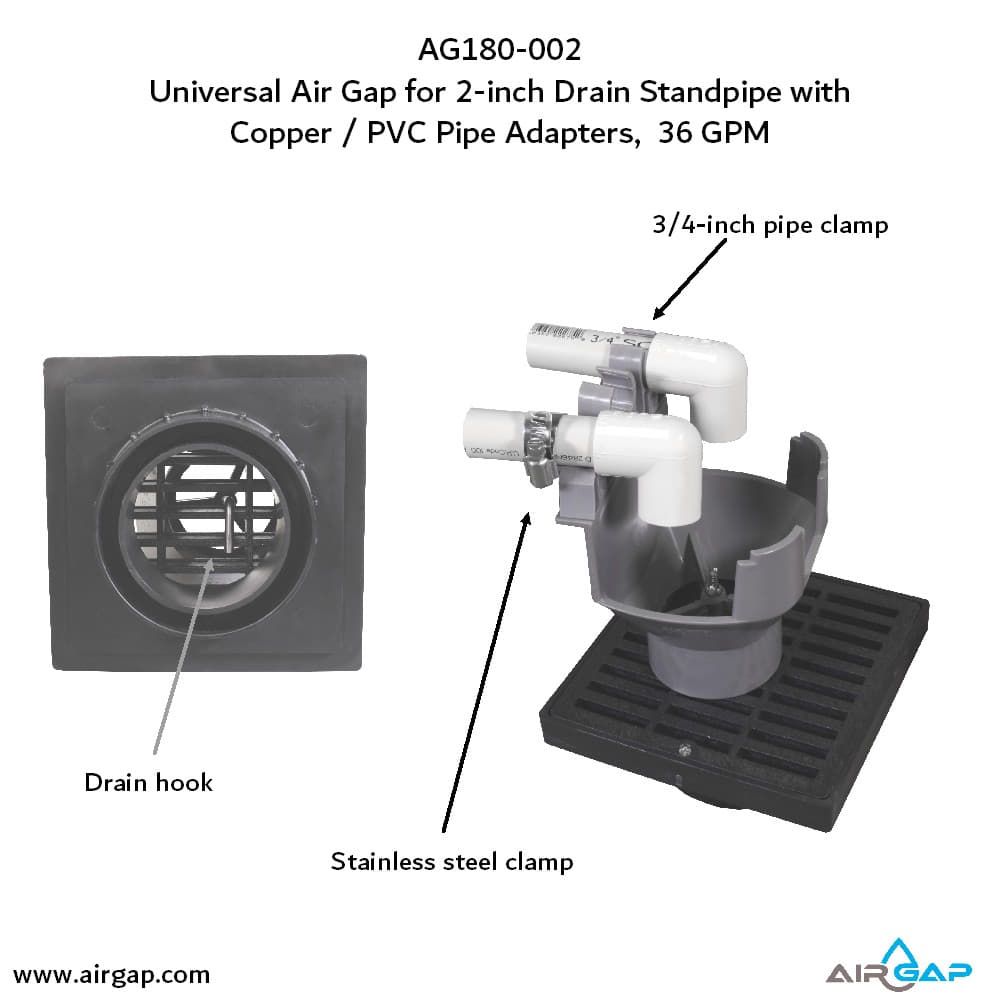

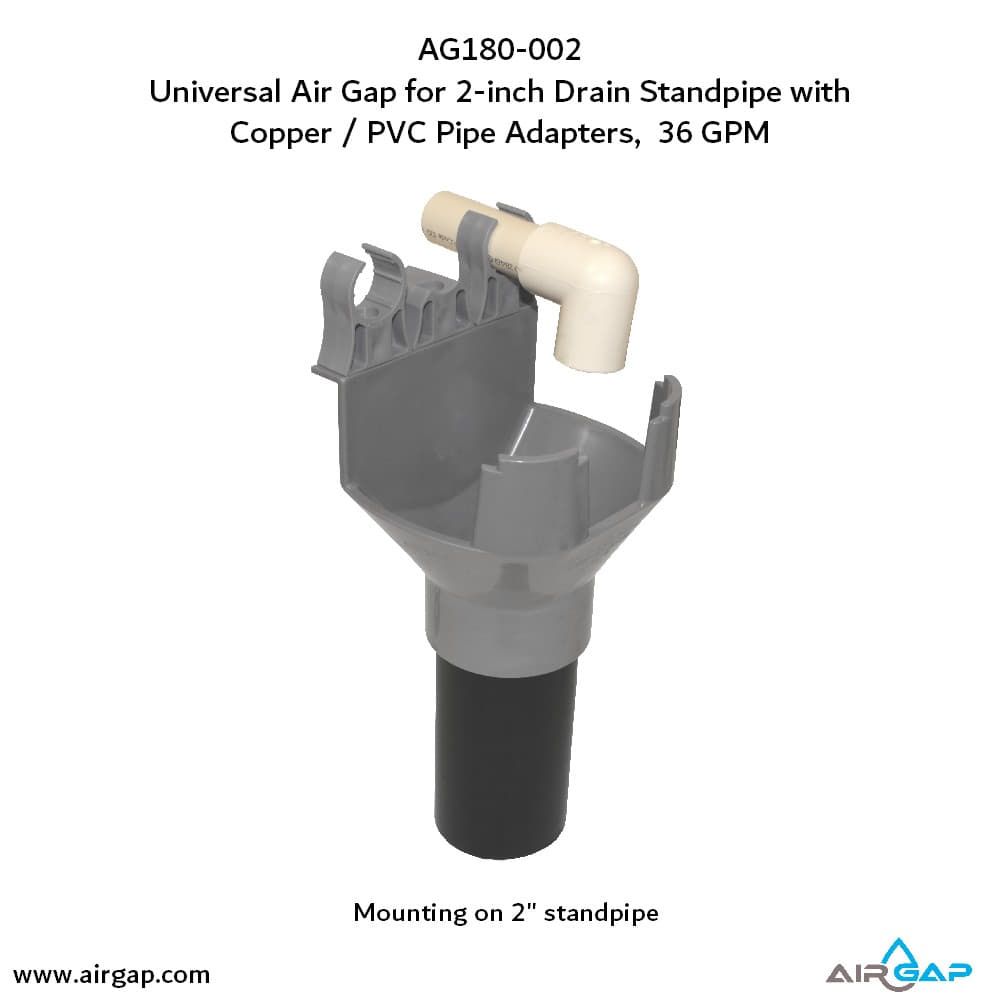

- Standpipe/Drain Connection: The AG180-002 installs directly onto a 2-inch standpipe or connects securely to a floor drain using a stainless hook. This air gap can be used with plastic or metal standpipes. If needed, it can be glued in place to a plastic standpipe using regular PVC adhesive. The air gap is designed to drain up to 36 gallons per minute safely. The optimum recommended flow rate is 18 gallons per minute.
- Splash Protection: The AG180-002 uses a funnel design to assure a splash-free operation. During water softener operation, an initial discharge surge can create splashing. Funnel design and side splash guards eliminate the possibility of water splashing outside of the air gap. Make sure that P-trap is located minimum 12-inches from the top of the standpipe. This is needed to avoid water splashback from the P-trap and to create static water pressure for continuous water drainage.
- Drainage Control: When water exits the air gap, depending on the drainpipe design, it may flow directly into a P-trap. In some cases, this can create splashing noise that may be objectionable. To avoid excessive noise, it is recommended to use 22 degrees elbow inline with standpipe to avoid direct drainage into P-trap, but instead, let water flow on the side of the standpipe. The pipe elbow should be located at least 12 inches from the air gap to eliminate splash back.

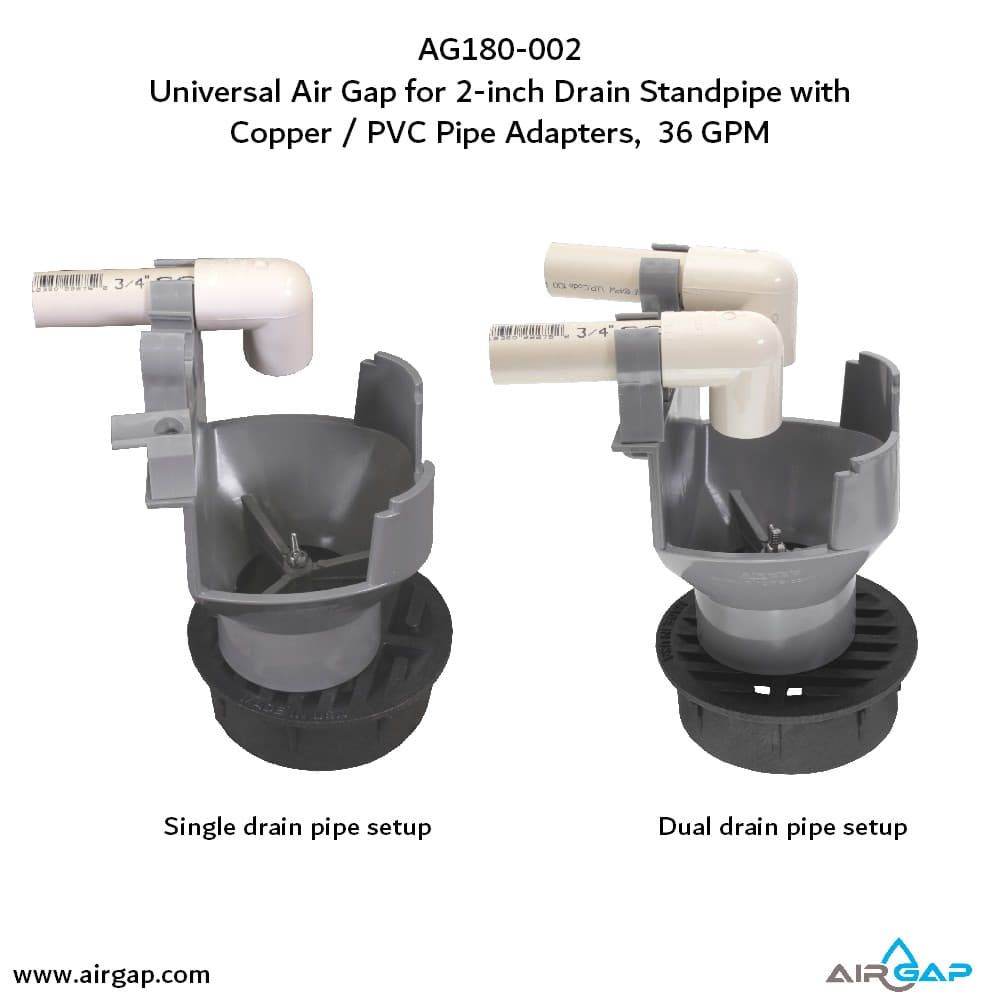

- Universal Air Gap: The AG180-002 is a universal air gap that can accommodate flow rates below 36 GPM. The AG18-002 tested for strength and to make sure that every joint and connection will withstand at least 40lb of force and not break. The AG180-002 can accommodate up to 5 different discharge pipes and can handle the simultaneous flow from a water softener, RO filter, condensate, and iron filter. All discharge pipes should be pointed to the center of the air gap to provide the best drainage.
