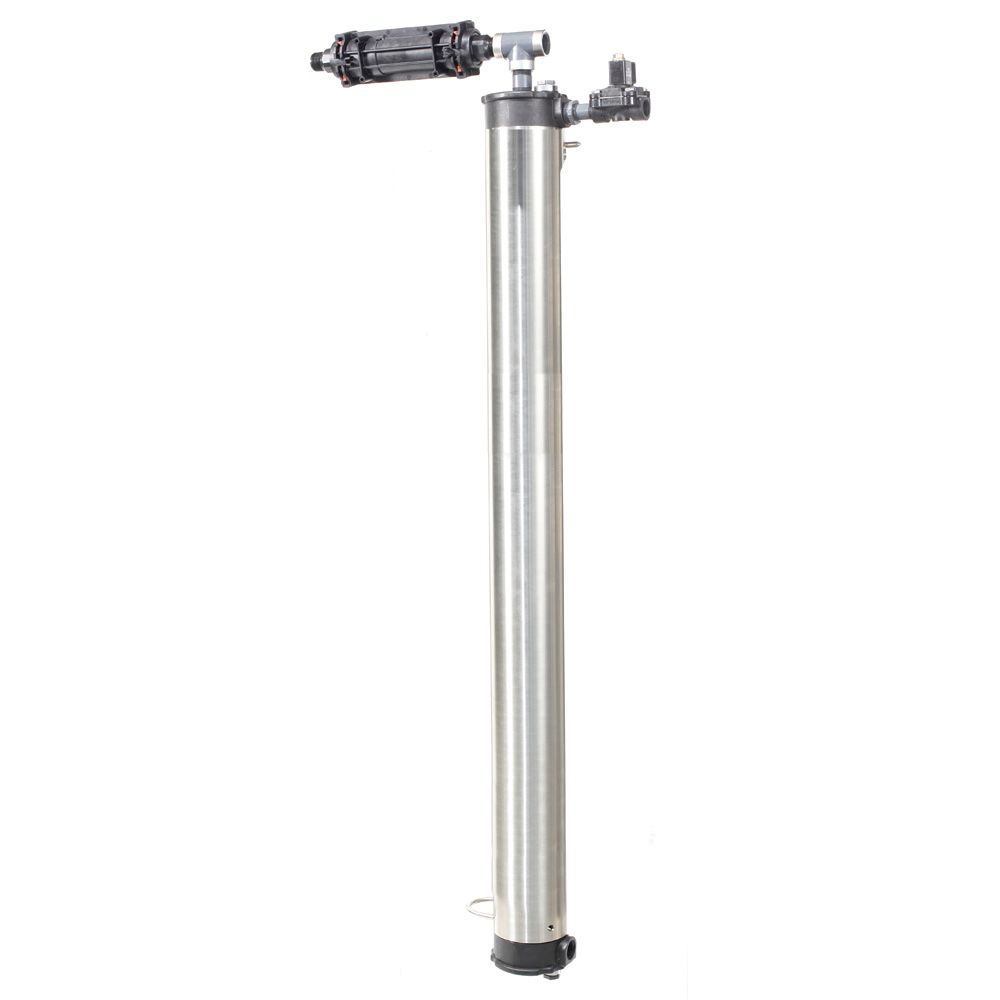

FreshPoint 61788-02 U440 Ultrafiltration System
Part Number: 61788-02
Alt. Part Number: 160375
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
We recommend installing a whole house sediment prefilter before the FreshPoint System, like a Rusco filter or a 5 micron 20" BB pleated or graded density filter, in order to eliminate larger sediment before the water reaches the Ultrafiltration membrane.
Features:
- Removes turbidity, cysts, and other particles down to 0.025 micron in size
- Multi-bore membrane structure combines seven single capillaries into one resistant structure to maximize membrane integrity virtually eliminating the potential for fiber breakage
- Requires only normal line pressure to operate
- Protects during power outages or intermittent power
- Retains natural mineral content of the water
- High surface area and tolerance to plugging
- Low pressure drop / High flow rates
Product Details | |
---|---|
Accuracy | 1-50 gpm +/-5% |
Active Area | 51 sq. ft. |
Features | Without Meter |
Filter Application | Cyst Reduction Sediment/Dirt/Rust |
Housing Material | Stainless Steel |
Inlet Connection | 3/4" MPT |
Max Flow Rate | Muni Water: 1.2 GPM Well Water: 3 GPM |
Max Pressure (Psi) | 120 |
Membrane Type | Polyethersulfone, modified (PESM) |
Micron Rating (Absolute) | 0.065 µm |
Micron Rating (Nominal) | 0.025 µm |
Outlet Connection | 3/4" MPT |
Size | 3/4" |
Volume | 1-9999 Gallons |
Connection Type | Male (MPT) |
Product Weight & Dimensions | |
Product Weight (lbs) | 44 |
