Fluid-o-Tech

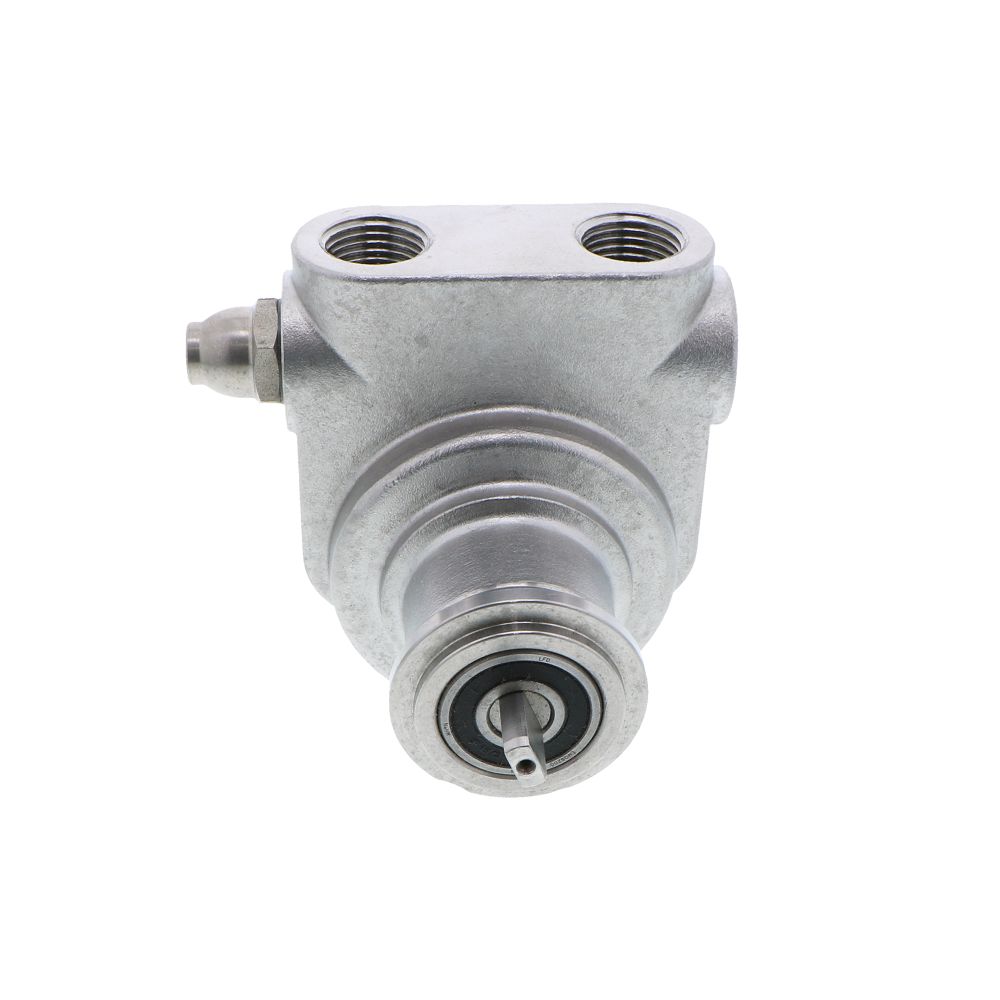

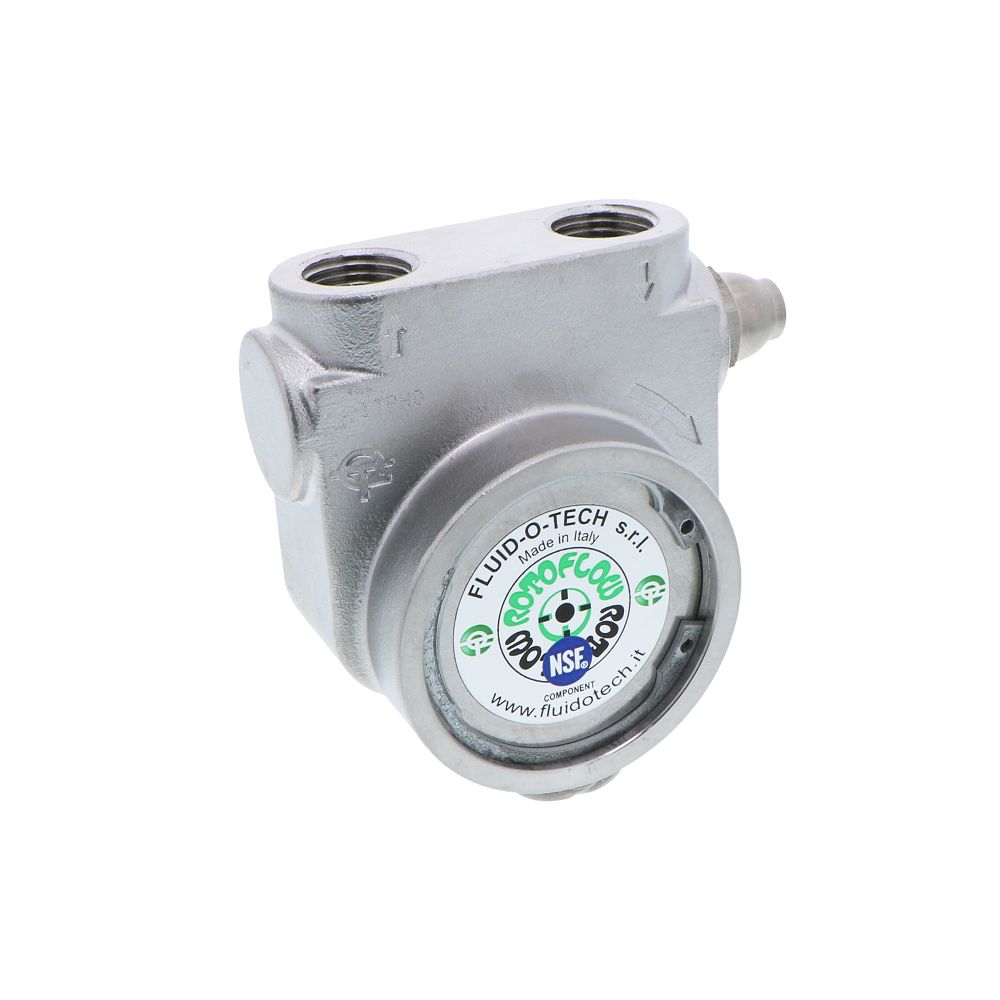

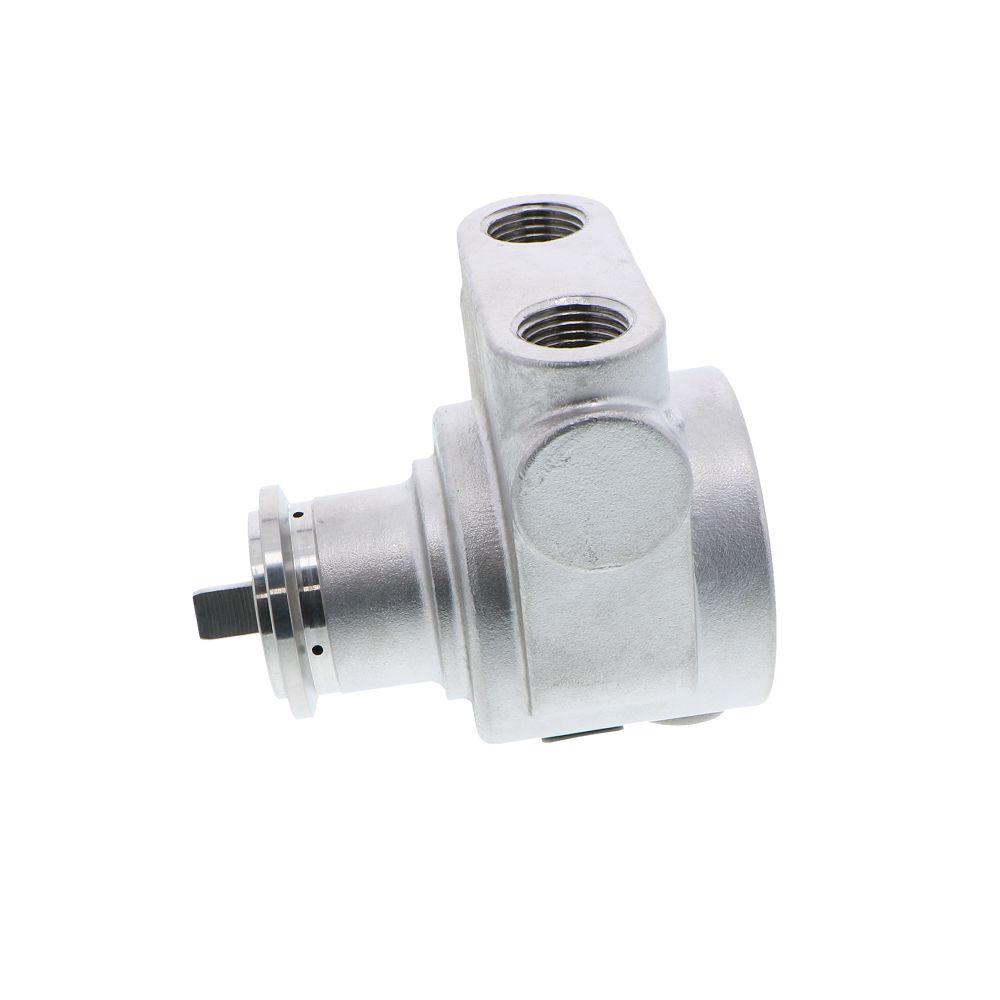

Fluid-o-Tech Stainless Steel Rotary Vane Pump 190 GPH

Part Number: 200782

In Stock

out of stock

In Stock

$249.94

Fluid-o-Tech 200782 is a high volume rotary vane pump. The 200782 has an NSF approved Buna-N seal, and a flow rate of 190 gallons per hour. The pump housing is constructed out of stainless steel, and comes with a three bolt flange mount and a pressure bypass.

Specifications:
  • Flow rate: 190 gallons per hour
  • Material: Stainless Steel
  • 1/2" NPT ports
  • NSF approved Buna-N seal
  • Three bolt flange mount
  • Max Static Pressure: 290 psi
  • Max Operating Temperature: 158°F
Applications:
  • Beverage Vending Machines
  • Booster Systems
  • Cooling Systems
  • Espresso Coffee Machines
  • Post Mix Drink Dispensers
  • Water Dispensers
  • Water Treatment


Weight & Dimensions

Weight (lbs)

4.5

Details

Max Pressure (Psi)

290

Body Material

Stainless Steel

Flow Rate

190 GPH

Mounting Options

Clamp On

Size

1/2"

Nominal Speed - Rpm

1725

Inlet/Outlet Connection

1/2" MPT


Fluid-o-Tech




Fluid-o-Tech 200782 is a high volume rotary vane pump. The 200782 has an NSF approved Buna-N seal, and a flow rate of 190 gallons per hour. The pump housing is constructed out of stainless steel, and comes with a three bolt flange mount and a pressure bypass.

Specifications:
  • Flow rate: 190 gallons per hour
  • Material: Stainless Steel
  • 1/2" NPT ports
  • NSF approved Buna-N seal
  • Three bolt flange mount
  • Max Static Pressure: 290 psi
  • Max Operating Temperature: 158°F
Applications:
  • Beverage Vending Machines
  • Booster Systems
  • Cooling Systems
  • Espresso Coffee Machines
  • Post Mix Drink Dispensers
  • Water Dispensers
  • Water Treatment

Weight & Dimensions

Weight (lbs)

4.5

Details

Max Pressure (Psi)

290

Body Material

Stainless Steel

Flow Rate

190 GPH

Mounting Options

Clamp On

Size

1/2"

Nominal Speed - Rpm

1725

Inlet/Outlet Connection

1/2" MPT
