Fluid-o-Tech

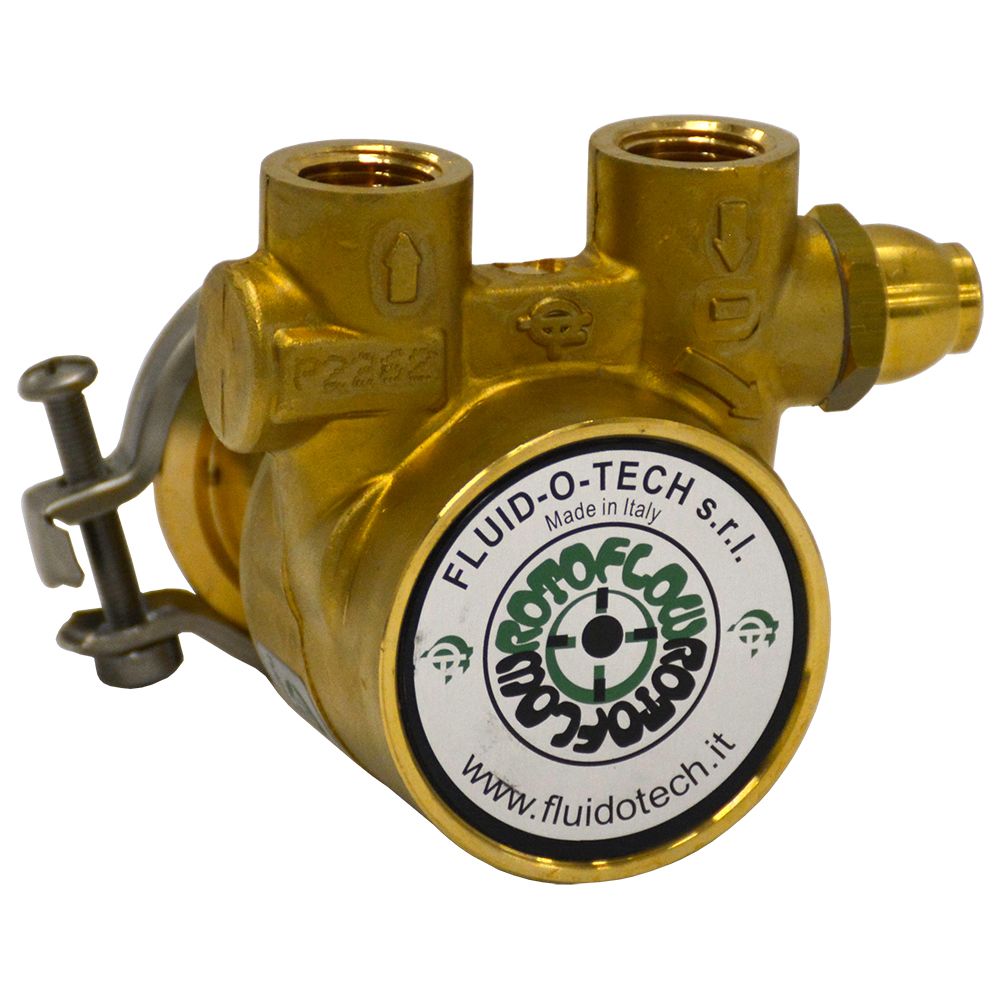

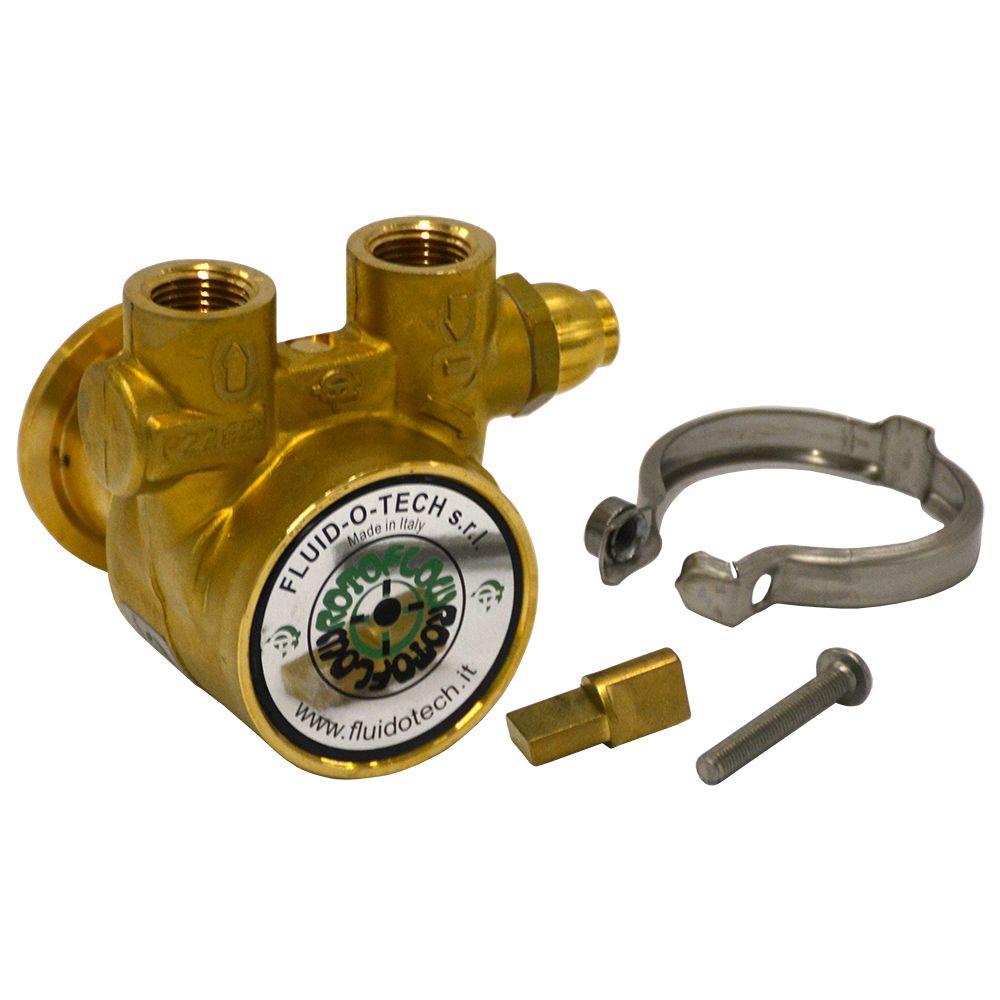

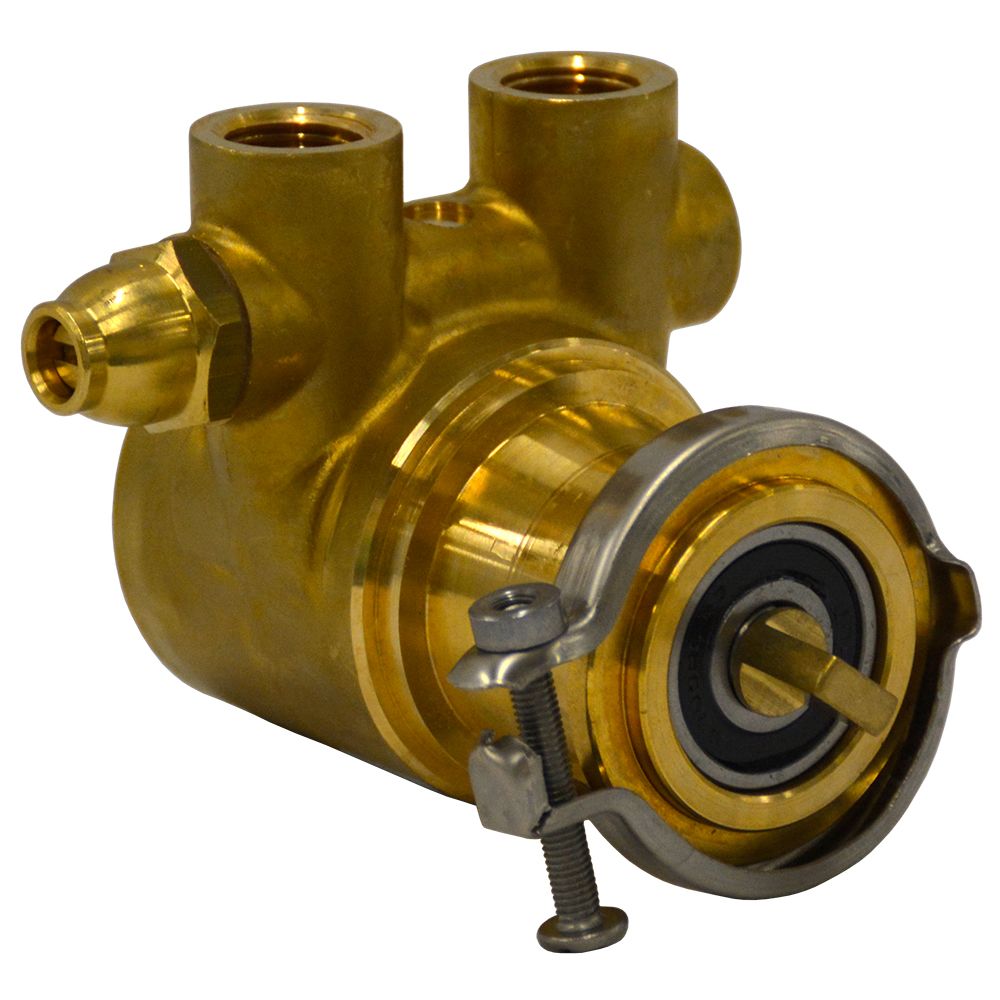

Fluid-o-Tech Lead Free Brass Rotary Vane Pump with Brass Key 105 gph 3/8" NPT

Part Number: PB0301ANCFN590000

In Stock

out of stock

In Stock

$66.99

Fluid-o-Tech Lead-Free Rotary Vane Pump is made of brass and a stainless steel AISI 303 rotor, while the pumping section and the vanes are constructed of carbon graphite. The inlet and outlet ports are 3/8” NPT threaded. The Fluid-o-Tech pumps are designed to be directly connected to the motor with a stainless steel clamp. For different assembly options please check our technical info “optional mountings” page.

Specifications:
  • Flow rate: 105 gallons per hour
  • Material: lead-free brass housing, graphite chamber
  • 3/8" NPT ports
  • NSF approved Buna-N seal
  • Band clamp mount
  • Max Static Pressure: 290 psi
  • Max Operating Temperature: 158°F
Applications:
  • Beverage Vending Machines
  • Booster Systems
  • Cooling Systems
  • Espresso Coffee Machines
  • Post Mix Drink Dispensers
  • Water Dispensers
  • Water Treatment

NOTE: Compatible with the Procon 112A100F11BA250



Weight & Dimensions

Weight (lbs)

4.5

Details

Body Material

Brass

Elastomer Type

Buna-N

Inlet/Outlet Connection

3/8" FPT

Max Outlet Pressure

230 PSI

Mounting Options

Clamp On

Nominal Speed - Rpm

1450

Power

1 hp, 2 hp

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

Yes

Size

3/8"

Connection Type

Female (FPT)

Flow Rate

105 GPH

Type

Rotary Vane Pumps

Warranty & Certifications

Certifications

NSF 169; WRAS


Fluid-o-Tech




Fluid-o-Tech Lead-Free Rotary Vane Pump is made of brass and a stainless steel AISI 303 rotor, while the pumping section and the vanes are constructed of carbon graphite. The inlet and outlet ports are 3/8” NPT threaded. The Fluid-o-Tech pumps are designed to be directly connected to the motor with a stainless steel clamp. For different assembly options please check our technical info “optional mountings” page.

Specifications:
  • Flow rate: 105 gallons per hour
  • Material: lead-free brass housing, graphite chamber
  • 3/8" NPT ports
  • NSF approved Buna-N seal
  • Band clamp mount
  • Max Static Pressure: 290 psi
  • Max Operating Temperature: 158°F
Applications:
  • Beverage Vending Machines
  • Booster Systems
  • Cooling Systems
  • Espresso Coffee Machines
  • Post Mix Drink Dispensers
  • Water Dispensers
  • Water Treatment

NOTE: Compatible with the Procon 112A100F11BA250


Weight & Dimensions

Weight (lbs)

4.5

Details

Body Material

Brass

Elastomer Type

Buna-N

Inlet/Outlet Connection

3/8" FPT

Max Outlet Pressure

230 PSI

Mounting Options

Clamp On

Nominal Speed - Rpm

1450

Power

1 hp, 2 hp

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

Yes

Size

3/8"

Connection Type

Female (FPT)

Flow Rate

105 GPH

Type

Rotary Vane Pumps

Warranty & Certifications

Certifications

NSF 169; WRAS
