Home / Pumps & Motors / Rotary Vane Pumps & Motors / Fluid-o-Tech Lead-Free Brass Rotary Vane Pump 75 GPH - 3/8" NPT
Fluid-o-Tech

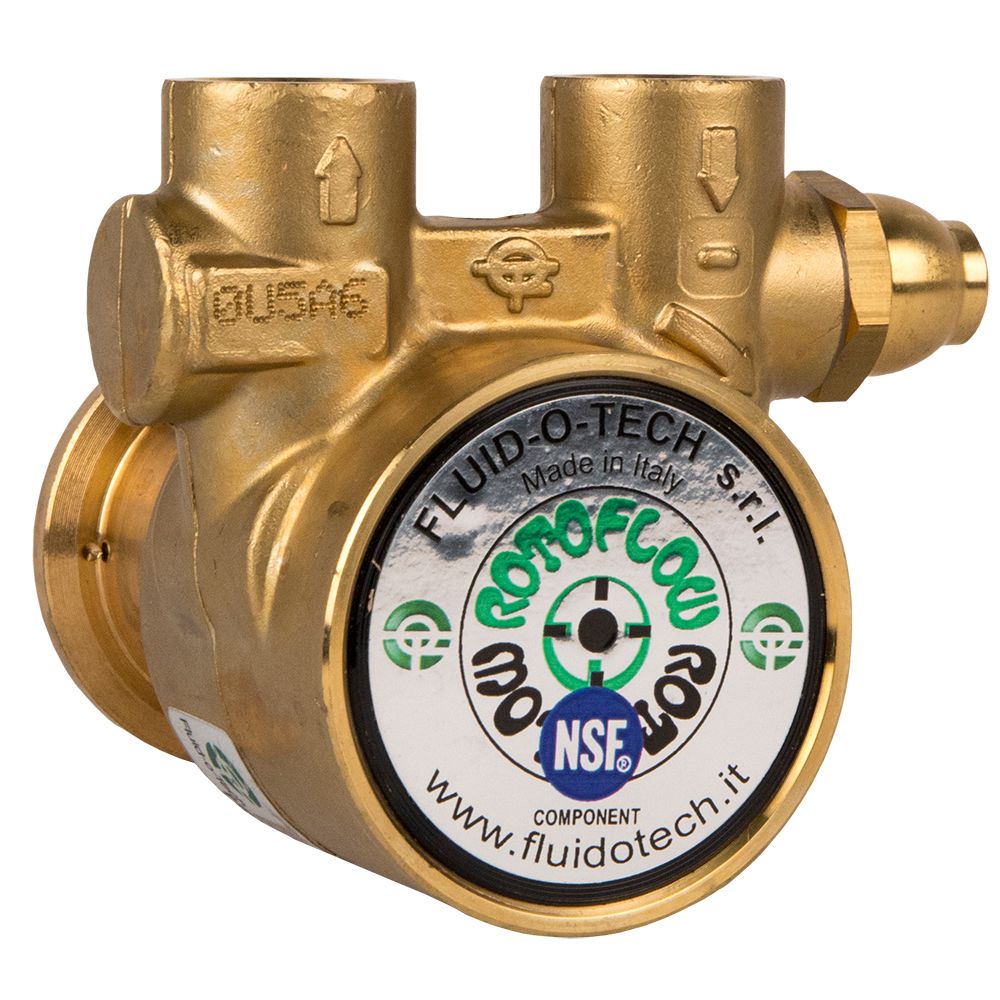

Fluid-o-Tech Lead-Free Brass Rotary Vane Pump 75 GPH - 3/8" NPT

Part Number: DV-201-225
Alt. Part Number: PB201, PB0201ANCNN0000
Product image 1
Your price:
Fluid-o-Tech PB201 is a 75 gallon per hour rotary vane pump. The PB201 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of Stainless Steel, and comes with a band clamp mount and a pressure bypass.

Specifications:
  • Flow rate: 75 gallons per hour
  • Material: Lead-free brass housing & graphite chamber
  • 3/8" NPT ports
  • Clamp Mount: 4.2 lbs. (1.9kg)
  • Max Static Pressure: 290 PSI
  • Max Operating Temperature: 158°F
  • Max Speed: 1450 RPM
  • High Volume Rotary Vane Pump
Applications:
  • Post-mix drink dispensers
  • Cooling & booster systems
  • Fuel injection systems
  • Reverse osmosis systems
  • Ultra-filtration systems
  • Water dispensing systems
