Fluid-o-Tech

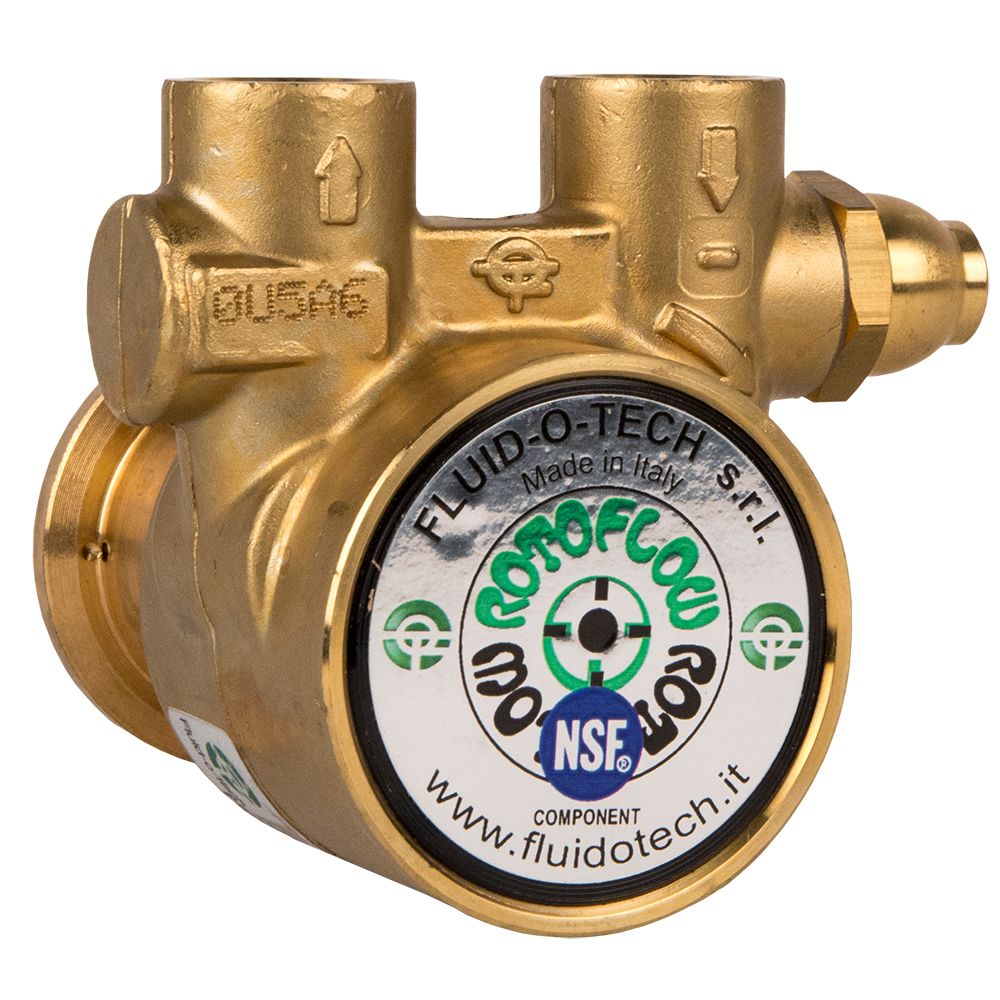

Fluid-o-Tech Lead-Free Brass Rotary Vane Pump 190 GPH - 1/2" NPT

Part Number: DV-601-225

Alt. Part Number: PB601, PB601ANDNN4700 QPC

In Stock

out of stock

In Stock

$121.99

Fluid-o-Tech PB601 is a 190 gallon per hour rotary vane pump. The PB601 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of Stainless Steel, and comes with a band clamp mount and a pressure bypass.

Specifications:
  • Flow rate: 140 gallons per hour
  • Material: Lead-free brass housing & graphite chamber
  • 1/2" NPT ports
  • Clamp Mount: 4.2 lbs. (1.9kg)
  • Max Static Pressure: 290 PSI
  • Max Operating Temperature: 158°F
  • Max Speed: 1450 RPM
  • High Volume Rotary Vane Pump
Applications:
  • Post-mix drink dispensers
  • Cooling & booster systems
  • Fuel injection systems
  • Reverse osmosis systems
  • Ultra-filtration systems
  • Water dispensing systems




Weight & Dimensions

Height (inches)

4.75

Length (inches)

4.25

Weight (lbs)

4.15625

Width (inches)

4.75

Details

Body Material

Brass

Elastomer Type

Buna-N

Flow Rate

190 GPH

Inlet/Outlet Connection

1/2" MPT

Max Outlet Pressure

230 PSI

Mounting Options

Clamp On

Nominal Speed - Rpm

1450

Power

1 hp, 2 hp

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

Yes

Size

1/2"

Warranty & Certifications

Certifications

NSF 169; WRAS


Fluid-o-Tech




Fluid-o-Tech PB601 is a 190 gallon per hour rotary vane pump. The PB601 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of Stainless Steel, and comes with a band clamp mount and a pressure bypass.

Specifications:
  • Flow rate: 140 gallons per hour
  • Material: Lead-free brass housing & graphite chamber
  • 1/2" NPT ports
  • Clamp Mount: 4.2 lbs. (1.9kg)
  • Max Static Pressure: 290 PSI
  • Max Operating Temperature: 158°F
  • Max Speed: 1450 RPM
  • High Volume Rotary Vane Pump
Applications:
  • Post-mix drink dispensers
  • Cooling & booster systems
  • Fuel injection systems
  • Reverse osmosis systems
  • Ultra-filtration systems
  • Water dispensing systems



Weight & Dimensions

Height (inches)

4.75

Length (inches)

4.25

Weight (lbs)

4.15625

Width (inches)

4.75

Details

Body Material

Brass

Elastomer Type

Buna-N

Flow Rate

190 GPH

Inlet/Outlet Connection

1/2" MPT

Max Outlet Pressure

230 PSI

Mounting Options

Clamp On

Nominal Speed - Rpm

1450

Power

1 hp, 2 hp

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

Yes

Size

1/2"

Warranty & Certifications

Certifications

NSF 169; WRAS
