Clack Corporation

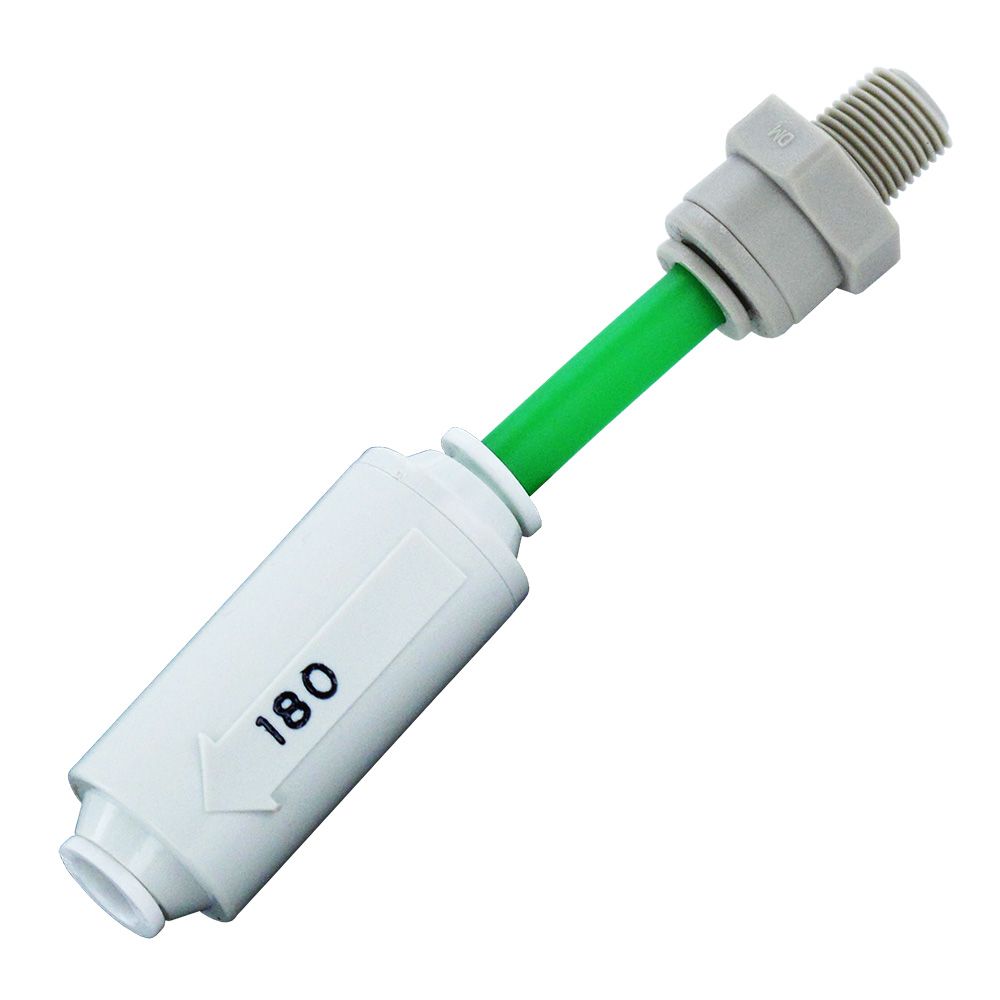

Flow Restrictor Microline S2016-4 Compatible (180 ml) for S1224RS

Part Number: S2016-4180

Alt. Part Number: S2016-4

In Stock

out of stock

In Stock

$11.35


The S2016-4 Drain Restrictor is an improved flow control for S1224RS membranes, which are commonly used in Microline CTA-14s and CTA-14D RO Drinking Water Systems. Upgrade your existing Yellow Drain Restrictor to a more water efficient and reliable external flow control that is less prone to breakage and clogging.

Steps for installation:
  1. Remove old Drain Restrictor from manifold drain port and discard.
  2. Apply Teflon tape to new Male Connector fitting provided and hand tighten into the manifold drain port.
  3. Insert 1/4" OD drain tube into the open end of new external flow control.

Compatible with: Microline | S2016-4


Weight & Dimensions

Approx Weight

180 ml

Details

Application

flow restrictor

Inlet Size

1/4" OD tubing




The S2016-4 Drain Restrictor is an improved flow control for S1224RS membranes, which are commonly used in Microline CTA-14s and CTA-14D RO Drinking Water Systems. Upgrade your existing Yellow Drain Restrictor to a more water efficient and reliable external flow control that is less prone to breakage and clogging.

Steps for installation:
  1. Remove old Drain Restrictor from manifold drain port and discard.
  2. Apply Teflon tape to new Male Connector fitting provided and hand tighten into the manifold drain port.
  3. Insert 1/4" OD drain tube into the open end of new external flow control.

Compatible with: Microline | S2016-4

Weight & Dimensions

Approx Weight

180 ml

Details

Application

flow restrictor

Inlet Size

1/4" OD tubing
