Flowmatic

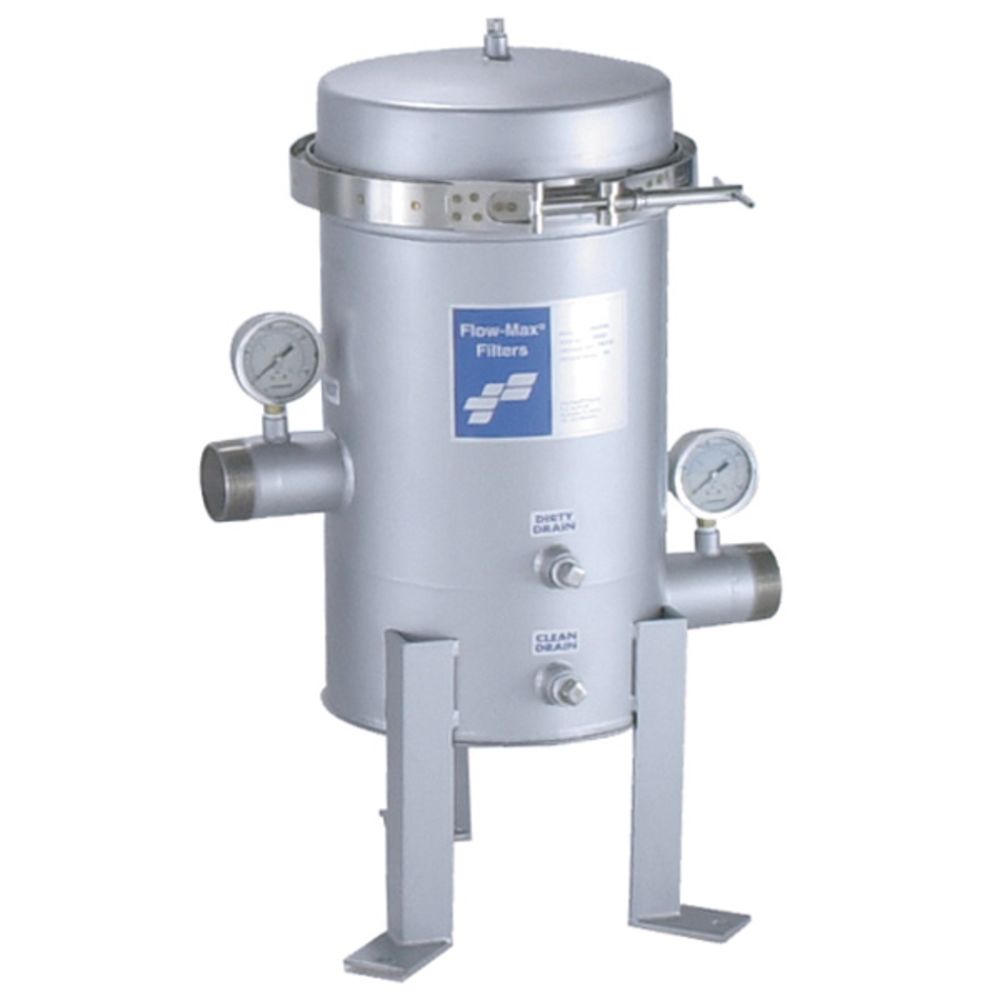

Flow-Max FMJCH40 Stainless Steel Jumbo Filter Housing 50 gpm

Part Number: FMJCH40

In Stock

out of stock

In Stock

$921.04


Flow-Max Stainless Steel Jumbo Filter Housings are built using 316L stainless steel for greater chemical resistance and are rated for pressures up to 150 psi. The housings accept Jumbo or Hurricane cartridges for high flow rates with low pressure drop.

Specifications:
  • Flow-Max Jumbo Replacement Filters
  • Durable heavy duty stainless steel construction
  • 316L stainless steel for greater chemical resistance
  • Protective poly coat finish on over stainless steel
  • Convenient band clamp lid closure is standard  for easy cartridge replacement.
  • Pipe fittings are readily accessible for easy installation.
  • Pressure gauges installed on inlet and outlet
  • Mounting legs standard
  • Max Flow Rate: 50 gpm
  • Inlet/Outlet: 2" MPNT
  • Max Pressure: 150 psi


Weight & Dimensions

Approx Height (Inches)

25.5 Inches

Approx Width (Inches)

17.5 Inches

Details

Cap Material

316 Stainless Steel

Housing Material

316 Stainless Steel

Inlet/Outlet Size

2" FNPT

Max Flow Rate

50 Gallons Per Minute

Max Operating Pressure

150 PSI

Max Operating Temperature

250 Degrees Fahrenheit

O Rings

Buna-N

Type

Commercial


Flow-Max





Flow-Max Stainless Steel Jumbo Filter Housings are built using 316L stainless steel for greater chemical resistance and are rated for pressures up to 150 psi. The housings accept Jumbo or Hurricane cartridges for high flow rates with low pressure drop.

Specifications:
  • Flow-Max Jumbo Replacement Filters
  • Durable heavy duty stainless steel construction
  • 316L stainless steel for greater chemical resistance
  • Protective poly coat finish on over stainless steel
  • Convenient band clamp lid closure is standard  for easy cartridge replacement.
  • Pipe fittings are readily accessible for easy installation.
  • Pressure gauges installed on inlet and outlet
  • Mounting legs standard
  • Max Flow Rate: 50 gpm
  • Inlet/Outlet: 2" MPNT
  • Max Pressure: 150 psi

Weight & Dimensions

Approx Height (Inches)

25.5 Inches

Approx Width (Inches)

17.5 Inches

Details

Cap Material

316 Stainless Steel

Housing Material

316 Stainless Steel

Inlet/Outlet Size

2" FNPT

Max Flow Rate

50 Gallons Per Minute

Max Operating Pressure

150 PSI

Max Operating Temperature

250 Degrees Fahrenheit

O Rings

Buna-N

Type

Commercial
