Flowmatic

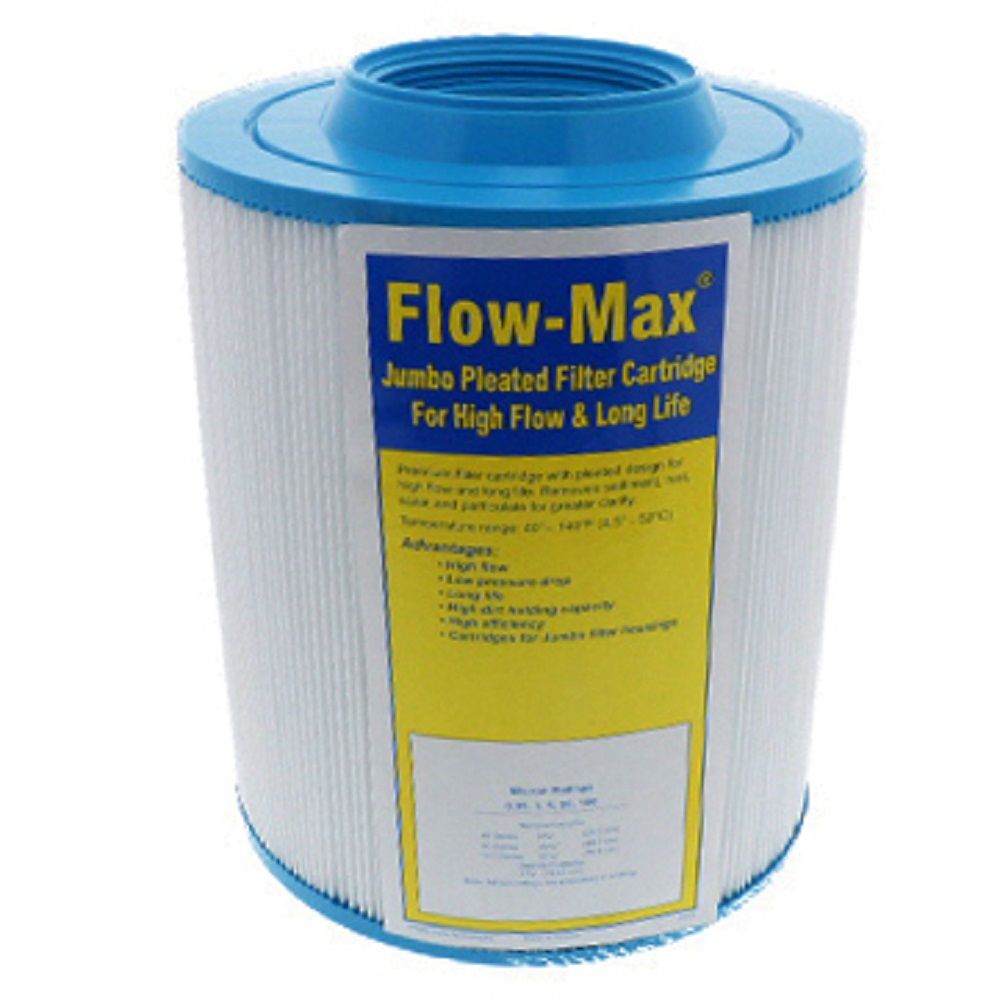

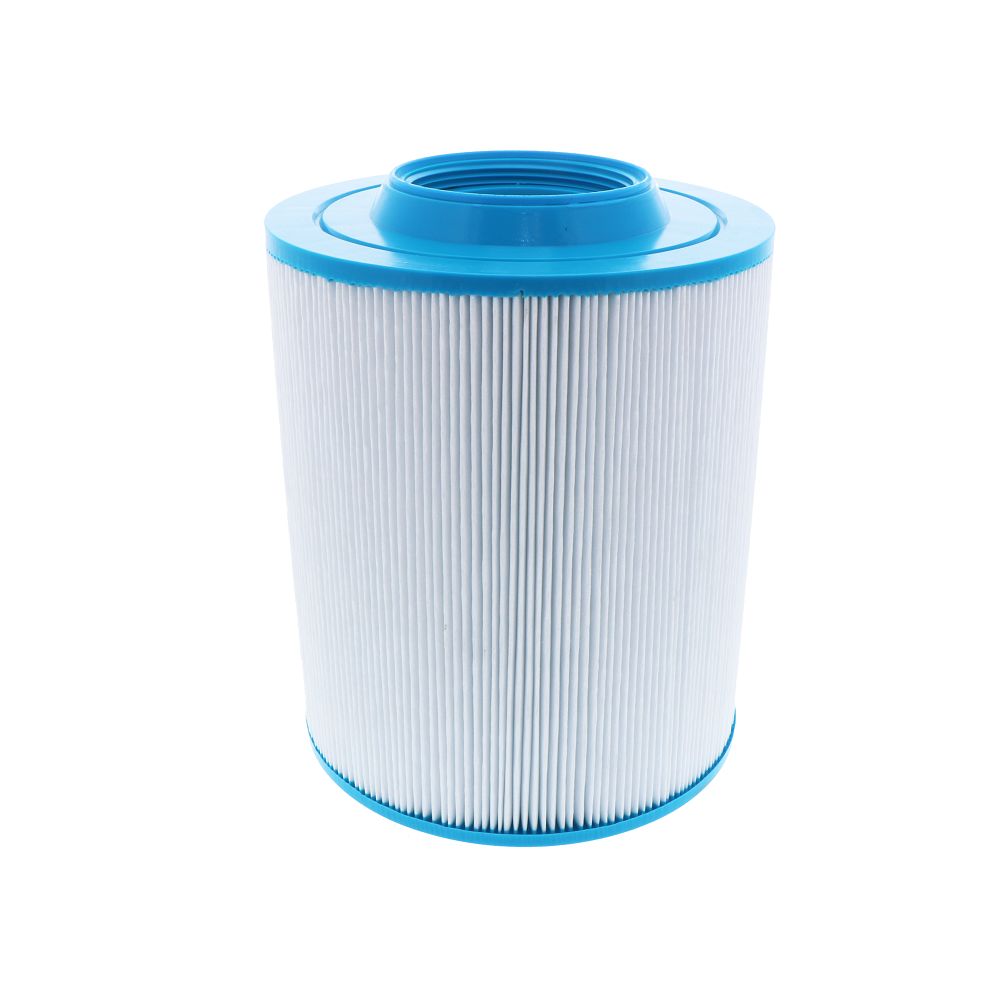

Flow-Max FMHC-40-50 Jumbo Filter Cartridge 50 micron

Part Number: FMHC-40-50

Alt. Part Number: FMHC-40-50EZ

In Stock

out of stock

In Stock

$57.60

The Watts Flow-Max Jumbo FMHC-40-50 Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.

Features:
  • Cleanable (Reusable) Filter
  • Sediment Filtration
  • 50 Micron Nominal
  • Chemically Resistant Pleated Polyester Filtration
  • 100% Cellulose Free
  • Also known as Watts Pure Water PWPL40M50



Compatible with:
WattsPWPL40M50

Weight & Dimensions

Approx Length (Inches)

9-5/8"

Box Dimensions

8.375x8.375x10.5

Height (inches)

8.5

Length (inches)

10

Weight (lbs)

2.05625

Width (inches)

8.38

Details

Capacity

As Needed

Core Material

Polypropylene

Features

Cleanable (Reusable) Filter

Max Flow Rate

50 GPM

Max Temp (°F)

140

Micron Rating (Nominal)

50 µm

Min Temp (°F)

40

Psid@Flow Rate

1.2 psid @ 50 GPM

Recommended Flow Rate

50 GPM

Cap Material

Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

7-3/4"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Flow Rate

50 GPM

Media Type

Polyester

Micron Rating

50 µm

Origin

USA

Product Length

9-5/8"


Flow-Max

Flow-Max




The Watts Flow-Max Jumbo FMHC-40-50 Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.

Features:
  • Cleanable (Reusable) Filter
  • Sediment Filtration
  • 50 Micron Nominal
  • Chemically Resistant Pleated Polyester Filtration
  • 100% Cellulose Free
  • Also known as Watts Pure Water PWPL40M50



Compatible with:
WattsPWPL40M50

Weight & Dimensions

Approx Length (Inches)

9-5/8"

Box Dimensions

8.375x8.375x10.5

Height (inches)

8.5

Length (inches)

10

Weight (lbs)

2.05625

Width (inches)

8.38

Details

Capacity

As Needed

Core Material

Polypropylene

Features

Cleanable (Reusable) Filter

Max Flow Rate

50 GPM

Max Temp (°F)

140

Micron Rating (Nominal)

50 µm

Min Temp (°F)

40

Psid@Flow Rate

1.2 psid @ 50 GPM

Recommended Flow Rate

50 GPM

Cap Material

Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

7-3/4"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Flow Rate

50 GPM

Media Type

Polyester

Micron Rating

50 µm

Origin

USA

Product Length

9-5/8"
