FloLogic Water Leak Detection System 3.5

Part Number: FLS0035-1

Alt. Part Number: C100

In Stock

out of stock

In Stock

$1,895.00

Intended Use:

The FloLogic FLS0035 Water Leak Detection System 3.5 is known as the circuit breaker for every plumbing system. This revolutionary technology is designed to protect the plumbing in your home or business by detecting irregular water flow before major damage occurs. 1 in 8 homes will suffer major water damage this year because of a plumbing leaks or pipe failure. The EPA reports that the average home looses almost 11,000 gallons of their total domestic water per year due to undetected leaks. The FLS0035 FloLogic System 3.5 not only will alert you that their is a leak, but also provide a safeguard by shutting off the water in an emergency.


The FloLogic FLS0035 will detect and stop leaks resulting from:
  • Frozen Pipes
  • Malfunctioning appliances
  • Running exterior hose bibs
  • Any Accidental water waste
  • Pinhole leaks in copper pipes
  • Irrigation line or valve failures
  • Radiant heating distribution lines
  • Ruptured supply lines and fittings
  • Leaking boilers and water heaters
  • Stuck flappers and toilet fill valves

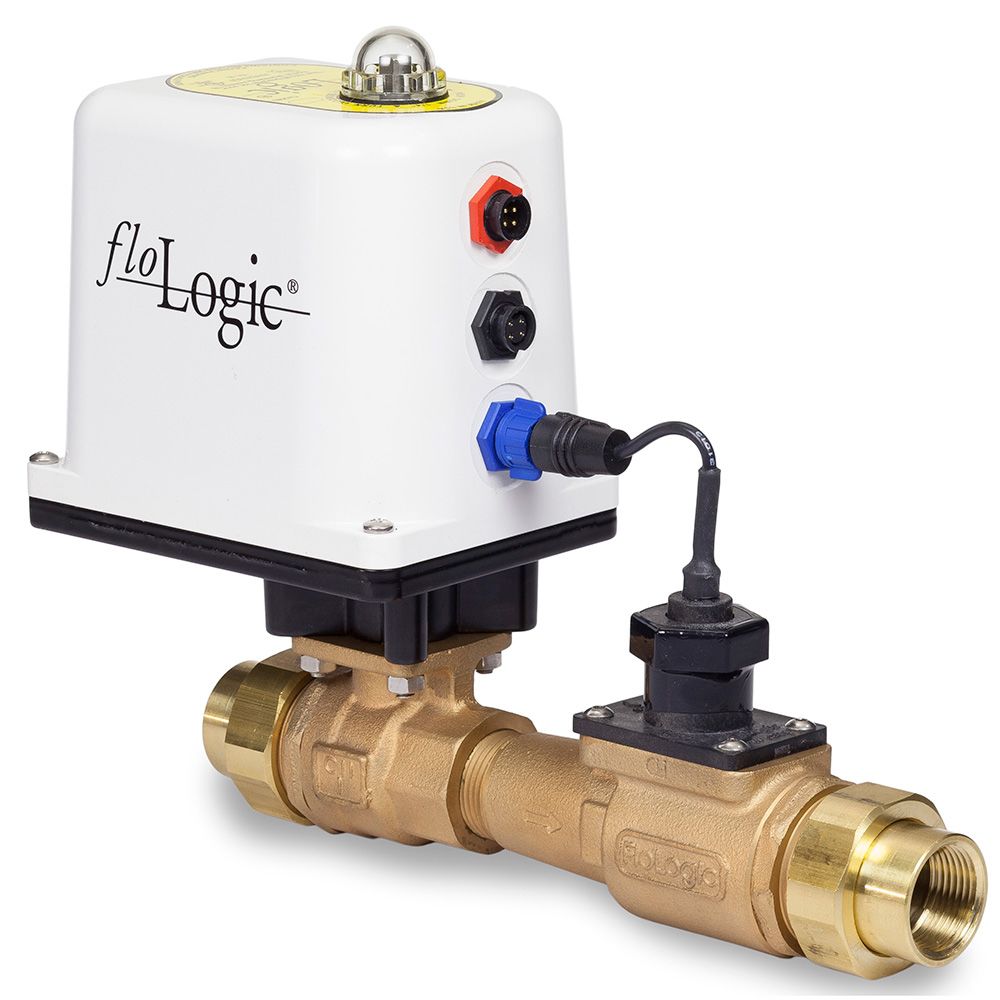

Flexible The FloLogic System features a low-flow water sensor with an updated interface to monitor water use and control the ball valve. The FLS0035 is IP68 certified and can be used in indoor or outdoor settings. This leak detector can be connected to any security or automation system to alert you immediately when a leak is detected.

Reliable The FloLogic System monitors all water entering the property all day every day. A stand-by battery is included if the power goes out. Whenever the FLS0035 switch between Home Mode and Away Mode the system tests itself to make sure it will run properly in an emergency. This is a patented feature only available on the FloLogic System.

Customizable The FloLogic System can be set to Home or Away. The Home mode is pre-programmed to allow 30 minutes of uninterrupted flow and the Away mode is set to only allow 30 seconds of water flow before the system will alert you that there is a leak.

Personalized Settings. The FloLogic System is shown in the "Ask This Old House" Season 9 Episode 24. The system is features at the 10:14 mark in the video below.

Made in the USA. The FloLogic System 3.5 features flow-based water leak detection technology to protect your home from catastrophic water damage. Award Winning. Popular Science honored FloLogic with the "Best of What's New" award placing them in the top 100 best achievements in science and technology.

Specifications:

  • Full-port stainless steel ball
  • Rechargeable Battery
  • Working Pressure: 100 PSI
  • System Battery: 7 days
  • Max Working Pressure: 150 PSI
  • Air Temperature: 35° - 120° F
  • Lead Free: Cast bronze construction
  • Water Temperature: 35° - 140° F
  • Certifications: UL, cUL, UPC, cUPC - NSF 61-8
  • Minimal Detection: 1/2 oz per minute
  • Pressure Drop <3 @30 PSI & under 5 PSI @ 50 PGM
  • Connections: 1" FPT on both ends of the Assembly
  • Valve Assembly Dimensions: 9-1/2" L x 4-3/4" D x 9-1/2" H
  • WaterProof Valve Assembly (IP68) For Indoor & Outdoor Use


Weight & Dimensions

Approx Height (Inches)

9-1/2"

Approx Length (Inches)

9-1/2"

Approx Width (Inches)

4-3/4" (Depth)

Details

Measurement Range

1/2 oz. Minimum

Control Panel

Backlit Display; Soft-Touch Keypad

Ambient Temperature Range

35° - 120° F

Inlet/Outlet Size

1" FPT

Liquid Temperature

35° - 140° F

Max Operating Pressure

150 PSI

Operating Pressure Range

100 PSI

Power

AC + Battery

Port Size

1" FNPT

Warranty & Certifications

Certifications

UL; cUL; UPC; cUPC; NSF 61-8

Warranty

5 years on valve flow path, 3 year on electronic components
