floLogic

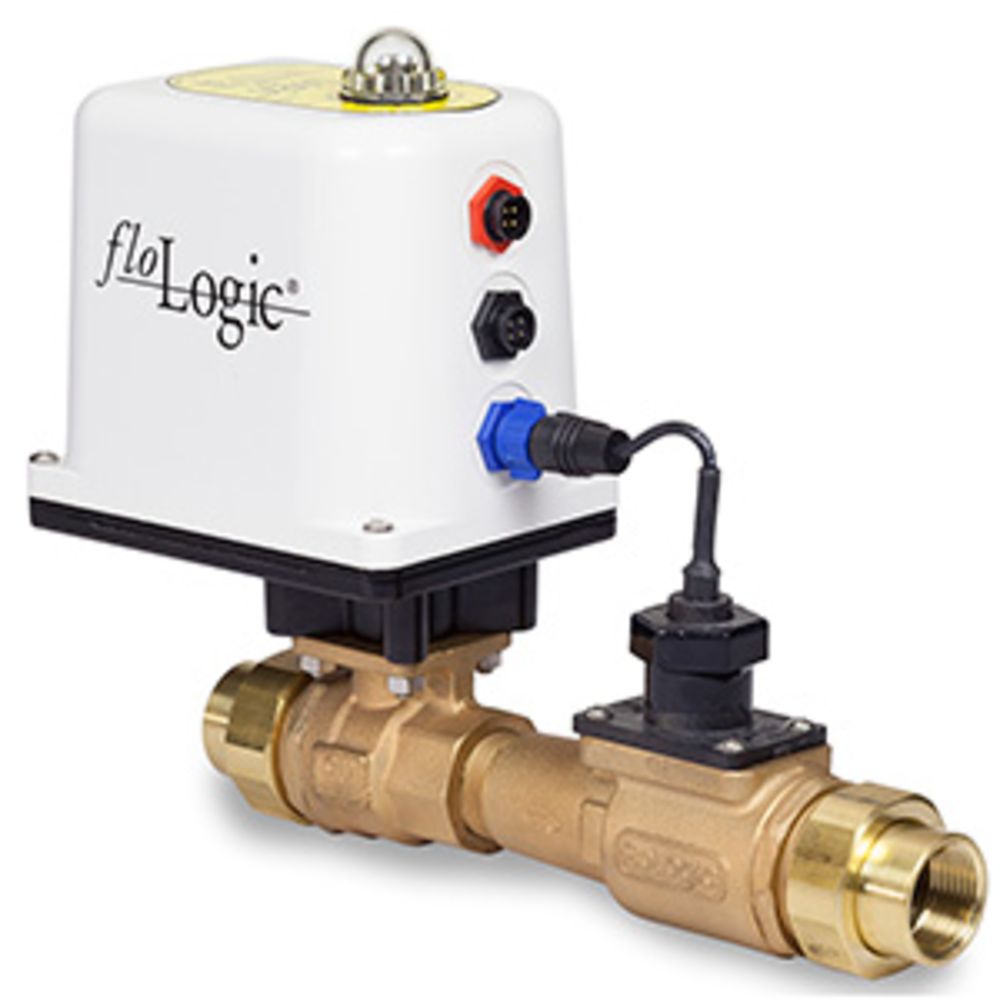

FloLogic System 3.5 Replacement Actuator & Valve Assembly

Part Number: ACTASSY0035

In Stock

out of stock

In Stock

$540.00

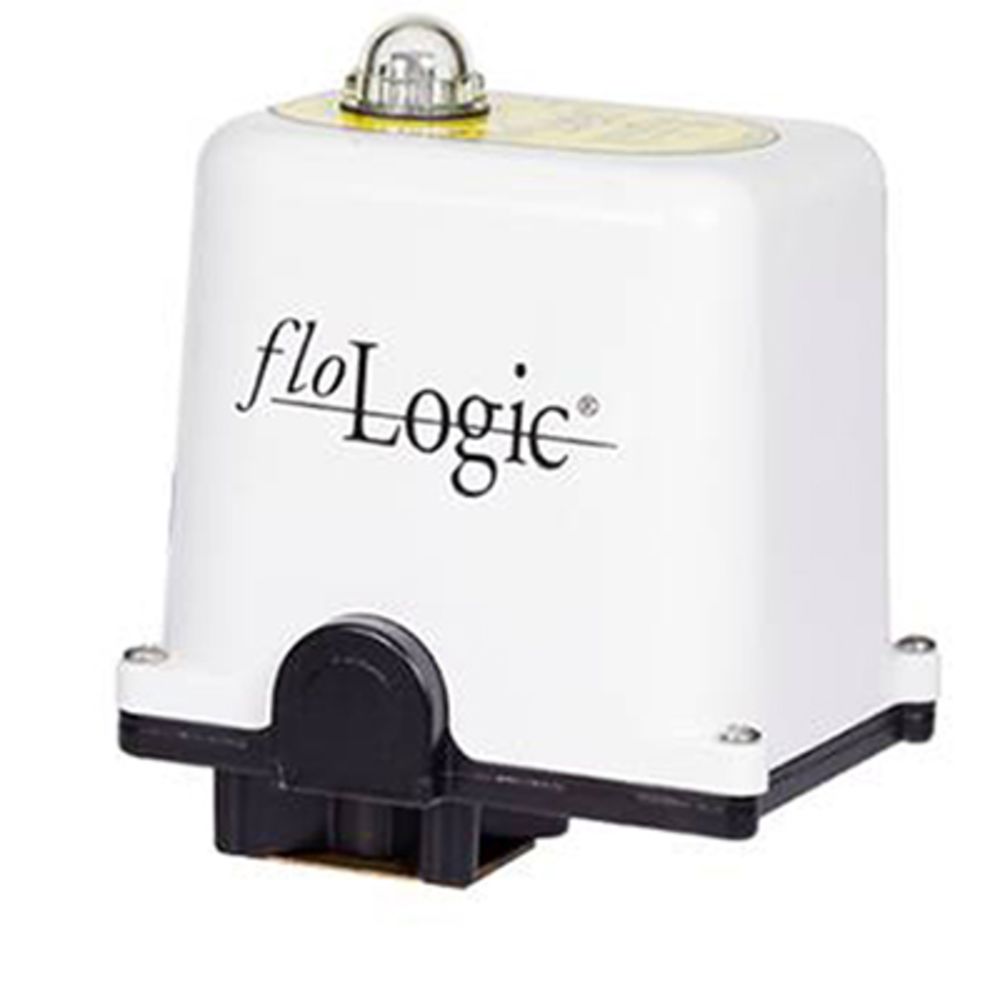

The FloLogic Replacement Actuator with Valve Assembly for System 3.5 features revolutionary technology designed to protect the plumbing in your home or business by detecting irregular water flow before major damage occurs. The ACTASSY0035 actuator includes the VPCB3002 circuit board and the ACT3002 valve assembly. The actuator cover protects the unit from harmful environments both indoor and out. The valve assembly is included making installation quick and easy.

The FloLogic Actuator will detect and stop leaks resulting from:
  • Frozen pipes
  • Malfunctioning appliances
  • Running exterior hose bibs
  • Any accidental water waste
  • Pinhole leaks in copper pipes
  • Irrigation line or valve failures
  • Radiant heating distribution lines
  • Ruptured supply lines and fittings
  • Leaking boilers and water heaters
  • Stuck flappers and toilet fill valves
 Specifications :
  • Working Pressure: 100 PSI
  • Air Temperature: 35° - 120° F
  • Max Working Pressure: 150 PSI
  • Water Temperature: 35° - 140° F
  • Certifications: UL, cUL, UPC, cUPC -NSF 61-8
  • Minimal Detection: 1/2 oz per minute
  • Pressure Drop <3 @30 PSI & under 5 PSI @ 50 PG
  • Connections: 1" FPT on both ends of the Assembly
  • Valve Assembly Dimensions: 9-1/2" L x 4-3/4" D x 9-1/2" H
  • WaterProof Valve Assembly (IP68) for Indoor & Outdoor Use
Note: The FloLogic ACTASSY0035 Replacement Actuator comes with a replacement valve, but does not include the flow sensor.


Weight & Dimensions

Approx Height (Inches)

9-1/2"

Approx Length (Inches)

4-3/4"

Approx Width (Inches)

9-1/2"

Details

Measurement Range

1/2 oz. Minimum

Ambient Temperature Range

35° - 120° F

Inlet/Outlet Size

1" FPT

Liquid Temperature

35° - 140° F

Max Operating Pressure

150 PSI

Operating Pressure Range

100 PSI

Power

AC + Battery

Warranty & Certifications

Certifications

UL; cUL; UPC; cUPC; NSF 61-8

Warranty

Five-year warranty on primary valve and one-year warranty on electronics


FloLogic

FloLogic

FloLogic




The FloLogic Replacement Actuator with Valve Assembly for System 3.5 features revolutionary technology designed to protect the plumbing in your home or business by detecting irregular water flow before major damage occurs. The ACTASSY0035 actuator includes the VPCB3002 circuit board and the ACT3002 valve assembly. The actuator cover protects the unit from harmful environments both indoor and out. The valve assembly is included making installation quick and easy.

The FloLogic Actuator will detect and stop leaks resulting from:
  • Frozen pipes
  • Malfunctioning appliances
  • Running exterior hose bibs
  • Any accidental water waste
  • Pinhole leaks in copper pipes
  • Irrigation line or valve failures
  • Radiant heating distribution lines
  • Ruptured supply lines and fittings
  • Leaking boilers and water heaters
  • Stuck flappers and toilet fill valves
 Specifications :
  • Working Pressure: 100 PSI
  • Air Temperature: 35° - 120° F
  • Max Working Pressure: 150 PSI
  • Water Temperature: 35° - 140° F
  • Certifications: UL, cUL, UPC, cUPC -NSF 61-8
  • Minimal Detection: 1/2 oz per minute
  • Pressure Drop <3 @30 PSI & under 5 PSI @ 50 PG
  • Connections: 1" FPT on both ends of the Assembly
  • Valve Assembly Dimensions: 9-1/2" L x 4-3/4" D x 9-1/2" H
  • WaterProof Valve Assembly (IP68) for Indoor & Outdoor Use
Note: The FloLogic ACTASSY0035 Replacement Actuator comes with a replacement valve, but does not include the flow sensor.

Weight & Dimensions

Approx Height (Inches)

9-1/2"

Approx Length (Inches)

4-3/4"

Approx Width (Inches)

9-1/2"

Details

Measurement Range

1/2 oz. Minimum

Ambient Temperature Range

35° - 120° F

Inlet/Outlet Size

1" FPT

Liquid Temperature

35° - 140° F

Max Operating Pressure

150 PSI

Operating Pressure Range

100 PSI

Power

AC + Battery

Warranty & Certifications

Certifications

UL; cUL; UPC; cUPC; NSF 61-8

Warranty

Five-year warranty on primary valve and one-year warranty on electronics
