FloLogic RIB Control Relay for System 3.5

Part Number: RIB01BDC

Your price:

Choose

Control Relay for 110 VAC Circuit

Control Relay for 220 VAC Circuit

Quantity

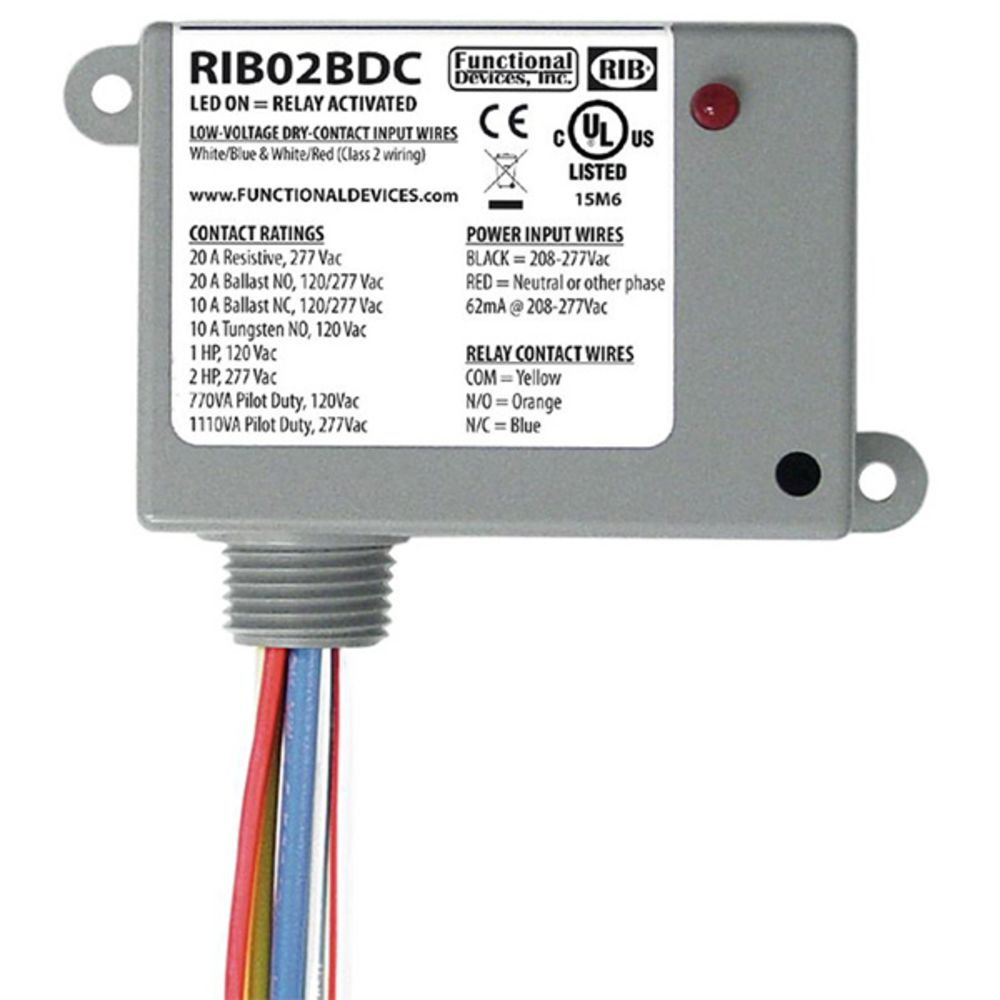

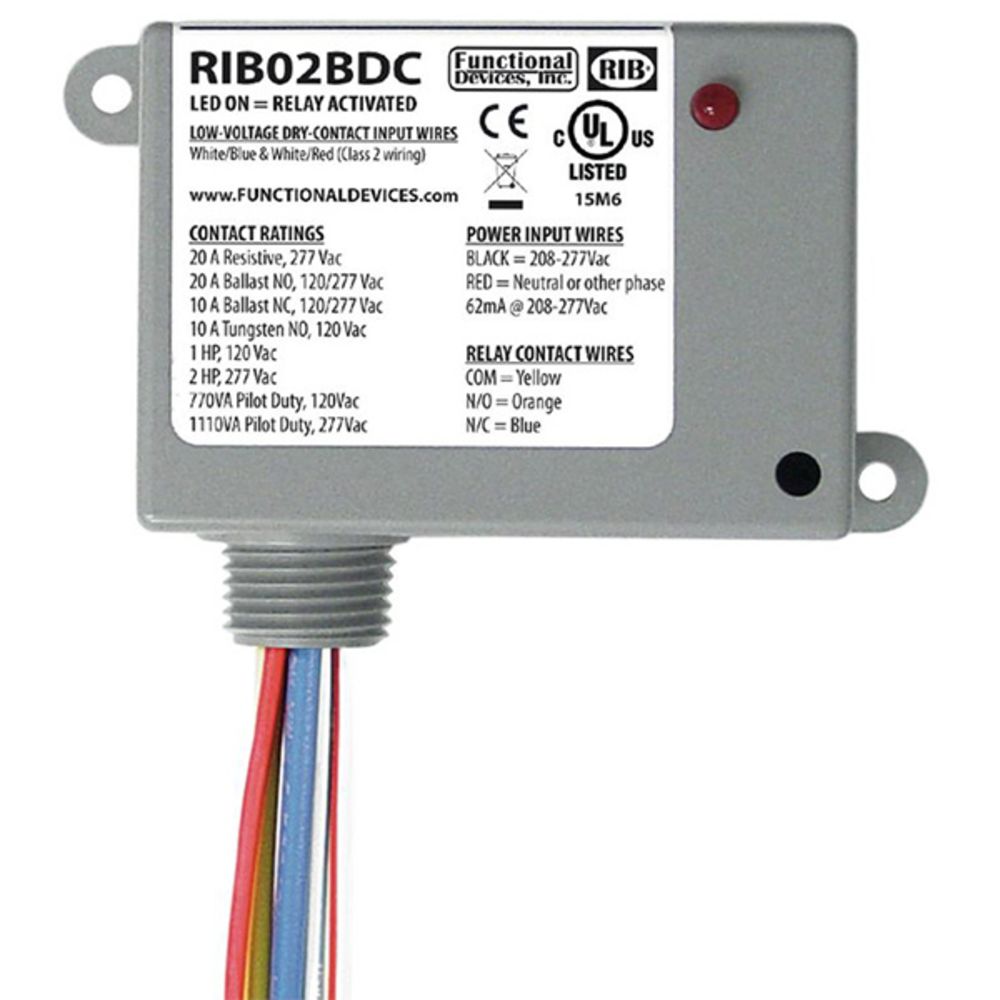

The FloLogic RIB01BDC & RIB02BDC are the Control Relays for the FloLogic System 3.5. These control relays are packaged to save time and money by combining the components in the unit. Both units features the relay, LED indicator, socket, and protective cover.

Specifications:

Gold Flash: No
Operate Time: 1.8 seconds
Operating Temperature: -30 to 140° F
Dimensions: 2.30" x 1.80" with .50" NPT nipple
# Relays & Contact Type: One (1) SPDT Continuous Duty Coil
Override Switch: No
Wires: 16", 600V
Relay Status: LED On = Activated
RIB01BDC Power Input: 42 mA @120 Vac
RIB02BDC Power Input: 62 mA @ 208-277 Vac

Approvals: UL Listed, UL916, C-UL California State Fire Marshal, CE, RoHS

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	42 mA
Voltage	120V
Product Weight & Dimensions
Product Weight (lbs)	1.5

Product Details
Amps	42 mA
Voltage	120V
Product Weight & Dimensions
Product Weight (lbs)	1.5

Gold Flash: No
Operate Time: 1.8 seconds
Operating Temperature: -30 to 140° F
Dimensions: 2.30" x 1.80" with .50" NPT nipple
# Relays & Contact Type: One (1) SPDT Continuous Duty Coil
Override Switch: No
Wires: 16", 600V
Relay Status: LED On = Activated
RIB01BDC Power Input: 42 mA @120 Vac
RIB02BDC Power Input: 62 mA @ 208-277 Vac

Approvals: UL Listed, UL916, C-UL California State Fire Marshal, CE, RoHS
