Flojet

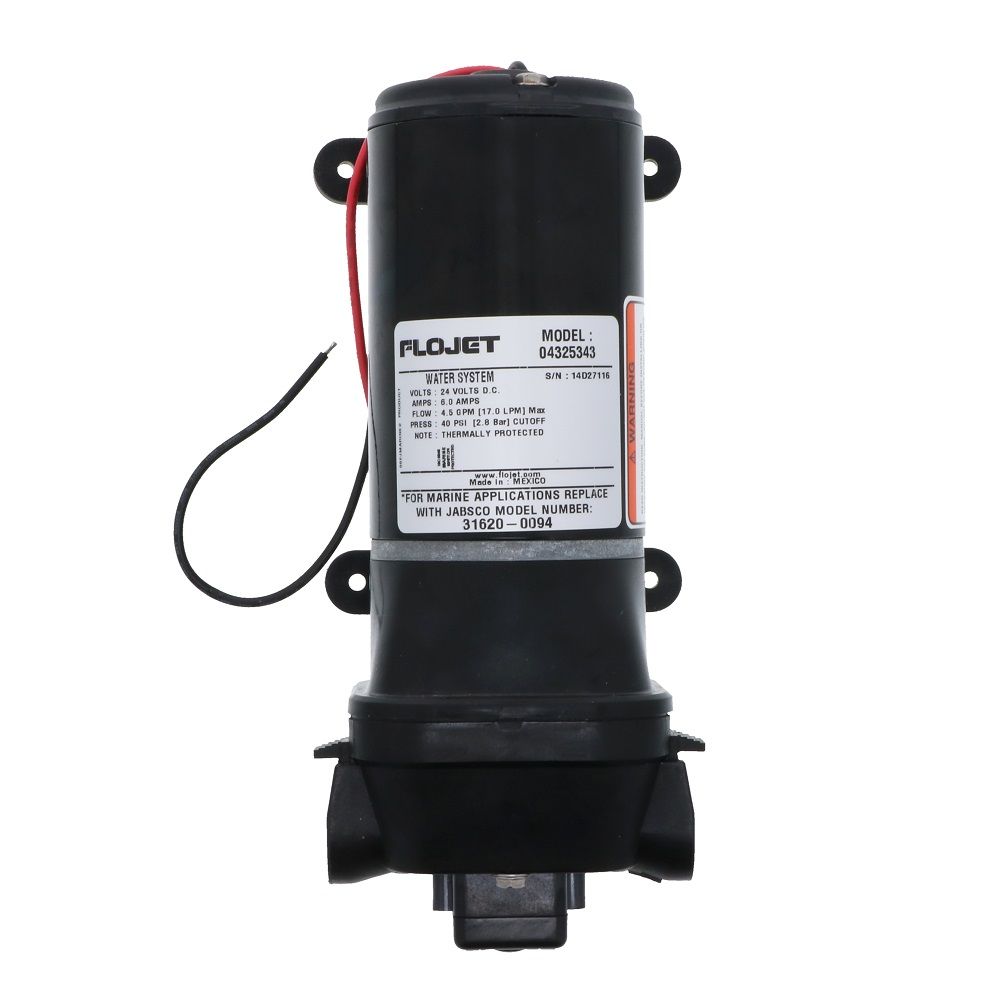

Flojet Quad II 4325 Series Automatic Washdown Pump 4.5 gpm 40 psi

Part Number: 04325-343A

In Stock

out of stock

In Stock

Closeout sale item with limited availability.

$179.15 Regular price


The Flojet Quad II 4325 Series Automatic Washdown Pump is ideal for cleaning leisure boats, fish boxes, anchor chains and dinghies. This diaphragm pump is controlled by a pressure switch and is capable of flowing up 4.5 gallons per minute and pressure as high as 40 psi. The Quad II Diaphragm 4325 series heavy duty deck wash pump is available in 24V DC or 32V DC and includes and inlet strainer to protect the pump from debris.

Additional Specifications:
  • Can be used for washdown, baitwell circulation or as a fresh water pump
  • Can be used in fresh water or salt water applications
  • Flow Rate: up to 4.5 gpm
  • Pressure: up to 40 psi
  • Self-priming up to 2.4 m vertical lift
  • Dry running
  • Soft, noise absorbing mounts
  • Corrosion resistant materials

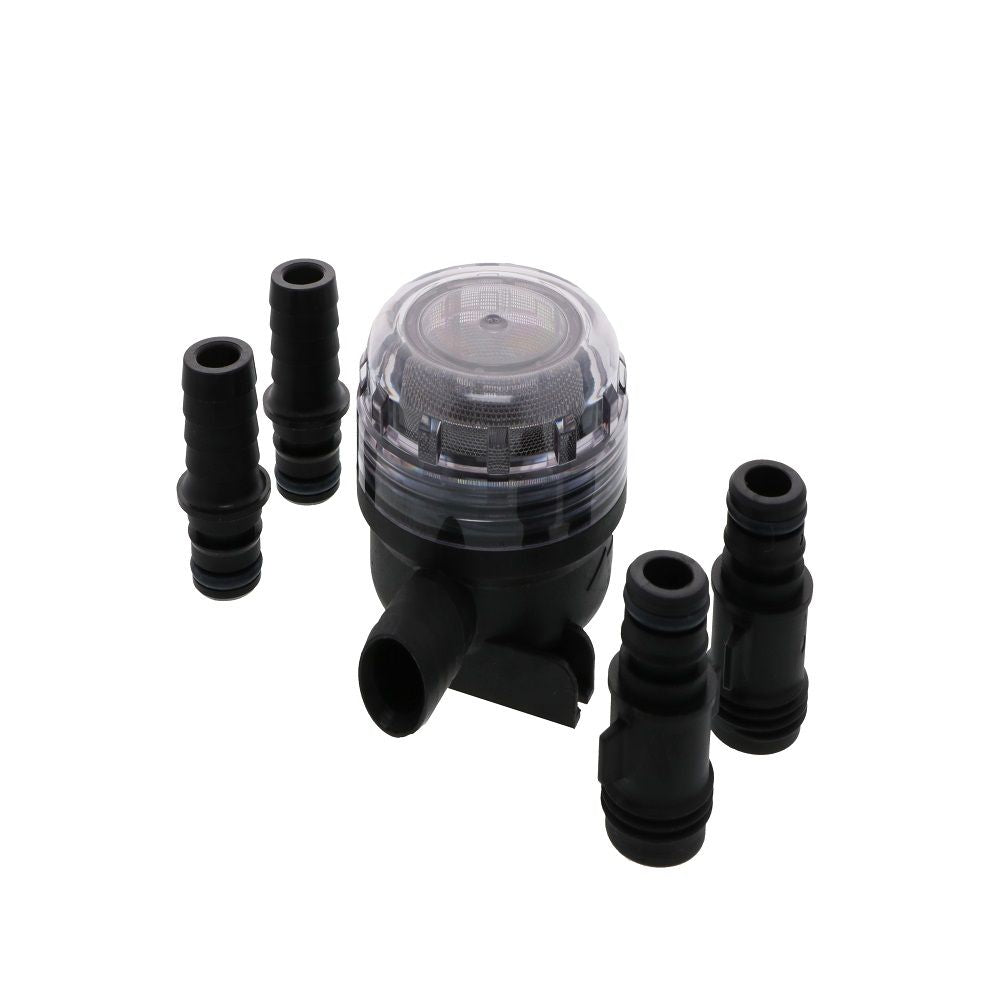

  • Includes inlet strainer
  • 3/4" hose barb and 3/4" MPT fittings included
  • Other fitting options available for purchase


Weight & Dimensions

Approx Height (Inches)

3.75 Inches

Approx Length (Inches)

9.9 Inches

Approx Width (Inches)

6.3 Inches

Details

Series

4325

Barb Size

3/4" ID

Amps

24V: 3.0 A 32V: 2.0 A Amps

Flow Rate

4.5 GPM

Size

3/4"

Voltage

24VDC

Suction Lift

2.4 meters Max

Inlet/Outlet Connection

3/4" | MPT

Wire Option

Bare Wire

Warranty & Certifications

Certifications

Meets USCB electrical standards


Flojet





The Flojet Quad II 4325 Series Automatic Washdown Pump is ideal for cleaning leisure boats, fish boxes, anchor chains and dinghies. This diaphragm pump is controlled by a pressure switch and is capable of flowing up 4.5 gallons per minute and pressure as high as 40 psi. The Quad II Diaphragm 4325 series heavy duty deck wash pump is available in 24V DC or 32V DC and includes and inlet strainer to protect the pump from debris.

Additional Specifications:
  • Can be used for washdown, baitwell circulation or as a fresh water pump
  • Can be used in fresh water or salt water applications
  • Flow Rate: up to 4.5 gpm
  • Pressure: up to 40 psi
  • Self-priming up to 2.4 m vertical lift
  • Dry running
  • Soft, noise absorbing mounts
  • Corrosion resistant materials
  • Includes inlet strainer
  • 3/4" hose barb and 3/4" MPT fittings included
  • Other fitting options available for purchase

NOTE: Closeout sale item with limited availability.

Weight & Dimensions

Approx Height (Inches)

3.75 Inches

Approx Length (Inches)

9.9 Inches

Approx Width (Inches)

6.3 Inches

Details

Series

4325

Barb Size

3/4" ID

Amps

24V: 3.0 A 32V: 2.0 A Amps

Flow Rate

4.5 GPM

Size

3/4"

Voltage

24VDC

Suction Lift

2.4 meters Max

Inlet/Outlet Connection

3/4" | MPT

Wire Option

Bare Wire

Warranty & Certifications

Certifications

Meets USCB electrical standards
