Flexcon Industries

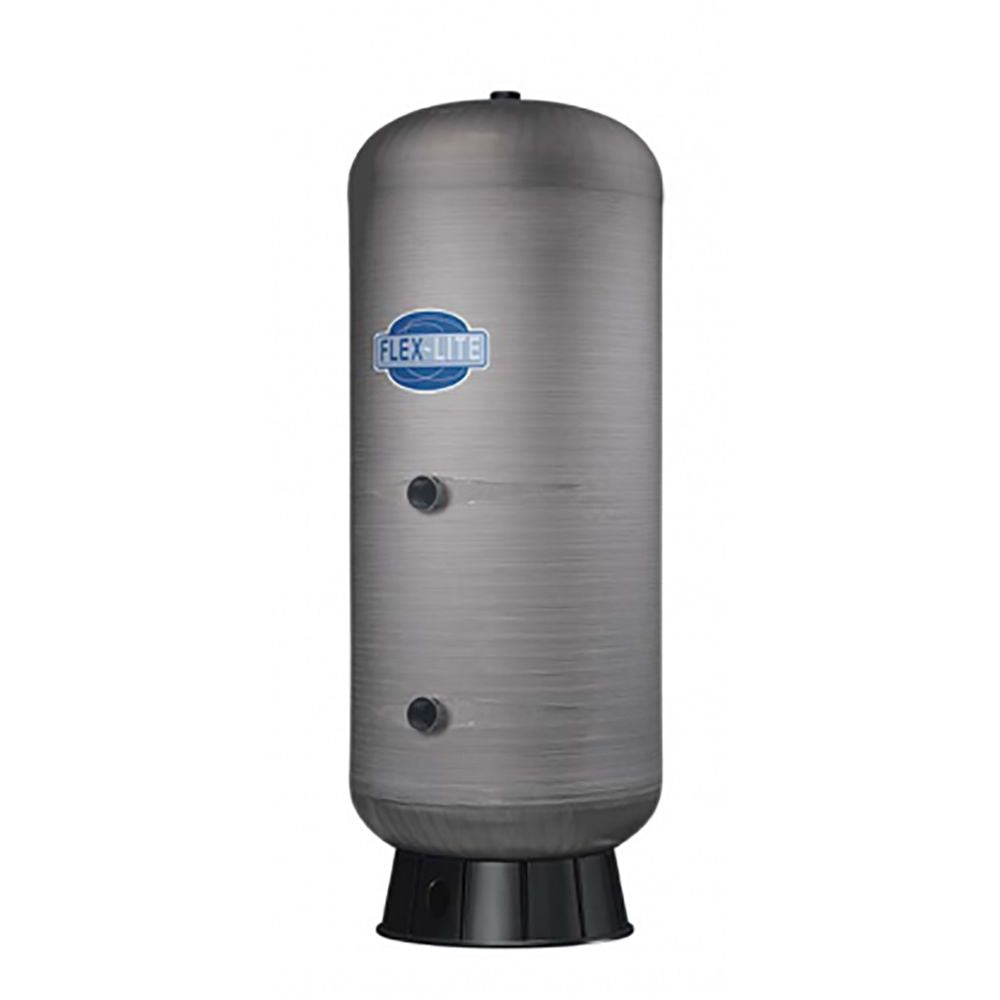

Flexcon Flexwave Non-Diaphragm Composite Storage Tank w/ Side Ports - 40 Gal

Part Number: FLS40

In Stock

out of stock

In Stock

$579.23

The Flexwave FLS Composite Storage Tank is lightweight, and ideal for light commercial and residential water storage. The side ports allow standard air over water or flexible flow application. The polypropylene liner is non-corrosive and adds no taste or odor to your stored water.

Specifications:
  • Side Ports for Hydro-Pneumatic Applications
  • Volume: 40 Gal/151 L
  • Connection:
    • Socket: 1-1/4" Sch 80
    • Top Port: 1-1/4" FPT
  • Max Working Pressure: 100 psi/6.89 bar
  • Max Working Temperature: 120°F/48.9°C
Materials Of Construction:
  • Top and bottom domes: Injection molded copolymer polypropylene
  • Shell: Extruded copolymer polypropylene
  • Outer shell: Fiberglass-wound, epoxy resin coated
  • Base: Injection molded, high-impact ABS
  • Connection: Rigid schedule 80 PVC
  • Flex port fittings: Stainless steel reinforced, glass filled polypropylene insert molded into the top dome
  • Top port fitting: Stainless steel reinforced, glass filled polypropylene insert molded into the top dome




Weight & Dimensions

Length (inches)

16.5

Height (inches)

53.4

Width (inches)

16.5

Weight (lbs)

31

Details

Max Temp (°F)

120

Max Pressure (Psi)

100

Size

1-1/4"

Volume

40 Gallon

Inlet/Outlet Connection

1-1/4" FPT, 1-1/4" Socket


Flexcon




The Flexwave FLS Composite Storage Tank is lightweight, and ideal for light commercial and residential water storage. The side ports allow standard air over water or flexible flow application. The polypropylene liner is non-corrosive and adds no taste or odor to your stored water.

Specifications:
  • Side Ports for Hydro-Pneumatic Applications
  • Volume: 40 Gal/151 L
  • Connection:
    • Socket: 1-1/4" Sch 80
    • Top Port: 1-1/4" FPT
  • Max Working Pressure: 100 psi/6.89 bar
  • Max Working Temperature: 120°F/48.9°C
Materials Of Construction:
  • Top and bottom domes: Injection molded copolymer polypropylene
  • Shell: Extruded copolymer polypropylene
  • Outer shell: Fiberglass-wound, epoxy resin coated
  • Base: Injection molded, high-impact ABS
  • Connection: Rigid schedule 80 PVC
  • Flex port fittings: Stainless steel reinforced, glass filled polypropylene insert molded into the top dome
  • Top port fitting: Stainless steel reinforced, glass filled polypropylene insert molded into the top dome



Weight & Dimensions

Length (inches)

16.5

Height (inches)

53.4

Width (inches)

16.5

Weight (lbs)

31

Details

Max Temp (°F)

120

Max Pressure (Psi)

100

Size

1-1/4"

Volume

40 Gallon

Inlet/Outlet Connection

1-1/4" FPT, 1-1/4" Socket
