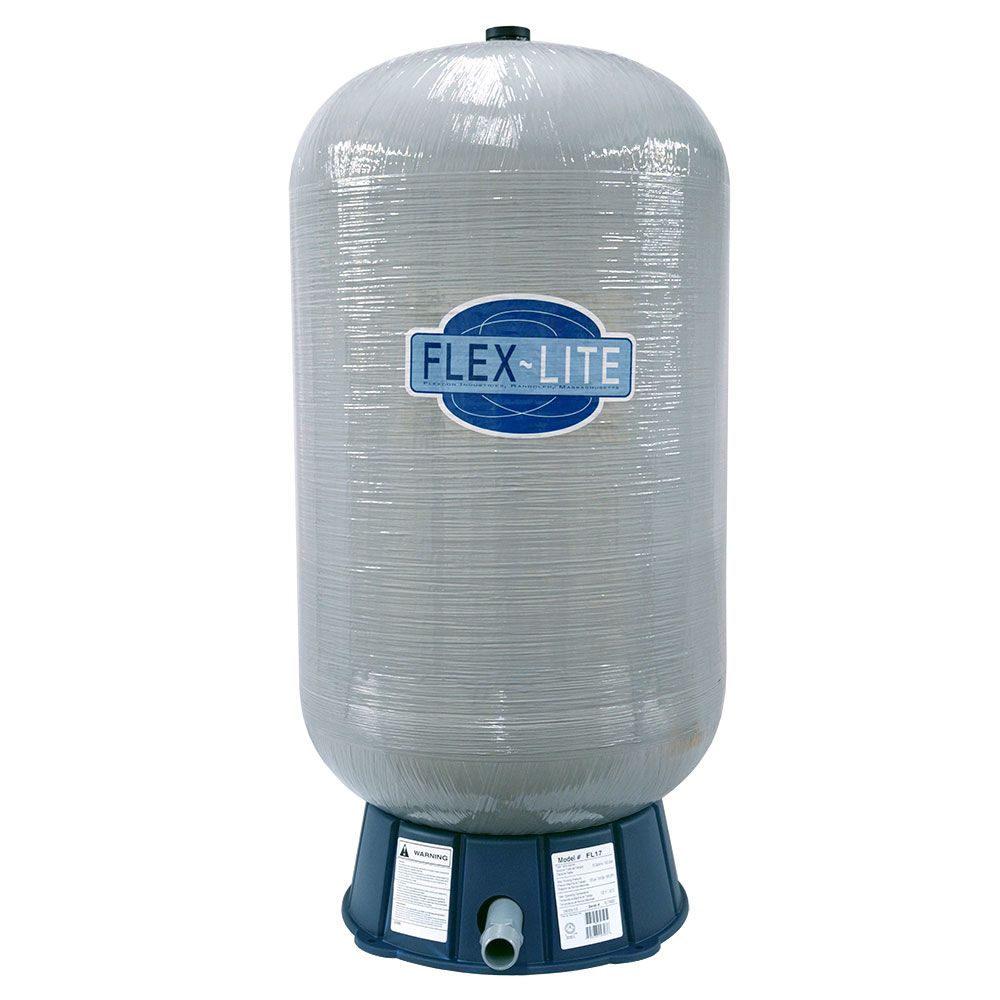

Flex-Lite FL30 Composite Well Pressure Tank 90 gallon

Part Number: FL30

In Stock

out of stock

In Stock

This item is discontinued. We recommend the WellMate WM-25WB Well Pressure Tank 87 gal as a substitute.


The Flex-Lite FL30 is a corrosion-proof well pressure tank that is made with a composite of continuous strand fiberglass filament that is coated with epoxy. The Flex-Lite FL series features the improved CAD-2 (Controlled Action Diaphragm) design which is stronger and doesn't crease and wear out like older bag designs. The 100% butyl diaphragm is chlorine resistant and combined with the precision molded copolymer polypropylene lower water chamber provides superior air and water separation.

Compatible with the following tanks:
  • WellMate WM25
  • Sta-Rite SR85, PSP-FW85-25
  • Flex2Pro H2PL90

Features:

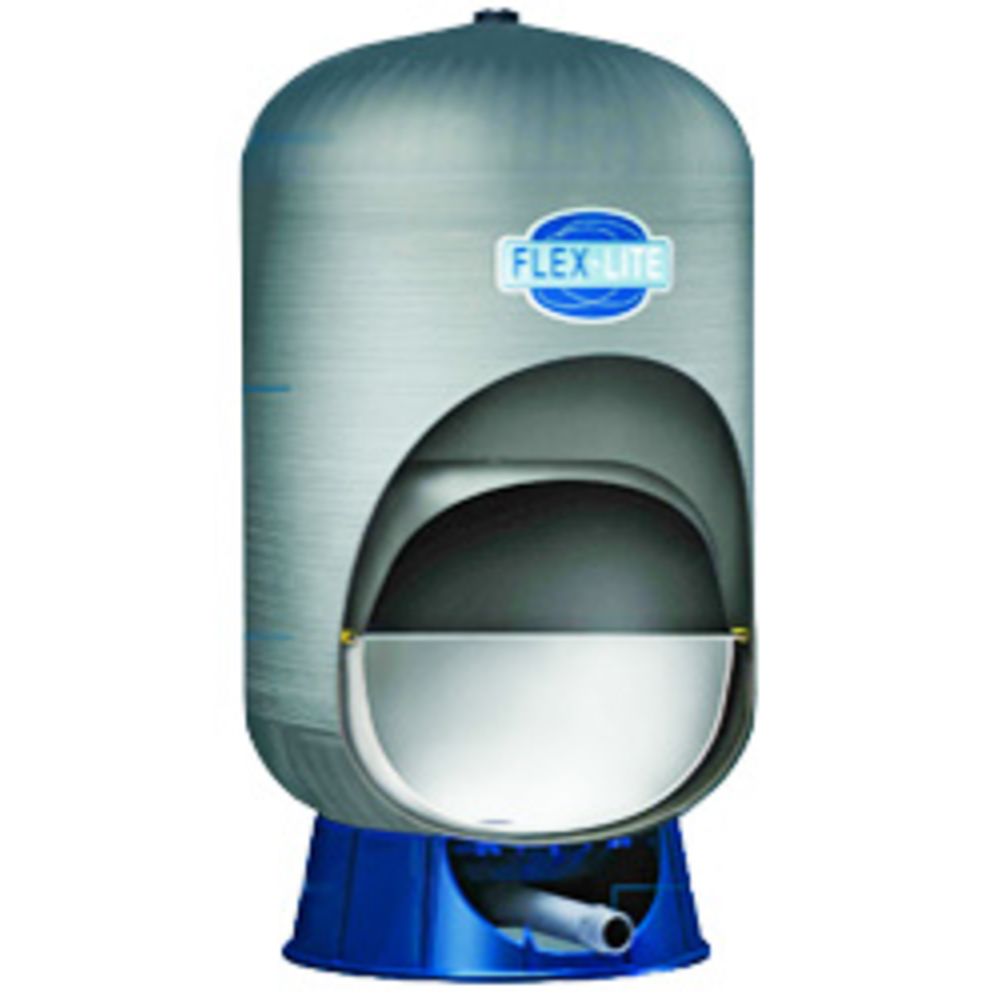

  • CAD-2 diaphragm technology allows the water chamber to be sized for optimum drawdown
  • Corrosion-proof composite construction
  • Won’t rust in corrosive environments, particularly important in coastal regions
  • Little or no maintenance
  • Longer life, greater flexibility
  • Light weight
  • Drawdown at 30/50 Setting: 30.6 gallons
  • 5 year warranty
  • NSF Standard 61 listed
  • Made in the USA




Weight & Dimensions

Approx Weight

77 Lbs

Height W/ Stand

57"

Details

Drawdown Volume

36.2 Gallons @ 20/40 Setting, 30.6 Gallons @ 30/50 Setting, 26.5 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

24.2"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Polypropylene tank reinforced with fiberglass, sealed with epoxy resin

Max Operating Pressure

125 PSI

Max Operating Temperature

140 °F

Origin

USA

Size

1-1/4"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

90 Gallons

Inlet/Outlet Connection

1-1/4" MPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years
