Flexcon Industries

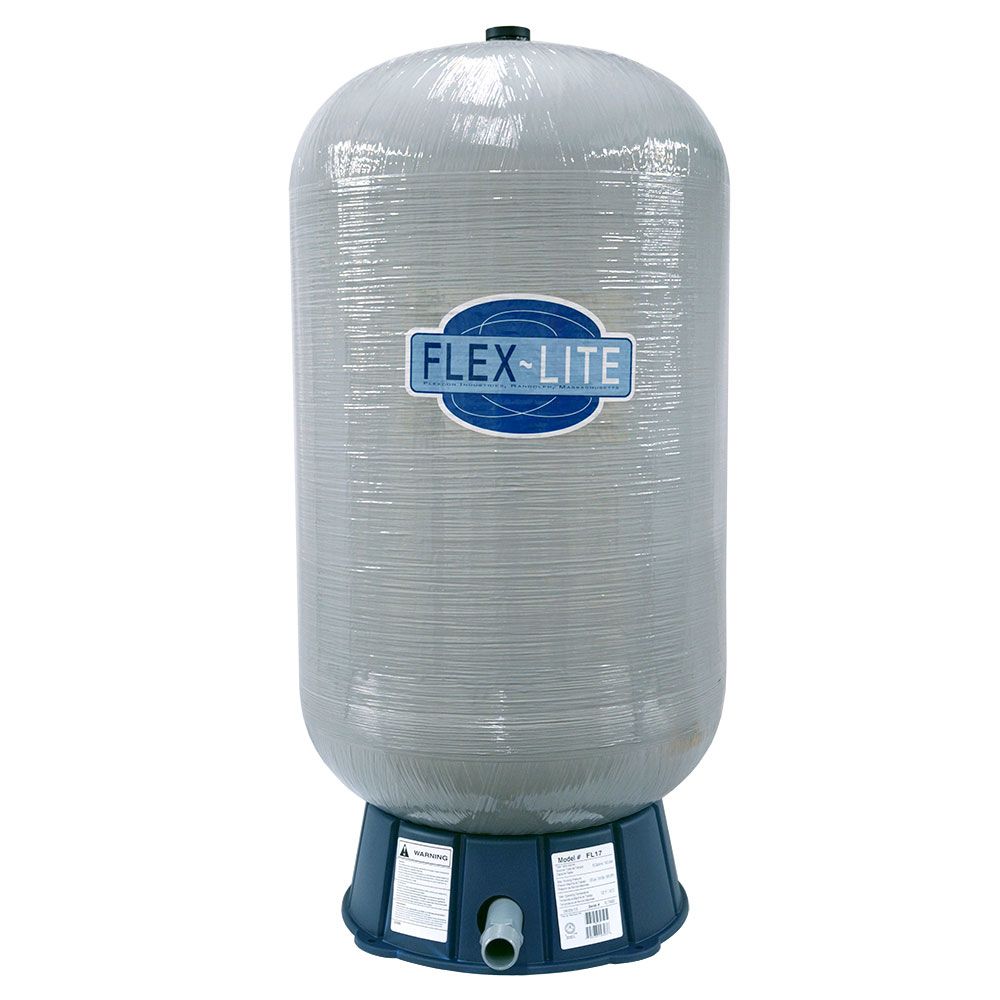

Flex-Lite FL17 Composite Well Pressure Tank 50 gallon

Part Number: FL17

In Stock

out of stock

In Stock

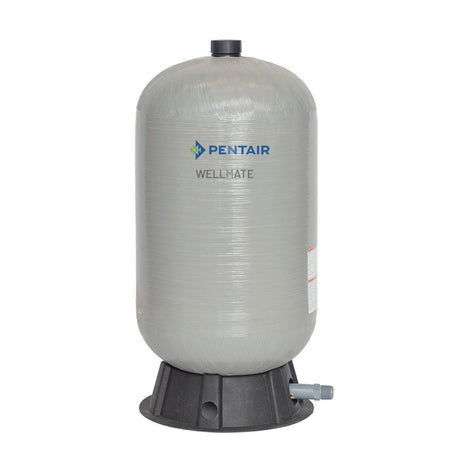

This item is discontinued. We recommend the WellMate WM-14WB Well Pressure Tank 47 gal as a substitute.

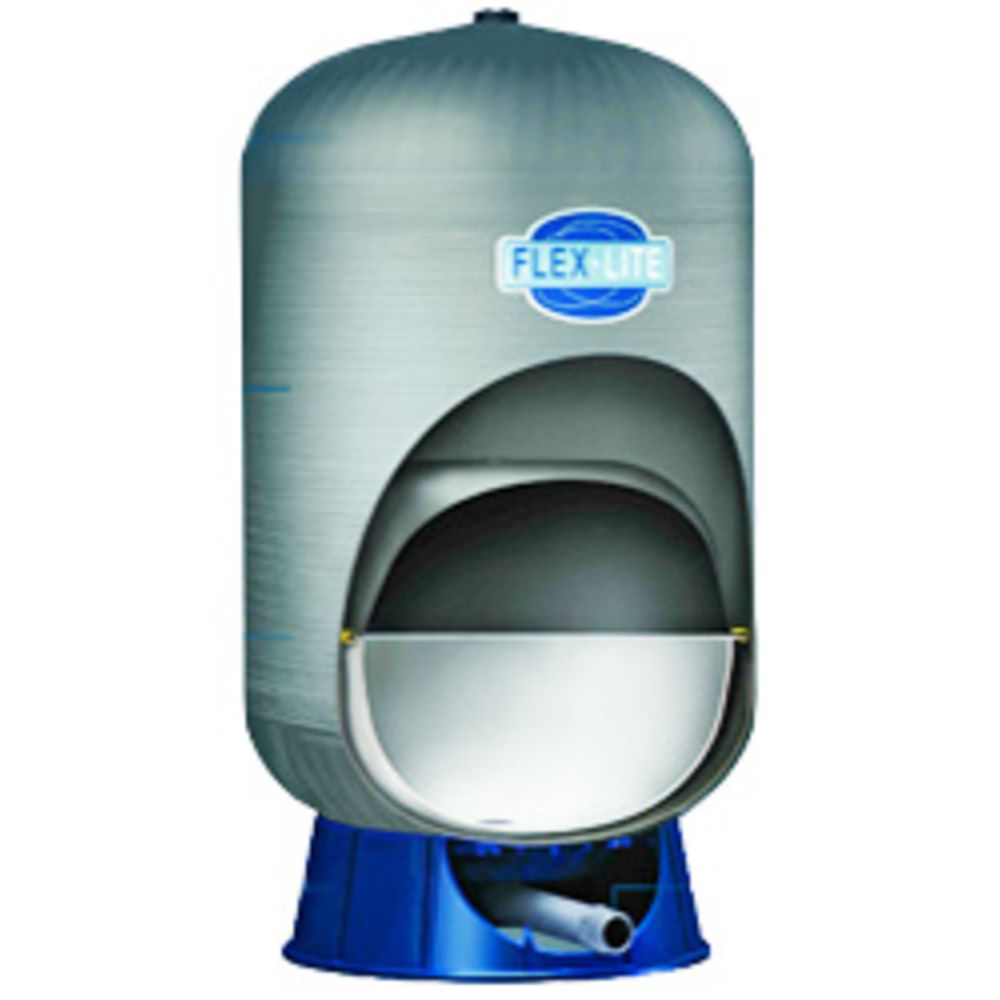

The Flex-Lite FL17 is a corrosion-proof well pressure tank that is made with a composite of continuous strand fiberglass filament that is coated with epoxy. The Flex-Lite FL series features the improved CAD-2 (Controlled Action Diaphragm) design which is stronger and doesn't crease and wear out like older bag designs. The 100% butyl diaphragm is chlorine resistant and combined with the precision molded copolymer polypropylene lower water chamber provides superior air and water separation.

Features:
  • CAD-2 diaphragm technology allows the water chamber to be sized for optimum drawdown
  • Corrosion-proof composite construction
  • Won’t rust in corrosive environments, particularly important in coastal regions
  • Little or no maintenance
  • Longer life, greater flexibility
  • Light weight
  • Drawdown at 30/50 Setting: 17 gallons
  • 5 year warranty
  • NSF Standard 61 listed
  • Made in the USA

Compatible with the following tanks:
  • WellMate WM14
  • Sta-Rite SR48, PSP-FW48-14
  • Flex2Pro H2PL50




Weight & Dimensions

Weight (lbs)

110

Height W/ Stand

43.3"

Details

Max Temp (°F)

140

Max Pressure (Psi)

125

Drawdown Volume

20.1 Gallons @ 20/40 Setting, 17 Gallons @ 30/50 Setting, 14.7 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

21.4"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Polypropylene tank reinforced with fiberglass, sealed with epoxy resin

Origin

USA

Size

1-1/4"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre-Charge

38 PSI

Volume

50 Gallons

Inlet/Outlet Connection

1-1/4" MPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years

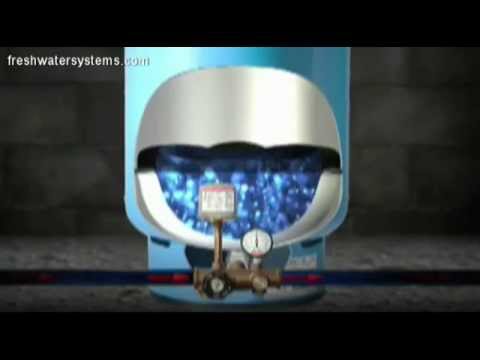

Product Videos



The Flex-Lite FL17 is a corrosion-proof well pressure tank that is made with a composite of continuous strand fiberglass filament that is coated with epoxy. The Flex-Lite FL series features the improved CAD-2 (Controlled Action Diaphragm) design which is stronger and doesn't crease and wear out like older bag designs. The 100% butyl diaphragm is chlorine resistant and combined with the precision molded copolymer polypropylene lower water chamber provides superior air and water separation.

Features:
  • CAD-2 diaphragm technology allows the water chamber to be sized for optimum drawdown
  • Corrosion-proof composite construction
  • Won’t rust in corrosive environments, particularly important in coastal regions
  • Little or no maintenance
  • Longer life, greater flexibility
  • Light weight
  • Drawdown at 30/50 Setting: 17 gallons
  • 5 year warranty
  • NSF Standard 61 listed
  • Made in the USA

Compatible with the following tanks:
  • WellMate WM14
  • Sta-Rite SR48, PSP-FW48-14
  • Flex2Pro H2PL50



NOTE: This item is discontinued. We recommend the WellMate WM-14WB Well Pressure Tank 47 gal as a substitute.

Weight & Dimensions

Weight (lbs)

110

Height W/ Stand

43.3"

Details

Max Temp (°F)

140

Max Pressure (Psi)

125

Drawdown Volume

20.1 Gallons @ 20/40 Setting, 17 Gallons @ 30/50 Setting, 14.7 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

21.4"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Polypropylene tank reinforced with fiberglass, sealed with epoxy resin

Origin

USA

Size

1-1/4"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre-Charge

38 PSI

Volume

50 Gallons

Inlet/Outlet Connection

1-1/4" MPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years
