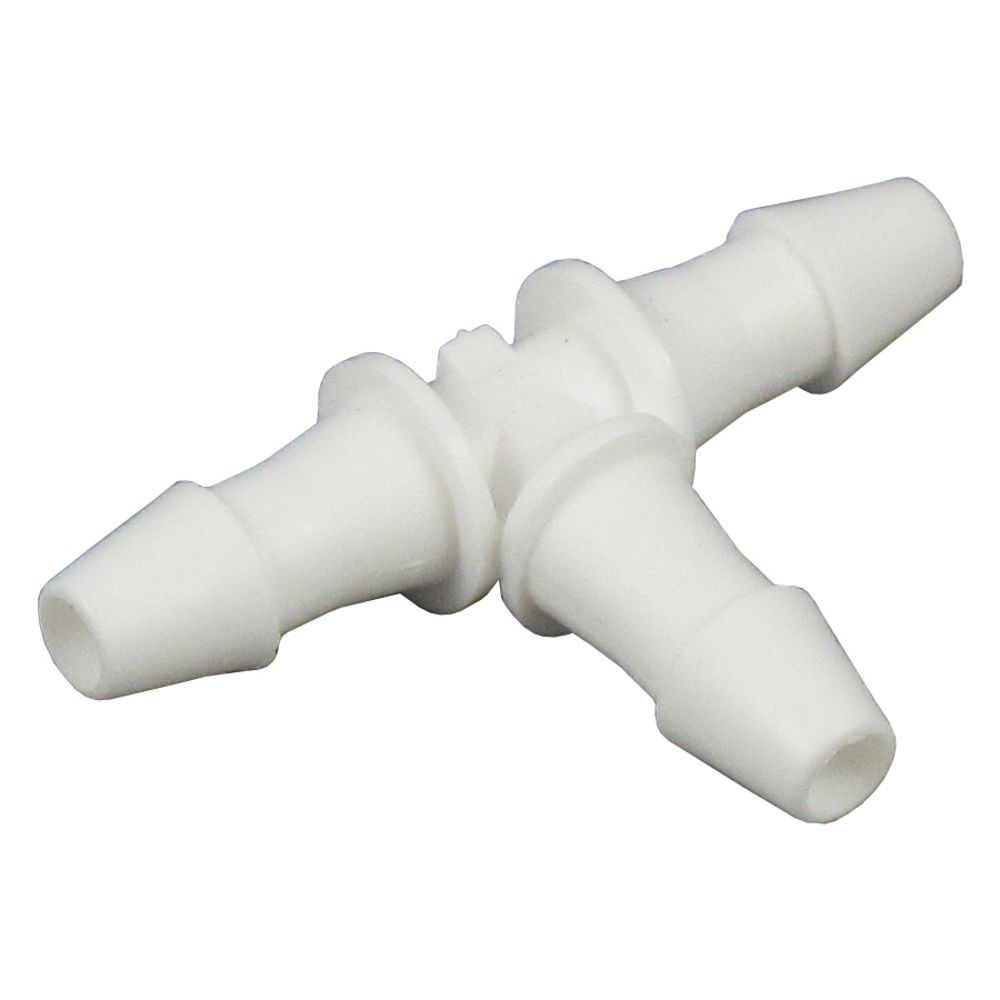

Colder FitQuik Tee tube to tube fittings allow you to connect two small flow applications with one connector. These fittings are precision molded and feature precise hose barbs to ensure the right fit and eliminate tubing leak points for applications such as medical devices, analytical instrumentation and air-driven equipment.
Specifications:
Specifications:
- Material: Polypropylene
- Color: Natural
- Temperature Range: -10°F to 150°F
- Connections: 1/8" ID x 1/8" ID x 1/8" ID Barb
Weight & Dimensions
Length (inches) | 0.75 |
Height (inches) | 0.09 |
Width (inches) | 0.63 |
Weight (lbs) | 0.000625 |
Details
Series | FitQuik |
Max Temp (°F) | 150 |
Min Temp (°F) | -10 |
Barb Size | 1/8" ID |
Application | Water, Air |
Bag Quantity | 100 |
Body Material | Polypropylene |
Color / Finish | Natural |
Mounting Options | Free Floating |
Valve Type | Non-Valved |
Colder FitQuik Tee tube to tube fittings allow you to connect two small flow applications with one connector. These fittings are precision molded and feature precise hose barbs to ensure the right fit and eliminate tubing leak points for applications such as medical devices, analytical instrumentation and air-driven equipment.
Specifications:
- Material: Polypropylene
- Color: Natural
- Temperature Range: -10°F to 150°F
- Connections: 1/8" ID x 1/8" ID x 1/8" ID Barb
Weight & Dimensions
Length (inches) | 0.75 |
Height (inches) | 0.09 |
Width (inches) | 0.63 |
Weight (lbs) | 0.000625 |
Details
Series | FitQuik |
Max Temp (°F) | 150 |
Min Temp (°F) | -10 |
Barb Size | 1/8" ID |
Application | Water, Air |
Bag Quantity | 100 |
Body Material | Polypropylene |
Color / Finish | Natural |
Mounting Options | Free Floating |
Valve Type | Non-Valved |
