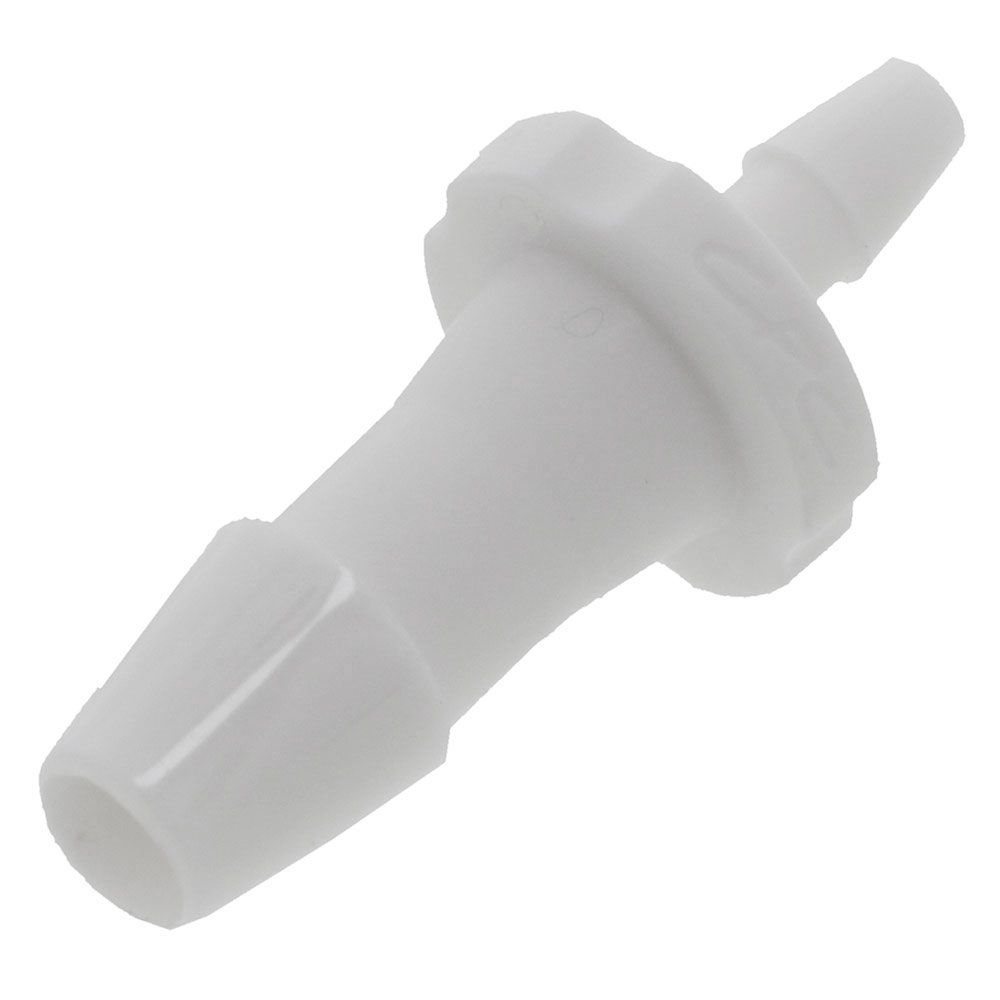

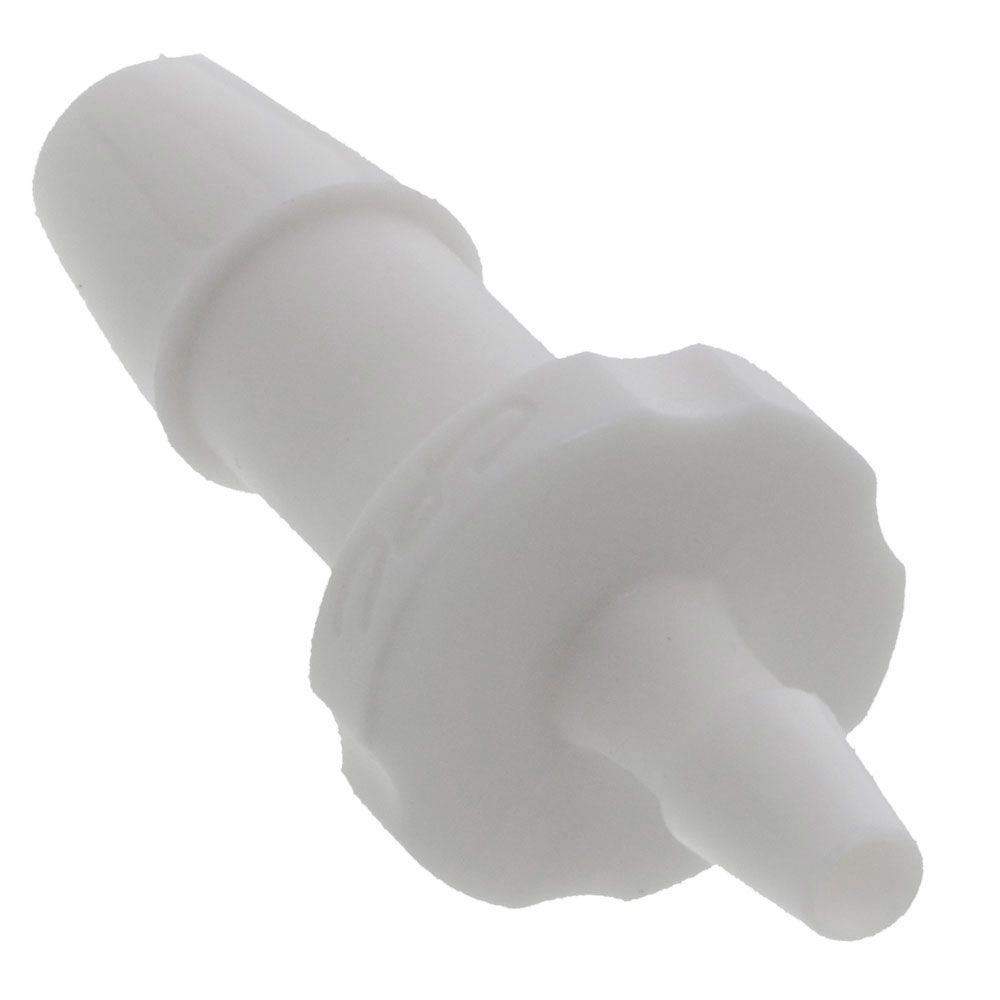

The Colder FitQuik Non-Valved Straight Tube-to-Tube Reducer is a high-quality fitting that ensures leak-free tubing connections in low flow applications, such as medical devices, analytical instrumentation, and air-driven equipment. They are precision molded from instrumentation-grade Nylon and designed to eliminate tubing leak points and reduce breakage. The hose barb connections allow the user to easily create a connection from 1/4" tubing to 1/8" tubing.
Specifications:
Specifications:
- Color: White
- Material Finish: Natural
- Material: Nylon
- Valve Option: Non-Valved
- Connections: 1/4" ID barb x 1/8" ID barb
- Tubing Size: 1/4" ID x 1/8" ID
- Temperature Range: -10°F to 150°F
- Durable, Leak-Proof Connection: Single hose barbs provide a secure connection to the tubing and eliminate potential leak points.
- Easy Installation: This design of this non-valved fitting allows the user to easily connect 1/4" ID tubing to 1/8" ID tubing.
- Instrumentation Grade Nylon: Reduced breakage in demanding applications, and has a temp. range of -10°F to 150°F (-23°C to 66°C).
Weight & Dimensions
Length (inches) | 1.13 |
Height (inches) | 0.38 |
Width (inches) | 0.38 |
Weight (lbs) | 0.000625 |
Details
Series | FitQuik |
Max Temp (°F) | 150 |
Min Temp (°F) | -10 |
Barb Size | 1/4" ID, 1/8" ID |
Application | Water, Air |
Bag Quantity | 100 |
Body Material | Nylon |
Color / Finish | White |
Mounting Options | Free Floating |
Valve Type | Non-Valved |
The Colder FitQuik Non-Valved Straight Tube-to-Tube Reducer is a high-quality fitting that ensures leak-free tubing connections in low flow applications, such as medical devices, analytical instrumentation, and air-driven equipment. They are precision molded from instrumentation-grade Nylon and designed to eliminate tubing leak points and reduce breakage. The hose barb connections allow the user to easily create a connection from 1/4" tubing to 1/8" tubing.
Specifications:
- Color: White
- Material Finish: Natural
- Material: Nylon
- Valve Option: Non-Valved
- Connections: 1/4" ID barb x 1/8" ID barb
- Tubing Size: 1/4" ID x 1/8" ID
- Temperature Range: -10°F to 150°F
- Durable, Leak-Proof Connection: Single hose barbs provide a secure connection to the tubing and eliminate potential leak points.
- Easy Installation: This design of this non-valved fitting allows the user to easily connect 1/4" ID tubing to 1/8" ID tubing.
- Instrumentation Grade Nylon: Reduced breakage in demanding applications, and has a temp. range of -10°F to 150°F (-23°C to 66°C).
Weight & Dimensions
Length (inches) | 1.13 |
Height (inches) | 0.38 |
Width (inches) | 0.38 |
Weight (lbs) | 0.000625 |
Details
Series | FitQuik |
Max Temp (°F) | 150 |
Min Temp (°F) | -10 |
Barb Size | 1/4" ID, 1/8" ID |
Application | Water, Air |
Bag Quantity | 100 |
Body Material | Nylon |
Color / Finish | White |
Mounting Options | Free Floating |
Valve Type | Non-Valved |
