Colder Products

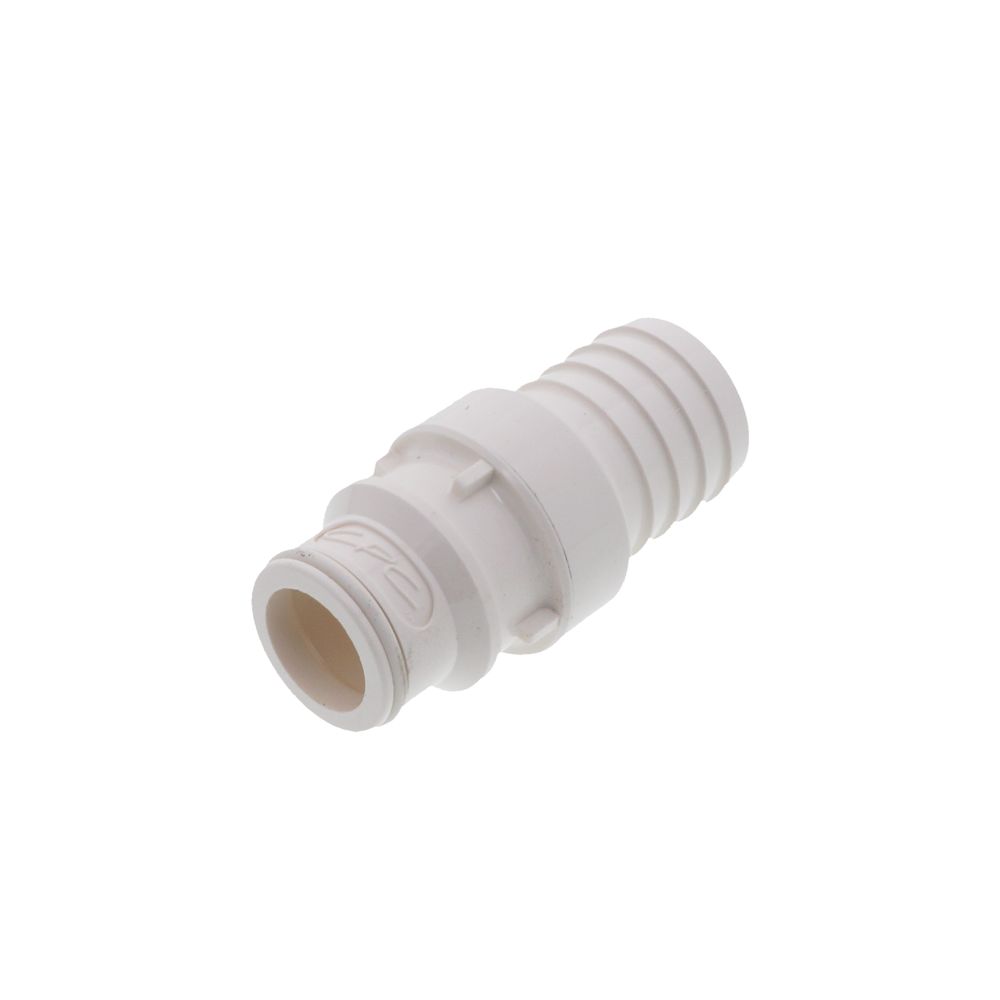

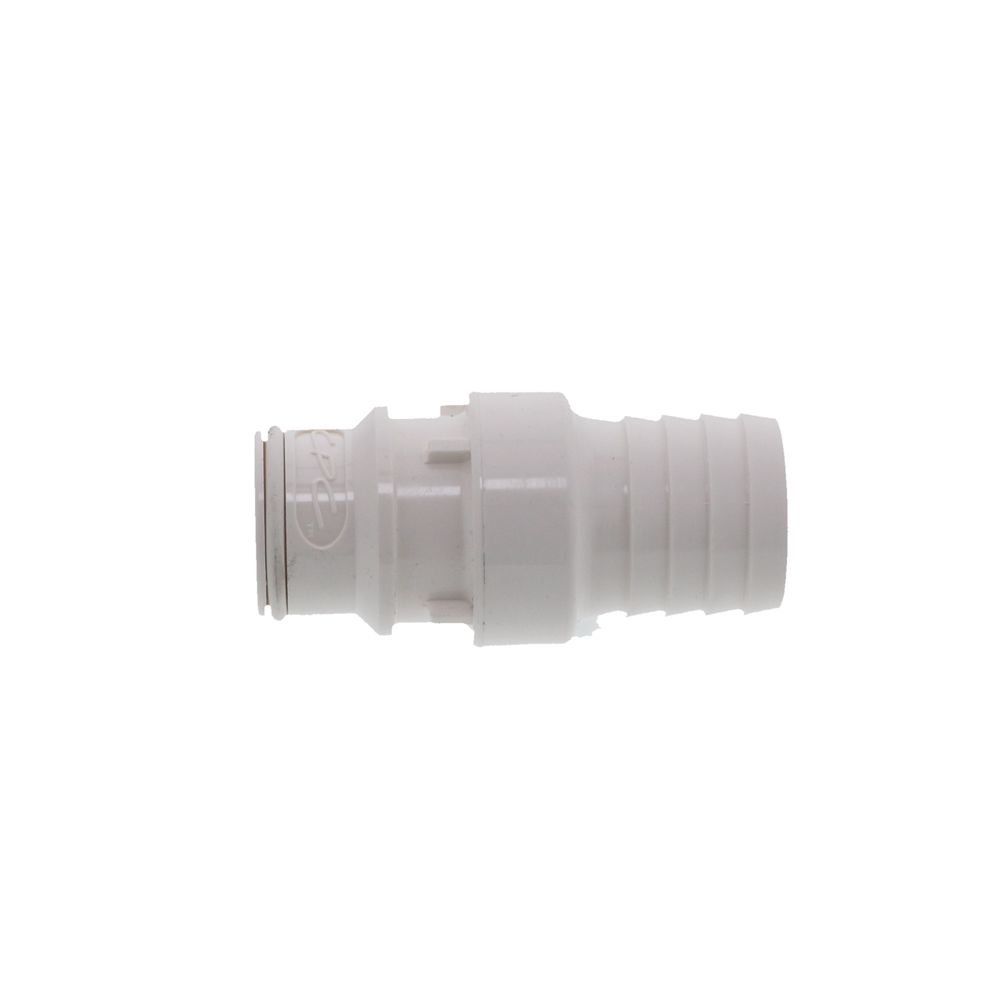

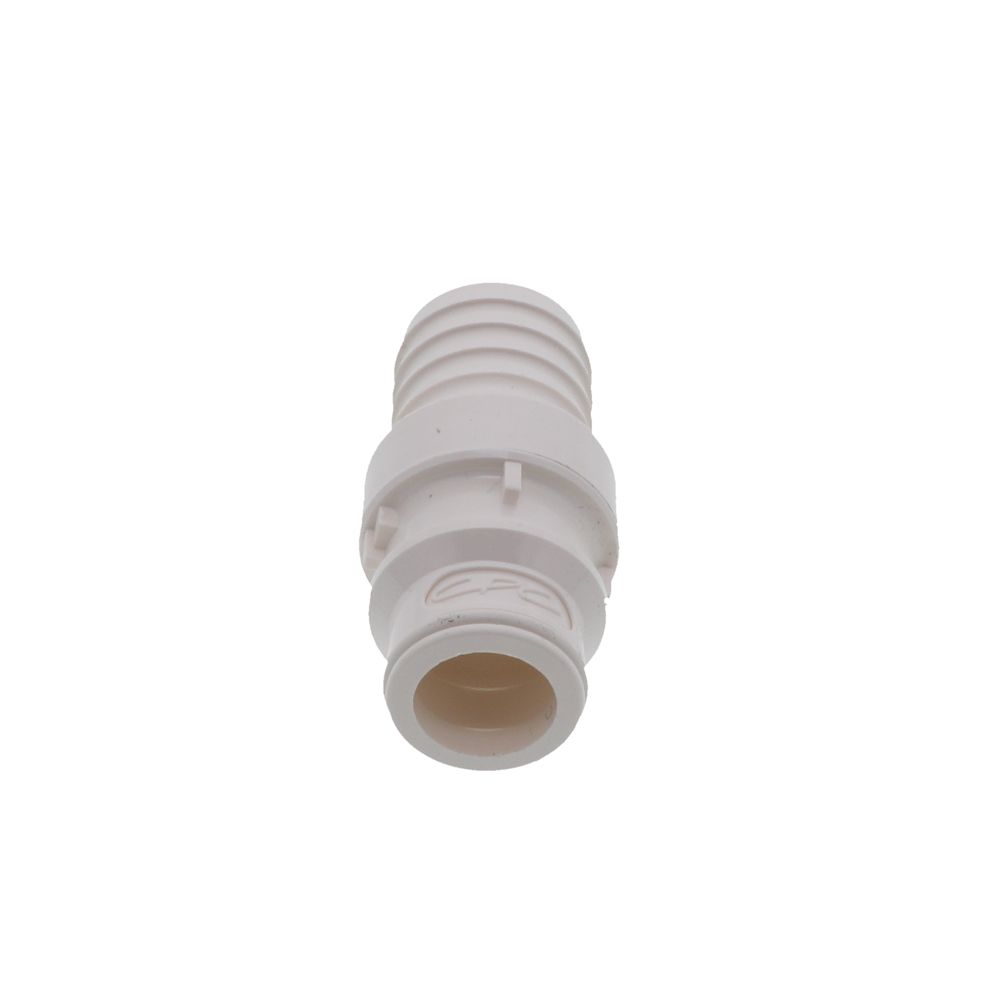

FFC221235 Non-Valved Hose Barb Coupling Insert 3/4 ID Barb

Part Number: FFC221235

In Stock

out of stock

In Stock

$7.21

The FFC35 Series 1/2" flow couplings feature twice the flow of the HFC35 Series couplings and are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability. The FFC35 has a non-valved bore that increases flow and minimizes turbulence.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: FDA Buna-N
  • Available in Bags of 10 units
Note: A restocking fee of 25% will be charged on returns for Colder FFC35 Series Couplings.



Details

Application

Water

Barb Size

3/4" ID

Body Material

Polysulfone

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

FDA Buna-N

Series

FFC35

Spring

316 Stainless Steel

Valve Type

Non-Valved

Color / Finish

White

Origin

USA

Type

Coupling Insert


FFC221235




The FFC35 Series 1/2" flow couplings feature twice the flow of the HFC35 Series couplings and are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability. The FFC35 has a non-valved bore that increases flow and minimizes turbulence.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: FDA Buna-N
  • Available in Bags of 10 units
Note: A restocking fee of 25% will be charged on returns for Colder FFC35 Series Couplings.


Details

Application

Water

Barb Size

3/4" ID

Body Material

Polysulfone

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

FDA Buna-N

Series

FFC35

Spring

316 Stainless Steel

Valve Type

Non-Valved

Color / Finish

White

Origin

USA

Type

Coupling Insert

Documentation
FFC221235
Reviews
