Colder Products

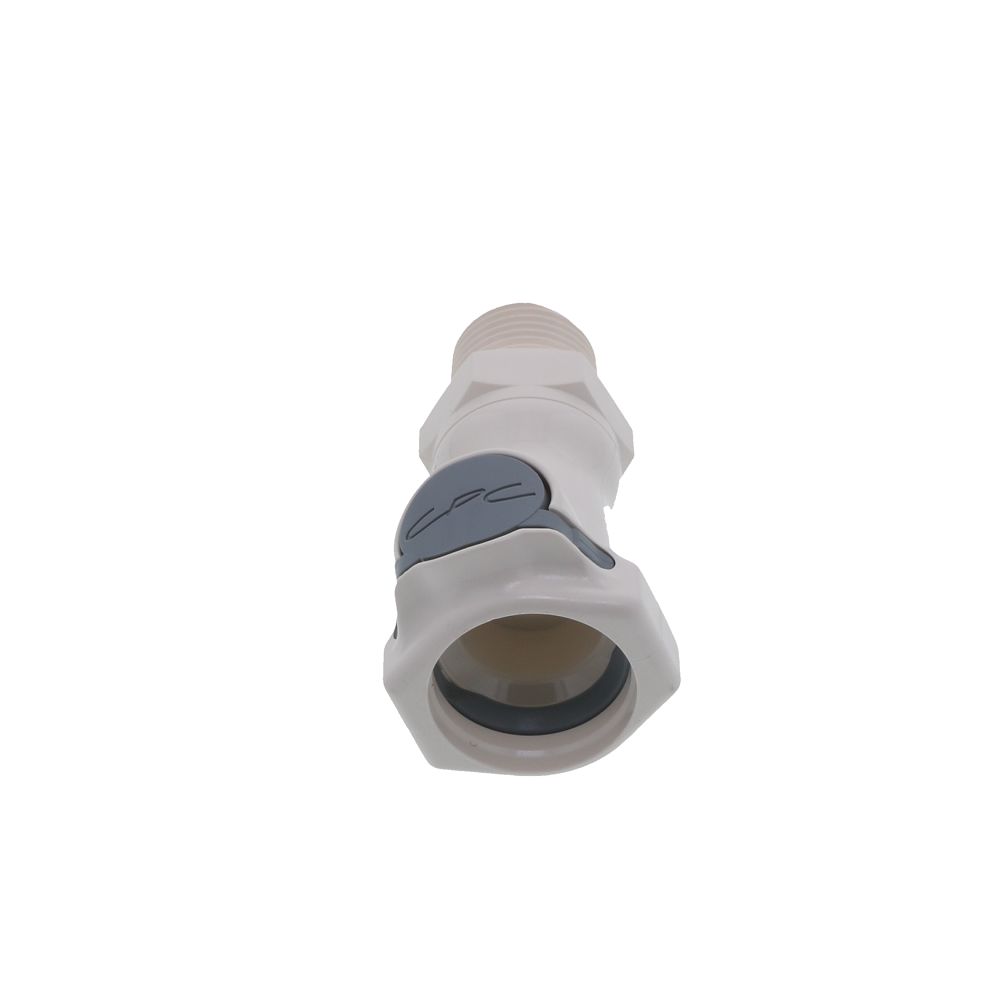

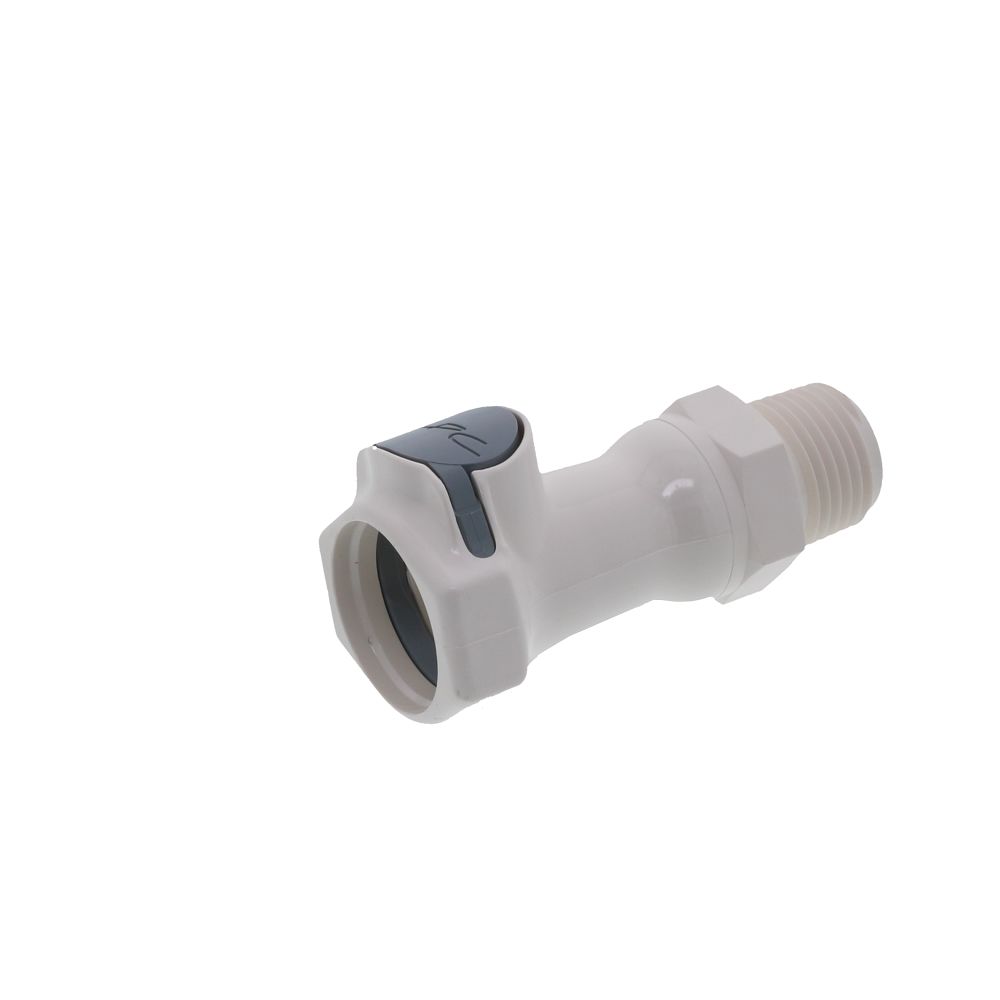

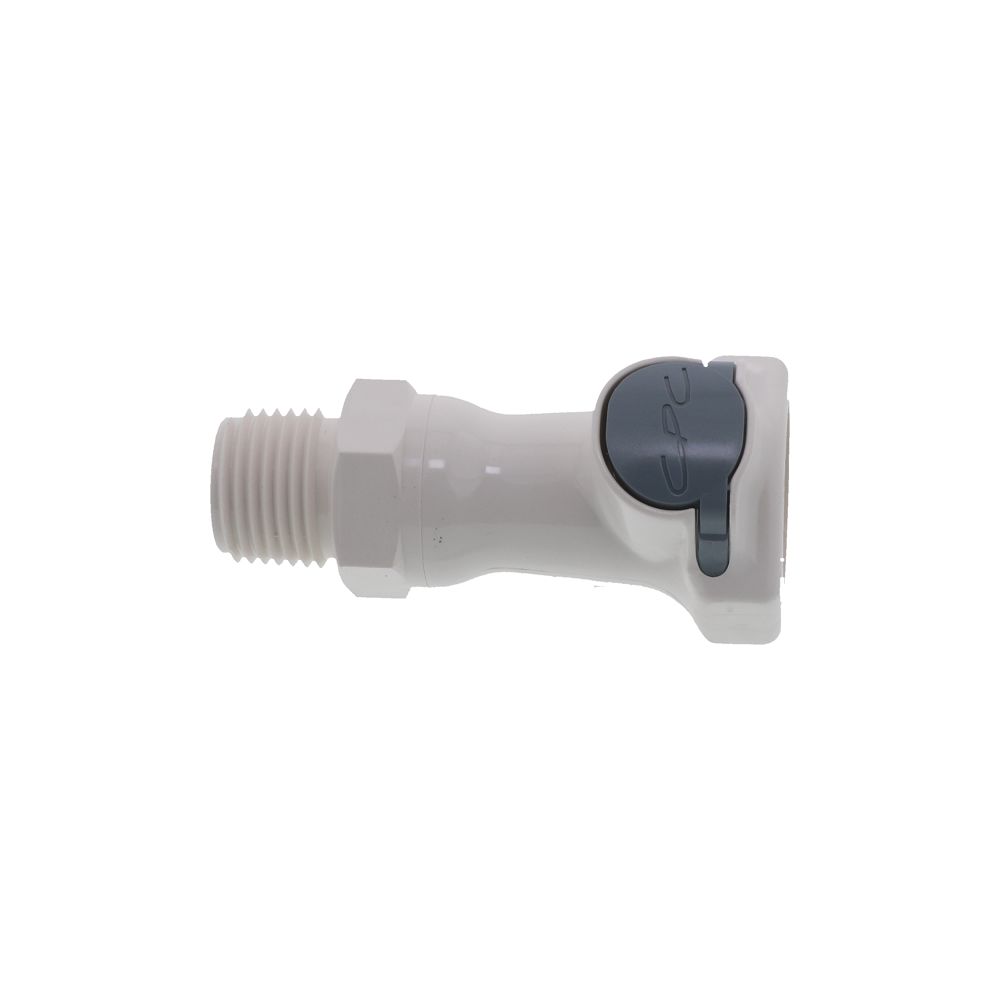

FFC10835 Non-Valved Male Thread Coupling Body 1/2 NPT

Part Number: FFC10835

In Stock

out of stock

In Stock

$12.86

The FFC35 Series 1/2" flow couplings feature twice the flow of the HFC35 Series couplings and are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability. The FFC35 has a non-valved bore that increases flow and minimizes turbulence.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Male NPT Thread
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: FDA Buna-N
  • Available in Bags of 10 units
NOTE: A restocking fee of 25% will be charged on returns for Colder FFC35 Series Couplings.



Weight & Dimensions

Length (inches)

2.75

Height (inches)

1.25

Width (inches)

1.25

Weight (lbs)

0.003125

Details

Series

FFC35

Max Temp (°F)

280

Max Pressure (Psi)

125

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Polysulfone

Color / Finish

White

Mounting Options

Thread

Seal Material

FDA Buna-N

Size

1/2"

Spring

316 Stainless Steel

Valve Type

Non-Valved

External Springs And Pin

316 Stainless Steel

Thumb Latch

Polysulfone

Inlet/Outlet Connection

1/2" MPT


FFC10835




The FFC35 Series 1/2" flow couplings feature twice the flow of the HFC35 Series couplings and are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability. The FFC35 has a non-valved bore that increases flow and minimizes turbulence.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Male NPT Thread
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: FDA Buna-N
  • Available in Bags of 10 units
NOTE: A restocking fee of 25% will be charged on returns for Colder FFC35 Series Couplings.


Weight & Dimensions

Length (inches)

2.75

Height (inches)

1.25

Width (inches)

1.25

Weight (lbs)

0.003125

Details

Series

FFC35

Max Temp (°F)

280

Max Pressure (Psi)

125

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Polysulfone

Color / Finish

White

Mounting Options

Thread

Seal Material

FDA Buna-N

Size

1/2"

Spring

316 Stainless Steel

Valve Type

Non-Valved

External Springs And Pin

316 Stainless Steel

Thumb Latch

Polysulfone

Inlet/Outlet Connection

1/2" MPT
